TP-LINK 150Mbps Wireless Lite N PCI Express Adapter, 802.11 n/g/b, Ad-Hoc & Infrastructure, Support 2000, XP, Vista (TL-WN781ND)

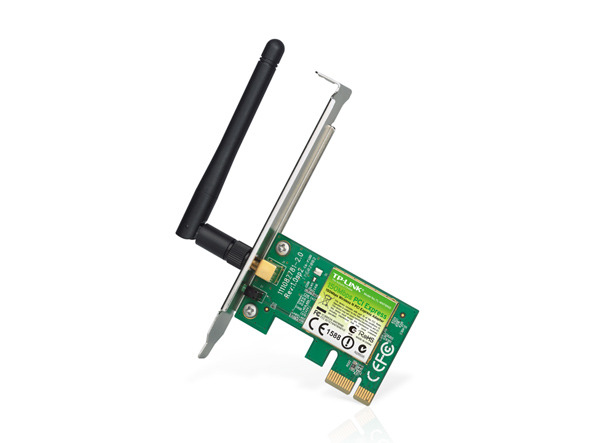

TP-LINK TL-WN781ND 150Mbps Wireless Lite N PCI Express

TP-LINK TL-WN781N is designed to provide a complete end-to-end wireless performance from the server or server backbone to the switch infrastructure and down through to the desktop with the PCI Express connector. TL-WN781N Wireless Lite N PCI Express(x1) Adapter provides a wider compatibility, fitting with any standard PCI Express slot, x1, x4, x8, or x16. Compared with standard PCI network cards, it offers increased bandwidth, reliability and more functionality, allowing you to enjoy a fast and advanced connection, such as downloading, making internet call and video streaming.

(TL-WN781ND)



Software Specification
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Wireless Speed
11n: Up to 150Mbps
11g: Up to 54Mbps
11b: Up to 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power 18dBm(MAX EIRP)
Modulation Type OFDM/CCK/16-QAM/64-QAM
Receiver Sensitivity<BR>(without Standards antenna) 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Work Mode Ad-Hoc
Infrastructure
Wireless Security 64/128 bits WEP
WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
Support Operating System Windows 2000,Windows XP(32/64bits),Windows Vista(32/64bits)
Hardware Specification
Interface PCI Express
Antenna Type Mini-omni, 2dBi
Certifications CE, FCC
Operating Temperature 0oC~40oC (32oF~104oF)
Storage Temperature -40oC~70oC (-40oF~158oF)
Relative Humidity 10% ~ 90%, non-condensing
STORAGE HUMIDITY 5%~90% non-condensing
Dimensions 4.8x 3.1x 0.8 in. (120.8 x 78.5 x 21.5 mm)
SKU TL-WN781ND
Brand TP-Link
Shipping Weight 0.5000kg
Manufacturer Warranty
3 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465
