10/100/1000Mbps networking
The RJ45 interface provides Gigabit Ethernet connectivity without an internal network card.
StarTech __USB-C to Gigabit Ethernet Adapter - Black_ US1GC30B
Model # US1GC30B
-
SKU: US1GC30B
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GC30B

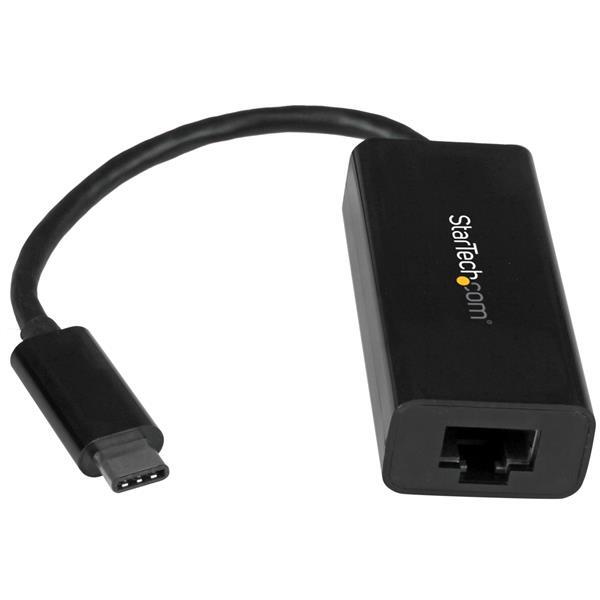

StarTech Black USB-C to Gigabit Ethernet Adapter
Add a 10/100/1000Mbps RJ45 wired network connection to a compatible USB-C or Thunderbolt 3 computer through a compact, USB-powered adapter.
Gigabit Ethernet5Gbps USBBlack finish
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.
USB 3.2 Gen 1 performance
The supplied description lists a 5Gbps USB 3.2 Gen 1 host connection.
Offload support
Checksum offload for IPv4, IPv6, TCP and UDP plus large-send offload are listed in the description.
Native driver support
The Realtek RTL8153 chipset is listed with native driver support in Chrome OS, macOS and Windows.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GC30B add?
It adds one RJ45 Gigabit Ethernet connection through a compatible USB-C or Thunderbolt 3 port.
What network speeds are supported?
The supplied information lists 10/100/1000Mbps Ethernet network speeds.
What USB speed is specified?
The supplied description lists USB 3.2 Gen 1 at 5Gbps; the technical table uses the equivalent USB 3.1 Gen 1 and USB 3.0 naming.
Which offload features are listed?
Checksum offload for IPv4, IPv6, TCP and UDP plus large-send offload are listed.
How is the adapter powered?
It is powered directly from the USB host port.
Which operating systems are listed?
The specification lists selected Windows, Windows Server, Mac OS X, Linux LTS and Chrome OS versions.
What is included in the package?
The package includes one USB-C to Gigabit Ethernet network adapter.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GC30B)
Features and highlights
StarTech US1GC30B
10/100/1000Mbps networking
The RJ45 interface provides Gigabit Ethernet connectivity without an internal network card.
USB 3.2 Gen 1 performance
The supplied description lists a 5Gbps USB 3.2 Gen 1 host connection.
Offload support
Checksum offload for IPv4, IPv6, TCP and UDP plus large-send offload are listed in the description.
Native driver support
The Realtek RTL8153 chipset is listed with native driver support in Chrome OS, macOS and Windows.
- Auto MDIX and full-duplex support
- USB-C or Thunderbolt 3 host connection
- Attached cable and compact plastic enclosure
- USB bus-powered operation
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GC30B specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.1 Gen 1 |
|---|---|
| Chipset ID | Realtek - RTL8153 |
| Industry Standards | IEEE 802.3, 802.3u and 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
Performance
| Auto MDIX | Yes |
|---|---|
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0); 2 Gbps (Ethernet - Full-Duplex) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
Connector(s)

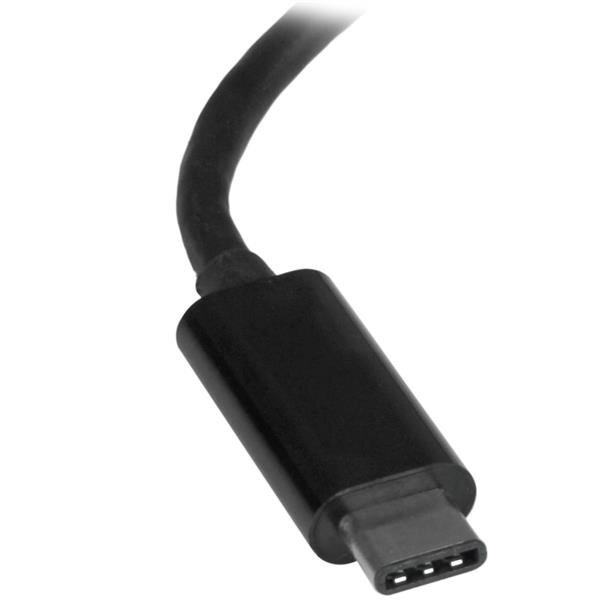

| Connector Type(s) | 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male |
|---|---|

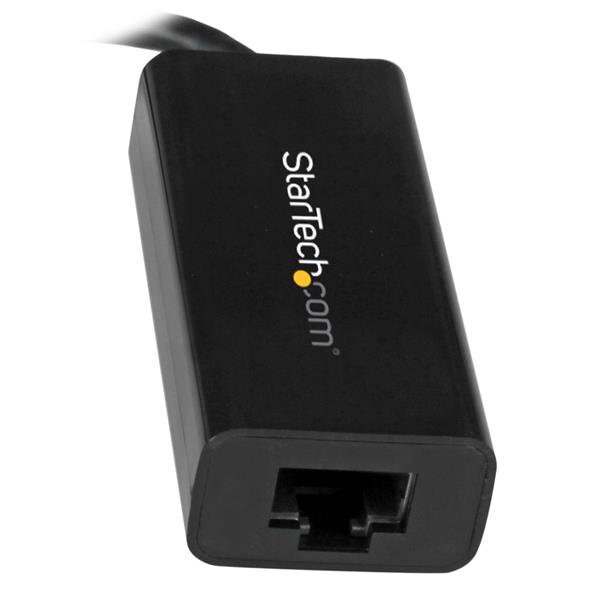

| External Ports | 1 - RJ-45 Female |
Software
| OS Compatibility | Windows¨ XP, Vista, 7, 8, 8.1, 10; Windows Server¨ 2003, 2008 R2, 2012, 2016, 2019; Mac OS X¨ 10.7 to 10.14 VLAN tagging is currently not supported in Mac OS ; Linux Kernel 2.6.25 to 4.11.x LTS Versions only ; ChromeOS |
|---|
Special Notes / Requirements
| System and Cable Requirements | Available USB Type-C port |
|---|
Power
| Power Source | USB-Powered |
|---|
Environmental
| Humidity | 5% ~ 90% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Plastic |
| Form Factor | Attached Cable |
| Product Height | 0.6 in [1.5 cm] |
| Product Length | 8.3 in [21 cm] |
| Product Width | 1 in [25 mm] |
| Weight of Product | 0.8 oz [22 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 5.7 in [14.5 cm] |
| Package Width | 6.7 in [17.1 cm] |
| Shipping (Package) Weight | 3.1 oz [88 g] |
What's in the Box
| Included in Package | 1 - USB-C to GbE network adapter |
|---|
| SKU | US1GC30B |
| Barcode # | 65030862639 |
| Brand | STARTECH |
| Shipping Weight | 0.0900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
