StarTech Quad Port SFP+ Server Network Card, PCIe, Intel XL710 Chip - PEX10GSFP4I

Four-port open-SFP+ PCIe 3.0 x8 server network card with Intel XL710 controller for high-bandwidth and redundant links.

Quick answer: Adds four open 10GbE SFP+ ports through one PCIe 3.0 x8 slot, with 64Gbps of available host bandwidth shared between the ports.

Best forVirtualisation hosts, storage servers, high-performance workstations and fault-tolerant network designs requiring multiple 10GbE links.

Check before orderingSFP+ transceivers or DACs are sold separately. Requires a PCIe x8 or larger slot and supported 64-bit Windows or Linux environment.

Answers before you buy

Frequently asked questions

What does PEX10GSFP4I do?

Adds four open 10GbE SFP+ ports through one PCIe 3.0 x8 slot, with 64Gbps of available host bandwidth shared between the ports.

Who is this product best for?

Virtualisation hosts, storage servers, high-performance workstations and fault-tolerant network designs requiring multiple 10GbE links.

What should I check before ordering?

SFP+ transceivers or DACs are sold separately. Requires a PCIe x8 or larger slot and supported 64-bit Windows or Linux environment.

Does it require drivers or software?

Drivers are provided for supported 64-bit Windows, Windows Server and Linux versions; confirm the deployment OS.

What is included in the package?

Quad-port SFP+ server network card and quick-start guide.

What is the key installation requirement?

Install in a PCIe 3.0 x8 or larger slot and choose compatible SFP+ modules or DACs for each required speed, media and distance.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX10GSFP4I carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX10GSFP4I)

Features & highlights

Why choose PEX10GSFP4I?

?Four open SFP+ slotsBuild flexible multimode, singlemode or direct-attach 10GbE links.

?Intel XL710 controllerServer-class chipset supports demanding network workloads.

?Redundant connectivityMultiple ports enable fault-tolerant and high-availability designs.

?PCIe 3.0 x8Provides up to 64Gbps host bandwidth shared across four ports.

?Advanced networkingSupports full duplex, VLAN tagging, link aggregation and 9K jumbo frames.

?Four link/activity LEDsProvides visible status for each installed network connection.

Compatibility reminder: SFP+ transceivers or DACs are sold separately. Requires a PCIe x8 or larger slot and supported 64-bit Windows or Linux environment.

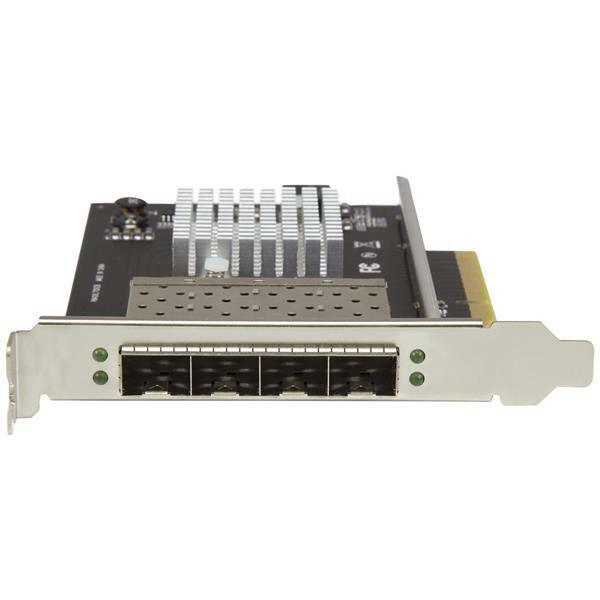

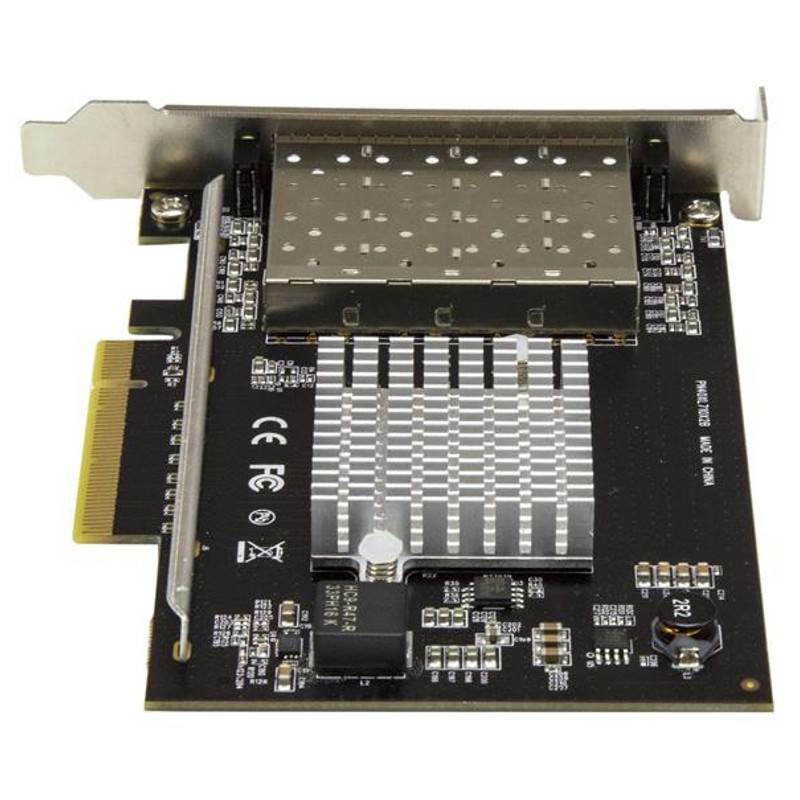

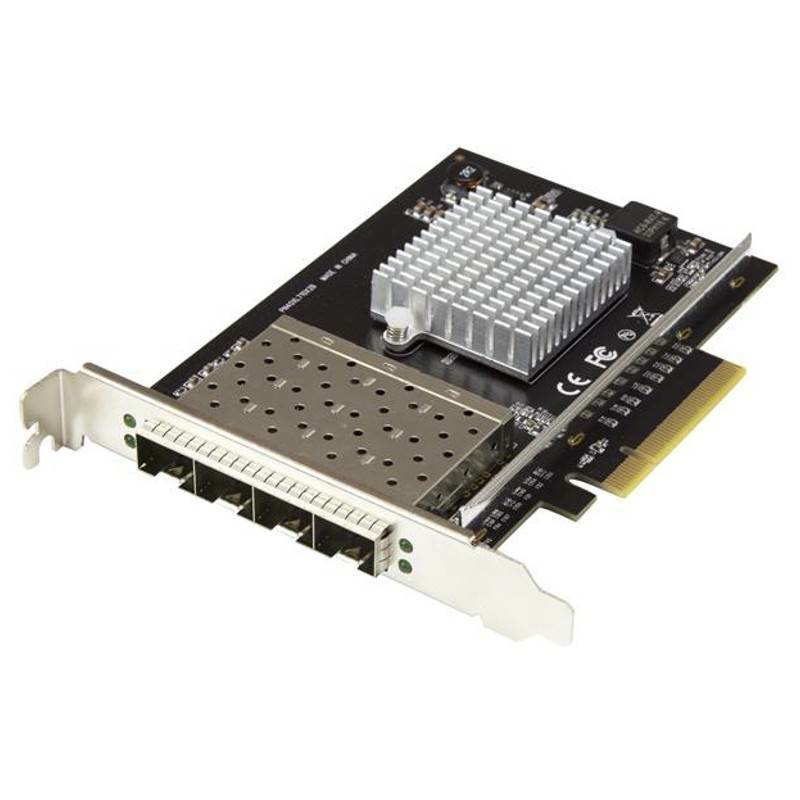

StarTech Quad Port SFP+ Server Network Card, PCIe, Intel XL710 Chip - PEX10GSFP4I product image

Technical specifications

PEX10GSFP4I specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile
Chipset ID	Intel - XL710
Industry Standards	IEEE 802.3ae (10GBASE-LR/SR only); PCI Express Rev 3.0, using PCIe x8 (or higher) slot
Interface	Fiber (10 Gigabit Ethernet)
Ports	4
Performance
Compatible Networks	10 Gbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	20000 Mbps (20 Gbps) - Full-Duplex
Supported Protocols	IEEE 802.3ad (Link Aggregation); IEEE 802.3x (Flow Control Support) ; IEEE 802.1Q (VLAN tagging)
Connector(s)
Connector Type(s)	1 - PCI Express x8 Male
Internal Ports	4 - SFP+ Slot Female
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 ; Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 ; (Windows Drivers are supported in 64-bit only) ; Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2Gbps per lane. PCI Express Gen 2.0 max throughput is 4Gbps per lane. PCI Express Gen 3.0 max throughput is 8Gbps per lane. The available bandwidth (64Gbps) is shared equally between the four ports.
Indicators
LED Indicators	4 - Link/Activity (green)
Environmental
Humidity	20% ~ 80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product Height	3.9 in [10 cm]
Product Length	5.5 in [13.9 cm]
Product Width	0.6 in [15 mm]
Weight of Product	4.3 oz [122 g]
Packaging Information
Package Height	1.2 in [30 mm]
Package Length	6.7 in [17 cm]
Package Width	5.6 in [14.2 cm]
Shipping (Package) Weight	6.4 oz [182 g]
What's in the Box
Included in Package	1 - network card
Additional Items	1 - quick-start guide
