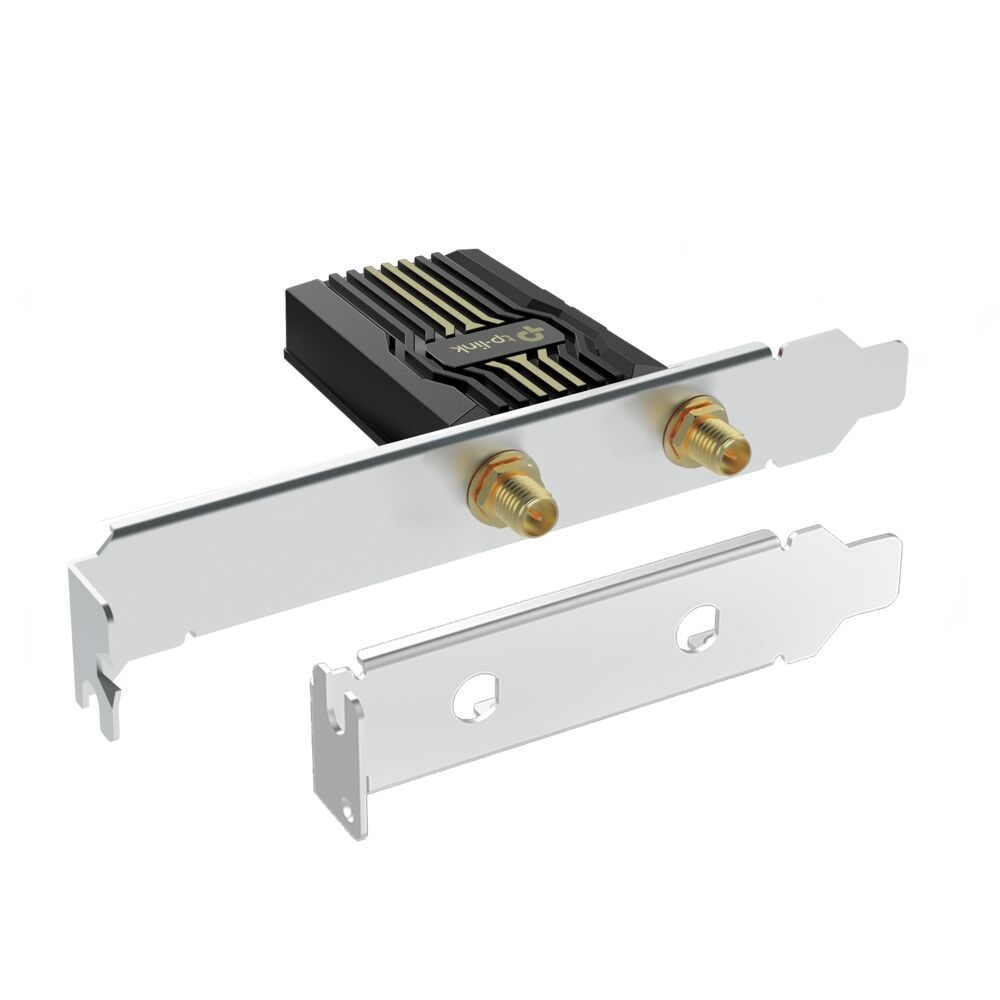

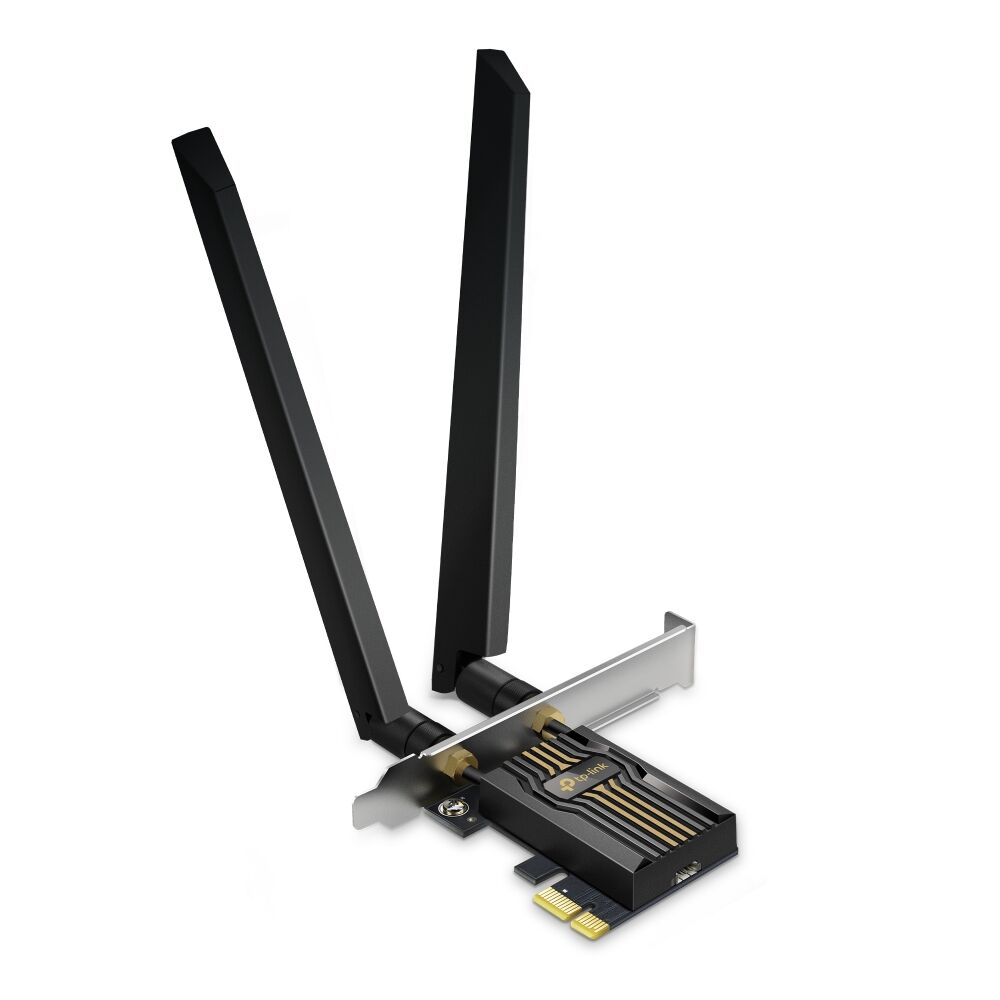

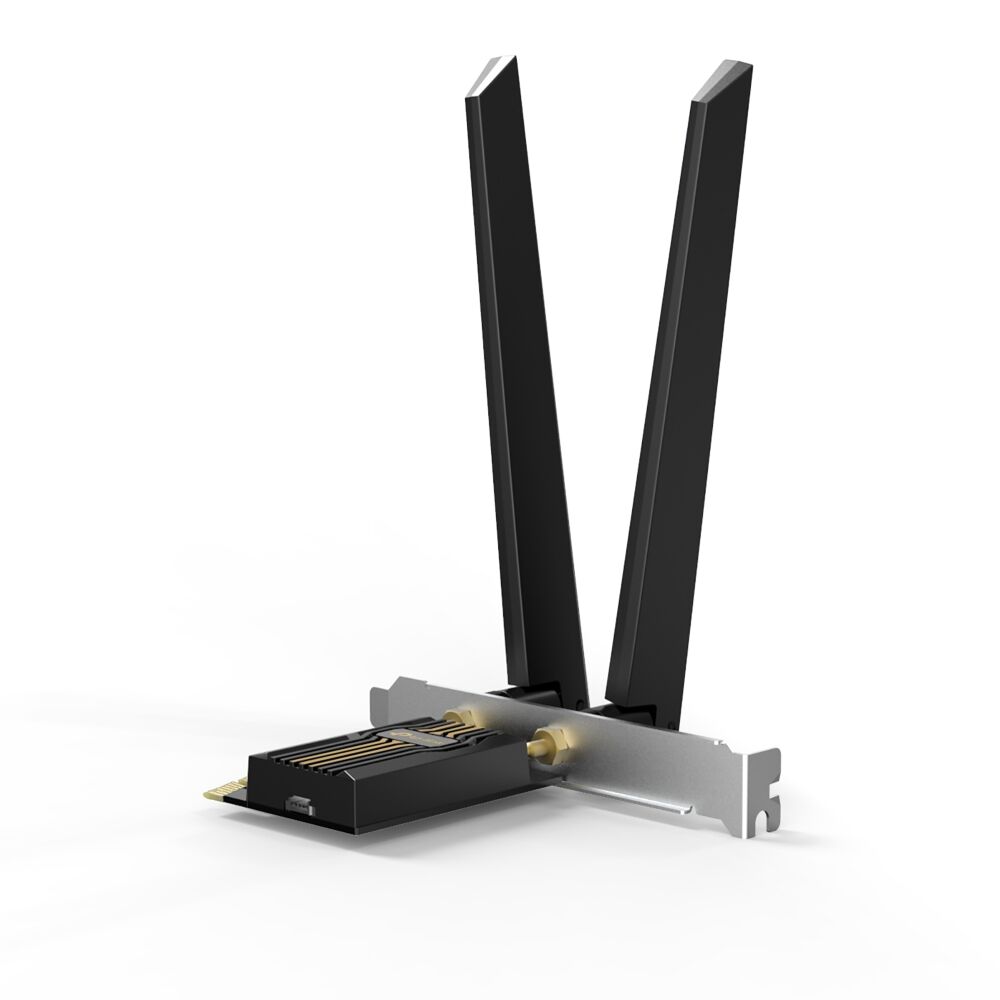

TP-Link Archer TBE552E BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
Model # ARCHER TBE552E
-
SKU: ARCHER-TBE552E
- Pick Up Available
- Australian Warranty
- Checkout Securely
BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 688 Mbps (2.4 GHz)
- WiFi 7 Standard — Unleash the full potential of the 6 GHz band to double the bandwidth of the last generation.
- Wider Signal Coverage — Two multi-directional antennas are designed for optimal signal reception.
- Reliable Bluetooth 5.4 — Security and reliability improvement than last-gen high-speed Bluetooth 5.3
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety.
- Supported Operating System — Windows 11(64-bit) only
(ARCHER-TBE552E)
Hardware Features
| Specification | Details |
|---|---|
| Dimensions (W x D x H) | 3.09 × 4.8 × 0.85 in (78.5×120.8×21.5 mm) |
| Antenna | 2× High-Performance Tri-Band Antennas |
Wireless Features
| Specification | Details |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax/be |
WLAN Signal Rate (Dynamic)
| Band | Standards & Max Speeds |
|---|---|
| 6 GHz | 11be: Up to 5760 Mbps 11ax: Up to 2402 Mbps |
| 5 GHz | 11be: Up to 2880 Mbps 11ax: Up to 2402 Mbps 11ac: Up to 1732 Mbps 11n: Up to 300 Mbps 11a: Up to 54 Mbps |
| 2.4 GHz | 11be: Up to 688 Mbps 11ax: Up to 574 Mbps 11n: Up to 300 Mbps 11g: Up to 54 Mbps 11b: Up to 11 Mbps |
WLAN Reception Sensitivity
| Band | Sensitivity |
|---|---|
| 6 GHz | 11ax HE20 MCS0: -94 dBm 11be EHT320 MCS13: -44 dBm |
| 5 GHz | 11ac VHT20 MCS0: -94 dBm 11be EHT160 MCS13: -48 dBm |
| 2.4 GHz | 11n HT20 MSC0: -95 dBm 11be EHT40 MSC13: -56 dBm |
WLAN Transmit Power (EIRP)
| Band | FCC | CE |
|---|---|---|
| 2.4 GHz | 24 dBm | 20 dBm |
| 5 GHz | 24 dBm | 20 dBm |
| 6 GHz | 20 dBm | 20 dBm |
| WLAN Modes | Infrastructure mode |
|---|---|
| Wireless Security | WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
Others
| Specification | Details |
|---|---|
| Certification | FCC, CE, IC, NCC, JRF, VCCI, BSMI |
| System Requirements | Windows 11 (64-bit) only |
| Environment | Operating Temp: 0℃~40℃ (32℉~104℉) Storage Temp: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Accessories Specs | Bluetooth Header Cable Length: 0.3 m |
Package Content
-
Archer TBE552E
-
2× High-Performance Antennas
-
Low-Profile Bracket
-
Bluetooth Header Cable
-
Quick Installation Guide
-
Resource CD
| SKU | ARCHER-TBE552E |
| Barcode # | 8885020623789 |
| Brand | TP-LINK |
| Shipping Weight | 0.5000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
