StarTech 1 Port PCIe Gigabit NIC Card Low Profile - ST1000SPEX2L
Model # ST1000SPEX2L
-
SKU: ST1000SPEX2L
- Pick Up Available
- Australian Warranty
- Checkout Securely

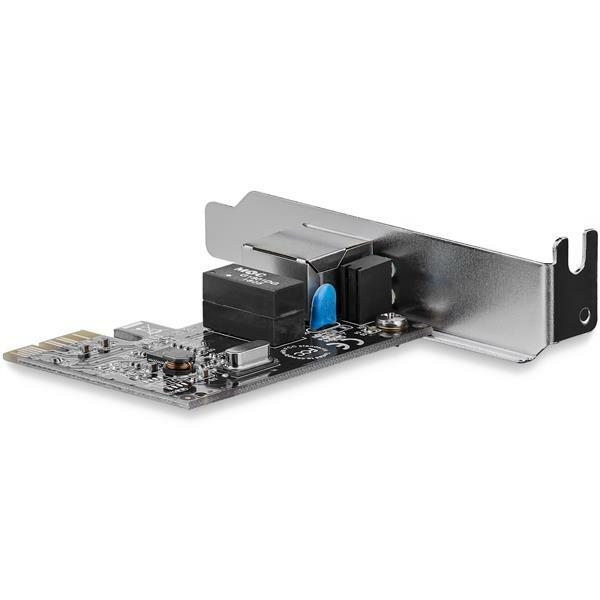

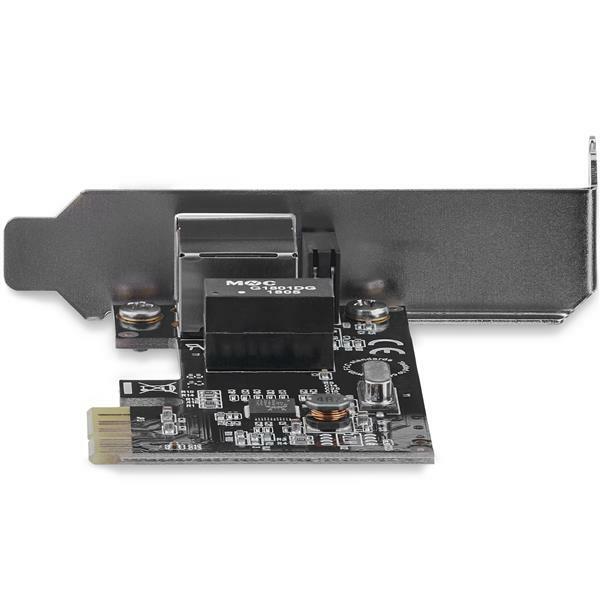

Low-profile 1-port PCIe Gigabit Ethernet network adapter
A low-profile PCI Express Gigabit Ethernet NIC with one 10/100/1000Mbps RJ45 port, Realtek RTL8111H, 9K jumbo frames, VLAN tagging and Wake-on-LAN.
Key capabilities
Low-profile by default
Ships preconfigured for low-profile installation and includes a standard-profile bracket.
Realtek RTL8111H
The supplied exact technical table identifies the Realtek RTL8111H chipset.
Gigabit 10/100/1000Mbps
Provides one auto-negotiating RJ45 Gigabit Ethernet connection.
9K jumbo frames and VLAN
Supports 9K jumbo frames plus VLAN tagging and Wake-on-LAN.
What to know before buying
Requires an available PCI Express slot. The low-profile bracket is preinstalled; a standard-profile bracket is included for alternate chassis installation.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What network speeds does ST1000SPEX2L support?
How many Ethernet ports are provided?
Which chipset is listed?
Is it a low-profile card?
Is a standard-profile bracket included?
Does it support 9K jumbo frames?
Does it support VLAN tagging and Wake-on-LAN?
What warranty applies in Australia?
(ST1000SPEX2L)
Features and highlights
Low-profile by default
Ships preconfigured for low-profile installation and includes a standard-profile bracket.
Realtek RTL8111H
The supplied exact technical table identifies the Realtek RTL8111H chipset.
Gigabit 10/100/1000Mbps
Provides one auto-negotiating RJ45 Gigabit Ethernet connection.
9K jumbo frames and VLAN
Supports 9K jumbo frames plus VLAN tagging and Wake-on-LAN.
- Low-profile PCIe
- 1 × Gigabit RJ45
- 9K jumbo + VLAN + WOL
- 2-year warranty
Specifications
Verified specifications for StarTech ST1000SPEX2L.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | PCI Express |
|---|---|
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | Realtek - RTL8111H |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
Performance
| Auto MDIX | Yes |
|---|---|
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| Supported Protocols | CSMA/CD |
Connector(s)
| Connector Type(s) | 1 - PCI Express x1 |
|---|---|
| External Ports | 1 - RJ-45 |
Software
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x to 4.11.x LTS Versions Only |
|---|
Special Notes / Requirements
| System and Cable Requirements | Available PCI Express expansion card slot |
|---|

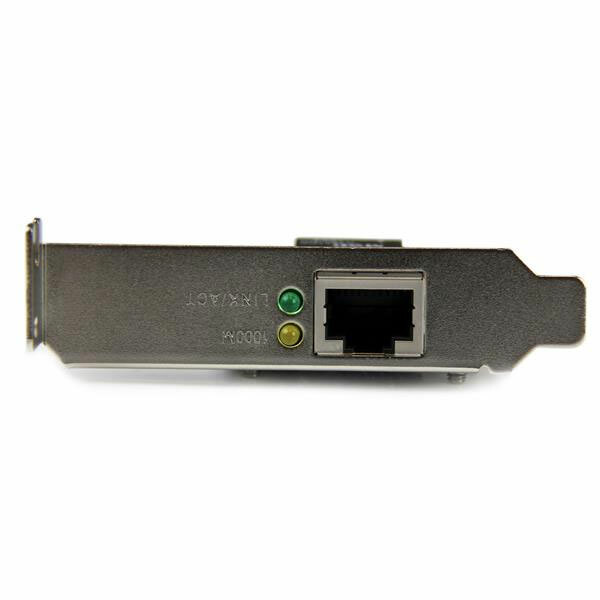

Indicators
| LED Indicators | 1 - Gigabit Detect (Yellow) |
|---|---|
| LED Indicators | 1 - Link/Activity (Green) |
Environmental
| Humidity | 10% ~ 90% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) |
Physical Characteristics
| Product Height | 1.9 in [4.9 cm] |
|---|---|
| Product Length | 2.8 in [70 mm] |
| Product Width | 0.7 in [18 mm] |
| Weight of Product | 1 oz [27 g] |
Packaging Information
| Package Height | 1.2 in [31 mm] |
|---|---|
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 6.8 in [17.3 cm] |
| Shipping (Package) Weight | 4.4 oz [125 g] |
What's in the Box
| Included in Package | 1 - Gigabit Ethernet PCI Express Card |
|---|---|
| Included in Package | 1 - Standard Profile Bracket |
| Included in Package | 1 - Driver CD |
| Included in Package | 1 - Instruction Manual |
| SKU | ST1000SPEX2L |
| Barcode # | 65030852265 |
| Brand | Startech |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
