StarTech.com · PEX20000SFPI

StarTech 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip PEX20000SFPI

Dual-port open-SFP+ 10 Gigabit PCIe x8 network card with Intel 82599 controller for servers and high-performance workstations.

Quick answer: Adds two open SFP+ ports, each supporting 10GbE connectivity, for flexible fibre or direct-attach network deployment.

Best forServers, storage systems, virtualisation hosts and media workstations needing high-bandwidth, redundant or aggregated 10GbE links.

Check before orderingSFP+ transceivers or DACs are sold separately. Confirm module compatibility, PCIe x8 slot availability and supported 64-bit operating system.

Answers before you buy

Frequently asked questions

What does PEX20000SFPI do?

Adds two open SFP+ ports, each supporting 10GbE connectivity, for flexible fibre or direct-attach network deployment.

Who is this product best for?

Servers, storage systems, virtualisation hosts and media workstations needing high-bandwidth, redundant or aggregated 10GbE links.

What should I check before ordering?

SFP+ transceivers or DACs are sold separately. Confirm module compatibility, PCIe x8 slot availability and supported 64-bit operating system.

Does it require drivers or software?

Drivers support the listed 64-bit Windows, Windows Server and Linux versions; verify the deployment OS and Intel teaming requirements.

What is included in the package?

Dual-port 10GbE network card, low-profile bracket and quick-install guide.

What is the key installation requirement?

Install in a PCIe x8 or larger slot and select compatible SFP+ modules or DACs for the required media, connector and distance.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEX20000SFPI carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEX20000SFPI)

Features & highlights

Why choose PEX20000SFPI?

?Two open SFP+ slotsChoose compatible fibre transceivers or direct-attach cables for each link.

?10Gbps per portSupports up to 20Gbps full-duplex bandwidth per port.

?Intel 82599 controllerProvides server-class network and virtualisation capabilities.

?Redundancy and aggregationTwo ports support resilient or combined network designs in compatible environments.

?Managed-network featuresSupports VLAN tagging, flow control, link aggregation and 9K jumbo frames.

?Dual-profile installationStandard bracket fitted with low-profile bracket included.

Compatibility reminder: SFP+ transceivers or DACs are sold separately. Confirm module compatibility, PCIe x8 slot availability and supported 64-bit operating system.

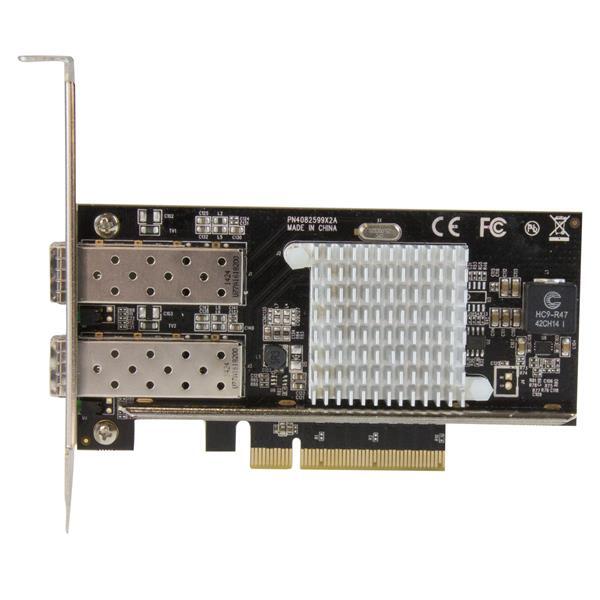

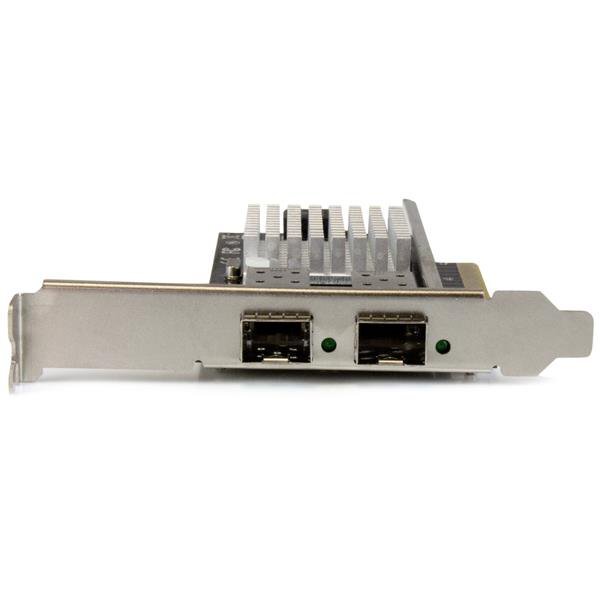

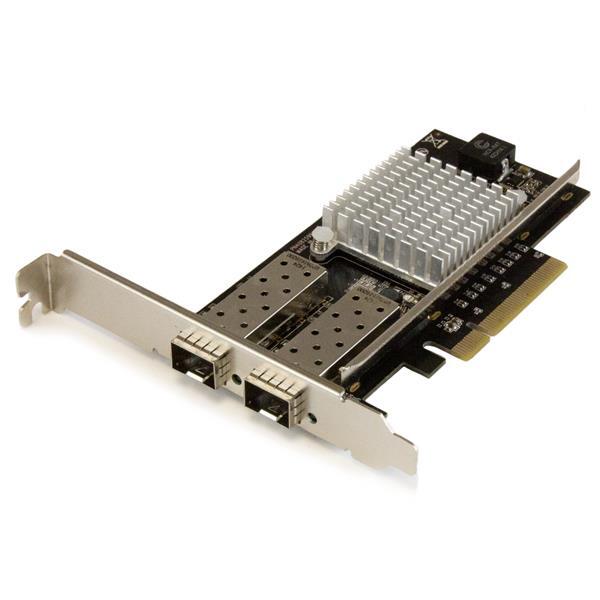

StarTech 2-Port 10G Fiber Network Card with Open SFP+ - PCIe, Intel Chip PEX20000SFPI product image

Technical specifications

PEX20000SFPI specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Intel - 82599
Industry Standards	IEEE 802.3ae (10GBASE-LR/SR only), IEEE 802.3aq (10GBASE-LRM); PCI Express Rev 2.0, using PCIe x8 (or higher) slot
Interface	Fiber (10 Gigabit Ethernet)
Ports	2
Performance
Compatible Networks	10 Gbps
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	20000 Mbps (20 Gbps) - Full-Duplex
Promiscuous Mode	Yes
Supported Protocols	IEEE 802.3ad (Link Aggregation); IEEE 802.3x (2005 Flow Control Support) ; IEEE 802.1Q (VLAN tagging)
Connector(s)
Connector Type(s)	1 - PCI Express x8 Male
Internal Ports	2 - SFP+ Slot Female
Software
OS Compatibility	Windows¨ 7, 8, 8.1, 10; Windows Server¨ 2008 R2, 2012, 2012 R2, 2016, 2019; (Windows Drivers are supported in 64-bit only) ; Linux 2.6.24 to 4.11.x LTS Versions only
Environmental
Humidity	20% ~ 80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Color	Black
Product Height	4.7 in [12 cm]
Product Length	5.3 in [13.5 cm]
Product Width	0.7 in [18 mm]
Weight of Product	3.6 oz [102 g]
Packaging Information
Package Height	1.2 in [30 mm]
Package Length	6.7 in [17 cm]
Package Width	5.6 in [14.3 cm]
Shipping (Package) Weight	6.3 oz [178 g]
What's in the Box
Included in Package	1 - PCIe 10GBase Fiber Card
Additional Items	1 - low-profile bracket; 1 - quick-install guide
