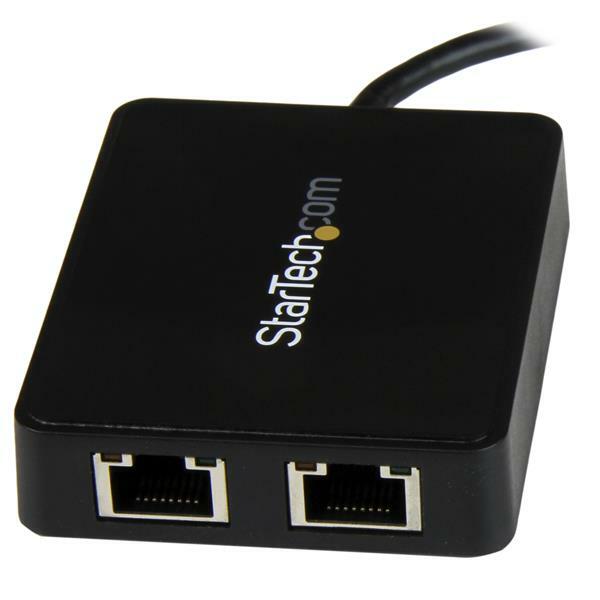

Two GbE ports
Two RJ45 ports provide dual wired network connectivity from one compatible USB-C host connection.
StarTech Dual USB Type-C to GbE Adapter with USB port - US1GC301AU2R
Model # US1GC301AU2R
-
SKU: US1GC301AU2R
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GC301AU2R
StarTech Dual-Port USB-C Gigabit Ethernet Adapter with USB-A
Add two 10/100/1000Mbps wired network connections and one USB Type-A peripheral port through a compatible USB-C or Thunderbolt 3 host port.
Dual Gigabit EthernetUSB-A pass-throughUSB-powered
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.

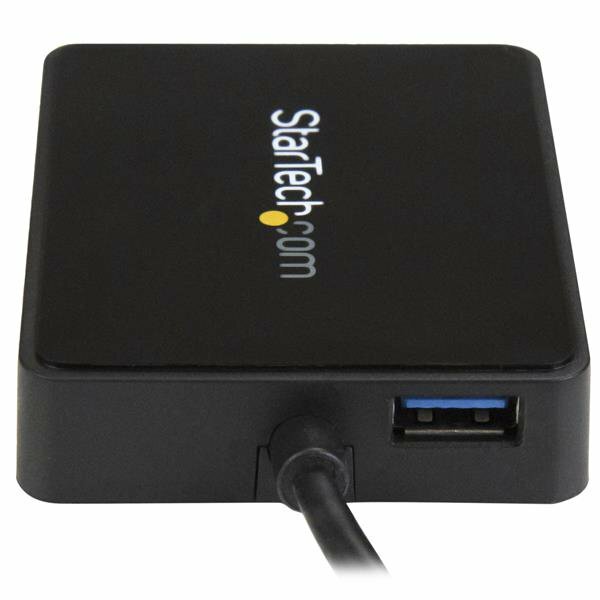

USB Type-A connectivity
An integrated USB 3.0 Type-A port supports an additional compatible peripheral and is backward compatible with USB 2.0 systems.
Network management features
Wake-on-LAN, VLAN tagging, Auto MDIX, checksum offload and large-send offload are listed in the supplied information.
Native driver support
The supplied information lists native driver support for Chrome OS and Windows 8.1, with Mac OS X 10.10 supported through driver installation.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GC301AU2R add to a computer?
It adds two RJ45 Gigabit Ethernet ports and one USB Type-A peripheral port through a compatible USB-C or Thunderbolt 3 connection.
What network speeds are supported?
The supplied specifications list 10/100/1000Mbps networks, with up to 2Gbps Ethernet bandwidth in full-duplex mode.
What host connection does the adapter use?
It connects through an available USB Type-C port and uses USB 3.0 at up to 5Gbps.
Which network features are listed?
The supplied information lists Wake-on-LAN, VLAN tagging, Auto MDIX, checksum offload and large-send offload.
How is the adapter powered?
It is powered through USB and does not list a separate external power adapter.
Is VLAN tagging supported in Mac OS?
No. The supplied specifications state that VLAN tagging is currently not supported in Mac OS.
What is included in the package?
The package includes one USB-C to dual Gigabit Ethernet adapter.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GC301AU2R)
Features and highlights
StarTech US1GC301AU2R
Two GbE ports
Two RJ45 ports provide dual wired network connectivity from one compatible USB-C host connection.
USB Type-A connectivity
An integrated USB 3.0 Type-A port supports an additional compatible peripheral and is backward compatible with USB 2.0 systems.
Network management features
Wake-on-LAN, VLAN tagging, Auto MDIX, checksum offload and large-send offload are listed in the supplied information.
Native driver support
The supplied information lists native driver support for Chrome OS and Windows 8.1, with Mac OS X 10.10 supported through driver installation.
- 10/100/1000Mbps compatible networks
- 5Gbps USB bandwidth and up to 2Gbps Ethernet full-duplex bandwidth
- 4K maximum jumbo-frame support
- Four link/activity LED indicators
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GC301AU2R specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | USB 3.0 |
|---|---|
| Chipset ID | VIA/VLI - VL812 ; ASIX - AX88179 |
| Industry Standards | IEEE 802.3, 802.3u and 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 2 |
| USB Pass-Through | Yes |
Performance
| Auto MDIX | Yes |
|---|---|
| Bandwidth | 5 Gbps (USB 3.0); 2 Gbps (Ethernet - Full-Duplex) |
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 4K max. |
| Maximum Cable Length | 0.3 ft [0.1 m] |
| Maximum Data Transfer Rate | 5 Gbps (USB 3.0); 2 Gbps (Ethernet - Full-Duplex) |
| Type and Rate | USB 3.0 - 5 Gbit/s |
Connector(s)
| Connector Type(s) | 1 - USB 3.0 A (Fast-Charge, 9 pin); 1 - USB Type-C (24 pin) USB 3.0 (5Gbps) |
|---|---|
| External Ports | 2 - RJ-45 Female |
Software
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10; Windows Server® 2003, 2008 R2, 2012, 2016, 2019; Mac OS® 10.6 to 10.14 VLAN tagging is currently not supported in Mac OS ; Linux Kernel 2.6.25 to 4.11.x LTS Versions only |
|---|
Special Notes / Requirements
| System and Cable Requirements | Available USB Type-C port |
|---|
Indicators
| LED Indicators | 4 - 2x Gigabit Link/Activity 2x 10/100 Link/Activity |
|---|
Power
| Power Source | USB-Powered |
|---|
Environmental
| Humidity | 20%~80% |
|---|---|
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
Physical Characteristics
| Color | Black |
|---|---|
| Enclosure Type | Plastic |
| Form Factor | Attached Cable |
| Product Height | 0.6 in [1.6 cm] |
| Product Length | 3 in [75 mm] |
| Product Width | 2.4 in [60 mm] |
| Weight of Product | 1.9 oz [54 g] |
Packaging Information
| Package Height | 1.2 in [30 mm] |
|---|---|
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 6.8 in [17.2 cm] |
| Shipping (Package) Weight | 4 oz [112 g] |
What's in the Box
| Included in Package | 1 - USB-C to dual Gigabit Ethernet adapter |
|---|
| SKU | US1GC301AU2R |
| Barcode # | 65030862813 |
| Brand | STARTECH |
| Shipping Weight | 0.1100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
