StarTech PCIe Gigabit Network Server Adapter NIC - ST1000SPEX2
Model # ST1000SPEX2
-
SKU: ST1000SPEX2
Stock Availability
🟢Live
Allow 1–2 business days for stock transfer
- Pick Up Available
- Australian Warranty
- Checkout Securely

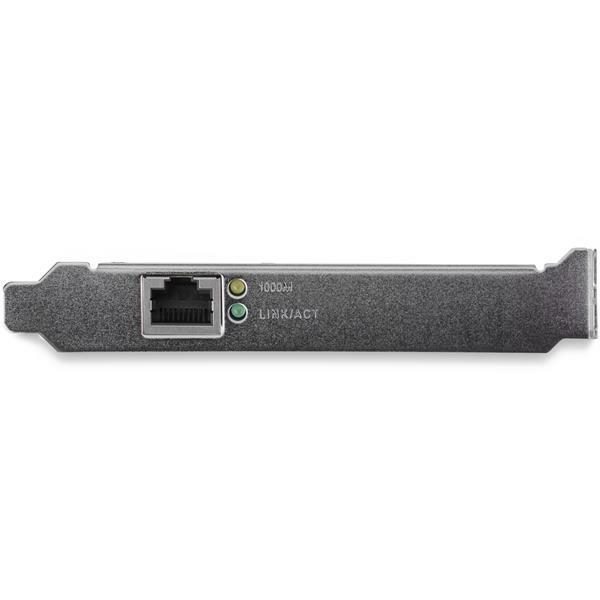

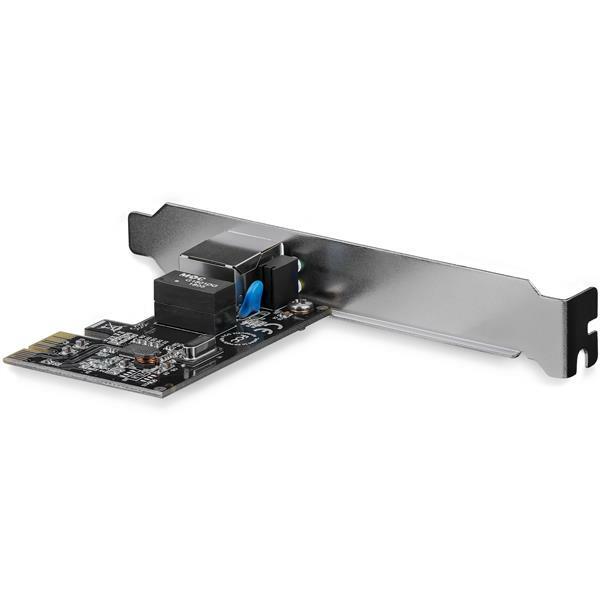

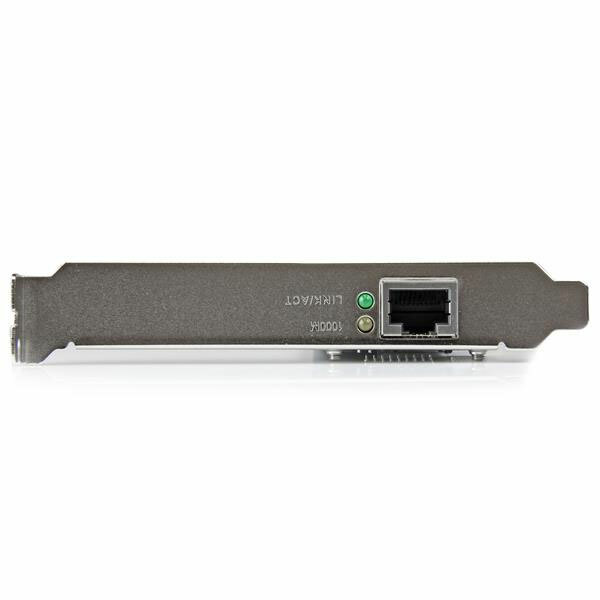

1-port PCIe Gigabit Ethernet network adapter with dual-profile brackets
A single-port PCI Express Gigabit Ethernet NIC with 10/100/1000Mbps RJ45, Realtek RTL8111H, 9K jumbo frames, VLAN tagging and Wake-on-LAN.
Key capabilities
Gigabit Ethernet upgrade
Adds one 10/100/1000Mbps RJ45 network port to a compatible PCI Express system.
Realtek RTL8111H
The supplied exact technical table identifies the Realtek RTL8111H controller.
9K jumbo frames and VLAN
Supports up to 9K jumbo frames and IEEE 802.1Q VLAN tagging.

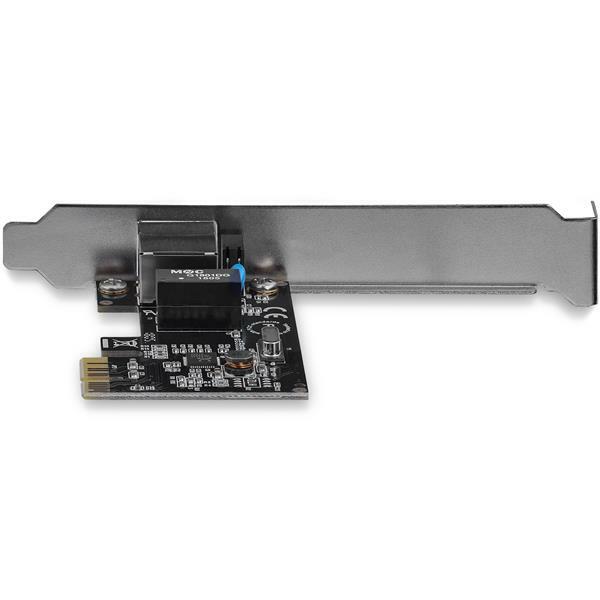

Dual-profile installation
Standard and low-profile brackets support a wider range of desktop/server chassis.
What to know before buying
Requires an available PCI Express expansion-card slot. Current OS/driver support should be checked against StarTech's current support resources if deploying on a newer operating system than the supplied legacy compatibility table.
Australian version and manufacturer warranty
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
What network speeds does ST1000SPEX2 support?
How many Ethernet ports are provided?
Which chipset is listed?
Does it support jumbo frames?
Does it support VLAN tagging?
Does it support Wake-on-LAN?
Are both bracket sizes included?
What warranty applies in Australia?
(ST1000SPEX2)
Features and highlights
Gigabit Ethernet upgrade
Adds one 10/100/1000Mbps RJ45 network port to a compatible PCI Express system.
Realtek RTL8111H
The supplied exact technical table identifies the Realtek RTL8111H controller.
9K jumbo frames and VLAN
Supports up to 9K jumbo frames and IEEE 802.1Q VLAN tagging.
Dual-profile installation
Standard and low-profile brackets support a wider range of desktop/server chassis.
- 1 × Gigabit RJ45
- PCIe x1
- 9K jumbo + VLAN + WOL
- 2-year warranty
Specifications
Verified specifications for StarTech ST1000SPEX2.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Bus Type | PCI Express |
|---|---|
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8111H |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab |
| Interface | RJ45 (Gigabit Ethernet) |
| Ports | 1 |
Performance
| Auto MDIX | Yes |
|---|---|
| Compatible Networks | 10/100/1000 Mbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 1000 Mbps |
| MTBF | 376,212 Hours |
| Promiscuous Mode | Yes |
| Supported Protocols | CSMA/CD |
Connector(s)
| Connector Type(s) | 1 - PCI Express x1 Male |
|---|---|
| External Ports | 1 - RJ-45 Female |
Software
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.6 to 10.9 Linux 2.4.x to 4.11.x LTS Versions Only |
|---|
Special Notes / Requirements
| System and Cable Requirements | Available PCI Express expansion card slot |
|---|
Indicators
| LED Indicators | 1 - Gigabit Detect (Yellow) |
|---|---|
| LED Indicators | 1 - Link/Activity (Green) |
Environmental
| Humidity | 10% ~ 90% RH |
|---|---|
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | 0°C to 100°C (32°F to 212°F) |
Physical Characteristics
| Product Height | 0.7 in [1.8 cm] |
|---|---|
| Product Length | 2.7 in [67.9 mm] |
| Product Width | 4.7 in [12 cm] |
| Weight of Product | 1.3 oz [38 g] |
Packaging Information
| Package Height | 1.3 in [32 mm] |
|---|---|
| Package Length | 6.7 in [17.1 cm] |
| Package Width | 5.6 in [14.2 cm] |
| Shipping (Package) Weight | 4.4 oz [126 g] |
What's in the Box
| Included in Package | 1 - Gigabit Ethernet PCI Express Card |
|---|---|
| Included in Package | 1 - Low Profile Bracket |
| Included in Package | 1 - Driver CD |
| Included in Package | 1 - Instruction Manual |
| SKU | ST1000SPEX2 |
| Barcode # | 65030849265 |
| Brand | Startech |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.160m |
| Shipping Cubic | 0.000800000m3 |
StarTech.com warranty in Australia
This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.
Please retain your DeviceDeal tax invoice as proof of purchase.
Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
