StarTech.com ST4000SPEXI

4-port Gigabit PCIe server NIC with Intel I350-AM4

Add four independent Gigabit Ethernet ports through one PCIe x4 slot with the Intel I350-AM4 chipset, 9K jumbo frames, VLAN tagging and link-aggregation support.

4 × Gigabit RJ45Intel I350-AM4PCIe x42-year warranty

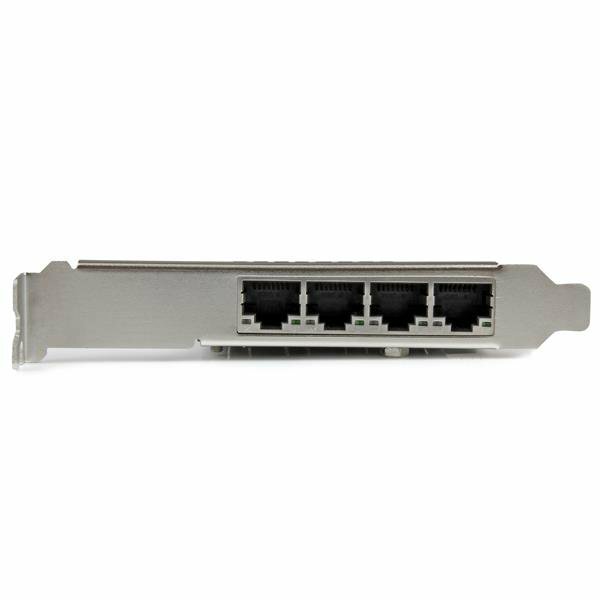

StarTech ST4000SPEXI four-port Intel I350 Gigabit PCIe network card

Key capabilities

Intel I350-AM4 chipset

Designed around Intel's I350-AM4 controller for four-channel Gigabit networking.

Four independent GbE ports

Supports 10/100/1000Mbps auto-negotiation on each RJ45 connection.

9K jumbo frames

Supports larger Ethernet frames for compatible high-throughput environments.

Link aggregation and VLAN

Supports IEEE 802.3ad link aggregation and IEEE 802.1Q VLAN tagging.

What to know before buying

The host requires a PCI Express x4 or higher slot. Link aggregation, VLANs and other advanced features also depend on compatible drivers, operating systems and network infrastructure.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many Ethernet ports does ST4000SPEXI provide?

Four RJ45 Gigabit Ethernet ports.

Which chipset does it use?

Intel I350-AM4.

What Ethernet speeds are supported?

10/100/1000Mbps.

What PCIe slot is required?

PCI Express x4 or higher.

Does it support jumbo frames?

Yes, up to 9K.

Does it support link aggregation?

Yes, IEEE 802.3ad is listed.

Is a low-profile bracket included?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST4000SPEXI)

Features and highlights

Intel I350-AM4 chipset

Designed around Intel's I350-AM4 controller for four-channel Gigabit networking.

Four independent GbE ports

Supports 10/100/1000Mbps auto-negotiation on each RJ45 connection.

9K jumbo frames

Supports larger Ethernet frames for compatible high-throughput environments.

Link aggregation and VLAN

Supports IEEE 802.3ad link aggregation and IEEE 802.1Q VLAN tagging.

4 × Gigabit RJ45
Intel I350-AM4
PCIe x4
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST4000SPEXI.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Intel - I350-AM4
Industry Standards	IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
Industry Standards	IEEE 802.1Q VLAN Tagging
Industry Standards	IEEE 802.3x Full Duplex Flow Control
Ports	4

Performance

Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
Maximum Data Transfer Rate	2000 Mbps (full-duplex)
Supported Protocols	IEEE 802.3ad (link aggregation), IEEE 1588 (time sync)

Connector(s)

Connector Type(s)	1 - PCI Express x4
Connector Type(s)	4 - RJ-45

Software

OS Compatibility	Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS versions only

Special Notes / Requirements

System and Cable Requirements	Available PCI Express x4 or higher (x8, x16) slot

Indicators

LED Indicators	4 - 100/1000 Mbps Indicator
LED Indicators	4 - Link/Activity

Power

Power Consumption (In Watts)	4.4W

Environmental

Humidity	20% ~ 80% RH
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)

Physical Characteristics

Color	Black
Product Height	4.7 in [12 cm]
Product Length	5.2 in [13.2 cm]
Product Width	0.7 in [18 mm]
Weight of Product	3.2 oz [90 g]

Packaging Information

Package Height	1.2 in [31 mm]
Package Length	5.6 in [14.3 cm]
Package Width	6.7 in [17.1 cm]
Shipping (Package) Weight	5.7 oz [162 g]

What's in the Box

Included in Package	1 - 4 Port Network Card
Included in Package	1 - Low Profile Bracket
Included in Package	1 - Instruction Manual
