StarTech.com · PR12GIP-NETWORK-CARD

StarTech PR12GIP-NETWORK-CARD 1-Port 2.5Gbps PoE Network PCIe Card

Single-port 2.5GbE PCIe network card with Intel I225-V controller and IEEE 802.3af/at PoE+ power output.

Quick answer: Adds one 2.5GBASE-T RJ45 port and can supply up to 30W PSE power to a compatible PoE or PoE+ device over the network cable.

Best forDesktops and servers connecting and powering a compatible IP camera, access point, VoIP phone, RFID reader or remote kiosk.

Check before orderingRequires a PCIe x1 or larger slot and SATA power for PoE output. Confirm the powered device supports IEEE 802.3af or 802.3at and stays within the power budget.

Answers before you buy

Frequently asked questions

What does PR12GIP-NETWORK-CARD do?

Adds one 2.5GBASE-T RJ45 port and can supply up to 30W PSE power to a compatible PoE or PoE+ device over the network cable.

Who is this product best for?

Desktops and servers connecting and powering a compatible IP camera, access point, VoIP phone, RFID reader or remote kiosk.

What should I check before ordering?

Requires a PCIe x1 or larger slot and SATA power for PoE output. Confirm the powered device supports IEEE 802.3af or 802.3at and stays within the power budget.

Does it require drivers or software?

Compatible with the listed Windows, Windows Server and Linux versions. Install the official StarTech driver where required; NIC teaming is Windows Server-only.

What is included in the package?

2.5GbE PoE+ PCIe network card, low-profile bracket and quick-start guide.

What is the key installation requirement?

Install in a PCIe x1 or larger slot, connect the SATA power lead for PoE, fit the appropriate bracket and connect Cat5e or better cabling.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PR12GIP-NETWORK-CARD carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PR12GIP-NETWORK-CARD)

Features & highlights

Why choose PR12GIP-NETWORK-CARD?

?2.5GBASE-T EthernetAdds one multi-gigabit RJ45 port with 2.5G, 1G, 100M and 10M auto-negotiation.

?Integrated PoE+ PSESupplies up to 30W from the card and up to 25.5W to a compliant powered device.

?Intel I225-V controllerSupports dependable networking with Intel vPro management capabilities.

?Existing Cat5e cablingReuses qualifying Cat5e, Cat6 or better network infrastructure for up to 2.5Gbps.

?Advanced network featuresSupports PXE boot, Wake on LAN, VLAN tagging, full duplex and 9K jumbo frames.

?Dual-profile installationStandard bracket is fitted and a low-profile bracket is included for compact systems.

Compatibility reminder: Requires a PCIe x1 or larger slot and SATA power for PoE output. Confirm the powered device supports IEEE 802.3af or 802.3at and stays within the power budget.

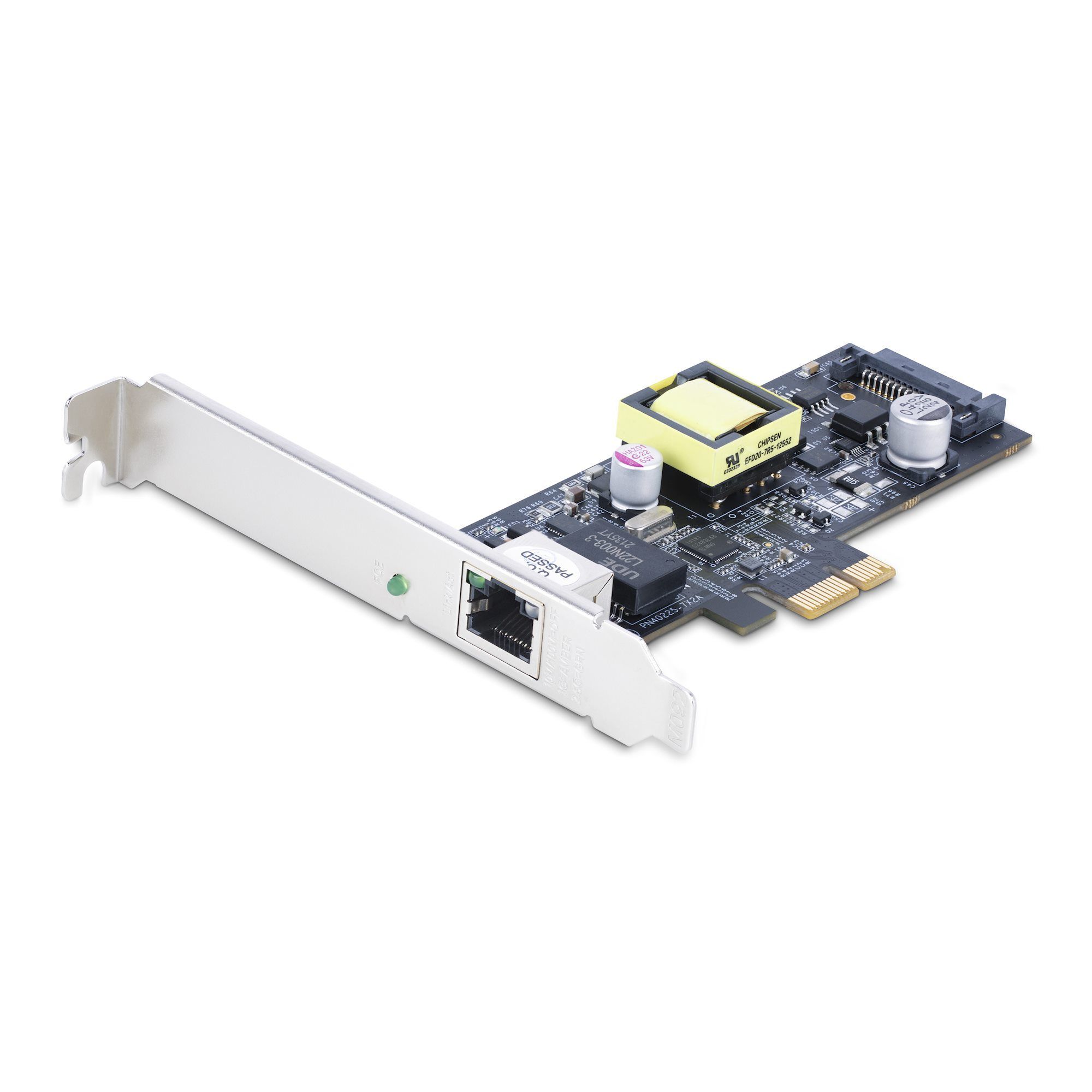

StarTech PR12GIP-NETWORK-CARD 1-Port 2.5Gbps PoE Network PCIe Card product image

Technical specifications

PR12GIP-NETWORK-CARD specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Connector(s)
Host Connector	1 - PCI Express x1
Internal Power	1 - SATA Power (15 pin)
External Port	1 - RJ-45 (PoE+)
Hardware
Ports	1
Interface	RJ45 (2.5G Ethernet)
Bus Type	PCI Express
PCI Express Version	2.0
Card Type	Standard Profile (low-profile bracket included)
Chipset ID	Intel I225-V
Industry Standards
Ethernet and PoE	IEEE 802.3at PoE+; IEEE 802.3af PoE; IEEE 802.3bz 2.5GBASE-T; IEEE 802.3ab 1000BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3i 10BASE-T
Network Management	IEEE 802.1Q VLAN; IEEE 802.1p QoS; IEEE 802.1AS AVB; IEEE 802.1X WoL; IEEE 802.3az EEE; IEEE 1588 PTP
Performance
Maximum Data Transfer Rate	2.5Gbps
Compatible Networks	2.5G/1G/100Mbps/10Mbps
PoE Output	Up to 30W PSE; up to 25.5W at the powered device; 48V DC
Wake on LAN	Yes
PXE Boot	Yes
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K maximum
Promiscuous Mode	Yes
Indicators
Left LED	Link status and activity
Right LED	Link speed: green for 2.5Gbps, amber for 1Gbps, off for 100/10Mbps
Software
OS Compatibility	Windows 10 and 11; Windows Server 2019 and 2022; Linux 5.8.x and later LTS versions
NIC Teaming Note	Intel NIC Teaming is supported on Windows Server operating systems, not Windows 10 or 11 desktop editions
Environmental
Operating Temperature	0°C to 55°C
Storage Temperature	-10°C to 70°C
Humidity	5% to 90% RH
Physical Characteristics
Colour	Black
Dimensions	11.9 x 5.4 x 1.6cm
Product Weight	62g
What's in the Box
Included	1 - 2.5GbE PoE+ network card; 1 - low-profile bracket; 1 - quick-start guide

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PR12GIP-NETWORK-CARD
Barcode #	65030903493
Brand	STARTECH
Shipping Weight	0.1500kg
Shipping Width	0.004m
Shipping Height	0.021m
Shipping Length	0.015m
