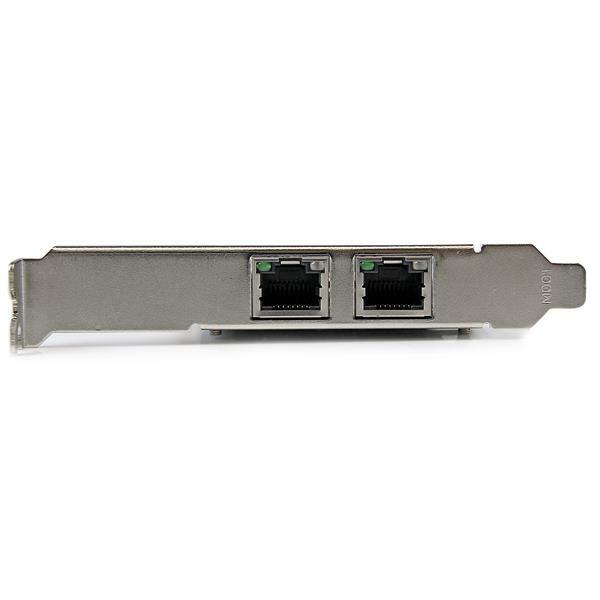

StarTech Dual Port Gigabit PCIe Network Card - ST2000SPEXI
Model # ST2000SPEXI
-
SKU: ST2000SPEXI
- Pick Up Available
- Australian Warranty
- Checkout Securely
The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

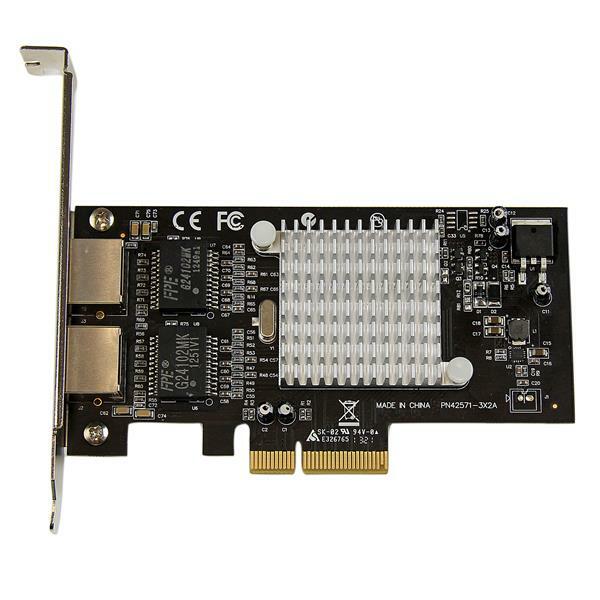

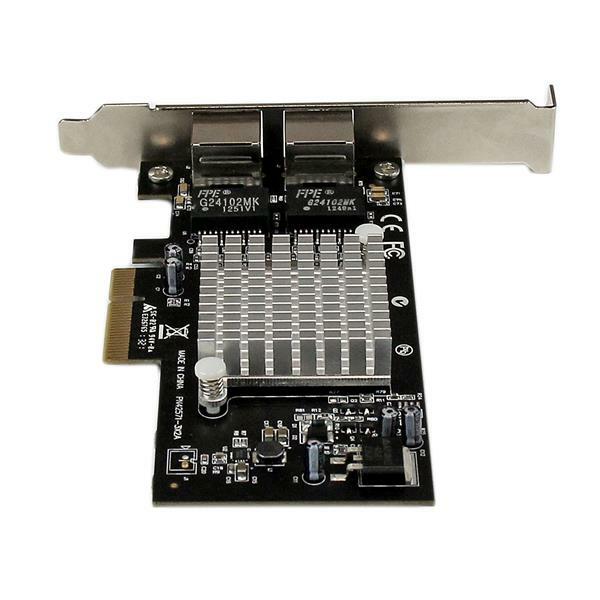

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.
Also useful for virtualization applications (check your VM software for chipset compatibility) or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(ST2000SPEXI)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | Intel - I350-AM2 | |
| Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab | |
| PCI Express Base Specification 2.1 | ||
| Interface | RJ45 (Gigabit Ethernet) | |
| Port Style | Integrated on Card | |
| Ports | 2 | |
| Performance | ||
| Auto MDIX | Yes | |
| Compatible Networks | 10/100/1000 Mbps | |
| Full Duplex Support | Yes | |
| Jumbo Frame Support | 9K max. | |
| Maximum Data Transfer Rate | 2000 Mbps (full-duplex), 1000 Mbps (half-duplex) | |
| MTBF | 432,400 hours | |
| Promiscuous Mode | Yes | |
| Supported Protocols | IEEE 802.3ad (link aggregation), IEEE 1588 (time sync) / 802.1AS, IEEE 802.1q (VLAN tagging) | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x4 Male | |
| External Ports | 2 - RJ-45 Female | |
| Software | ||
| OS Compatibility | Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019 Linux 2.4.x to 4.11.x LTS versions only | |
| Special Notes / Requirements | ||
| System and Cable Requirements | Available PCI Express x4 or higher (x8, x16) slot | |
| Indicators | ||
| LED Indicators | 2 - 10/100/1000 Mbps Indicator | |
| 2 - Link / Activity | ||
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) | |
| Physical Characteristics | ||
| Product Height | 4.8 in [12.1 cm] | |
| Product Length | 2.6 in [67 mm] | |
| Product Width | 0.7 in [19 mm] | |
| Weight of Product | 2.8 oz [80 g] | |
| Packaging Information | ||
| Package Height | 1.1 in [29 mm] | |
| Package Length | 5.7 in [14.4 cm] | |
| Package Width | 6.8 in [17.2 cm] | |
| Shipping (Package) Weight | 5.8 oz [165 g] | |

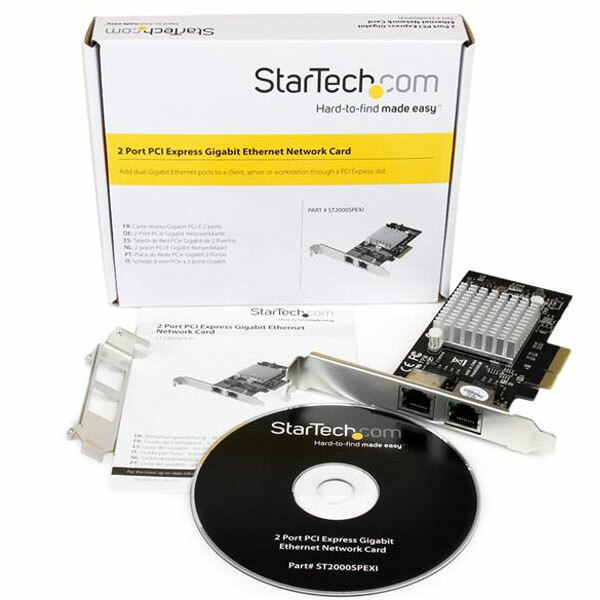

| What's in the Box | ||
| Included in Package | 1 - 2 Port Network Card | |
| 1 - Low Profile Bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | ST2000SPEXI |
| Barcode # | 65030852739 |
| Brand | STARTECH |
| Shipping Weight | 0.1700kg |
| Shipping Width | 0.140m |
| Shipping Height | 0.030m |
| Shipping Length | 0.174m |
| Shipping Cubic | 0.000731000m3 |
