Gigabit wired networking
The RJ45 port supports 10/100/1000Mbps Ethernet with auto-negotiation.
STARTECH USB-C Ethernet Adapter, RJ45 - US1GC301AUW
Model # US1GC301AUW
-
SKU: US1GC301AUW
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com | US1GC301AUW

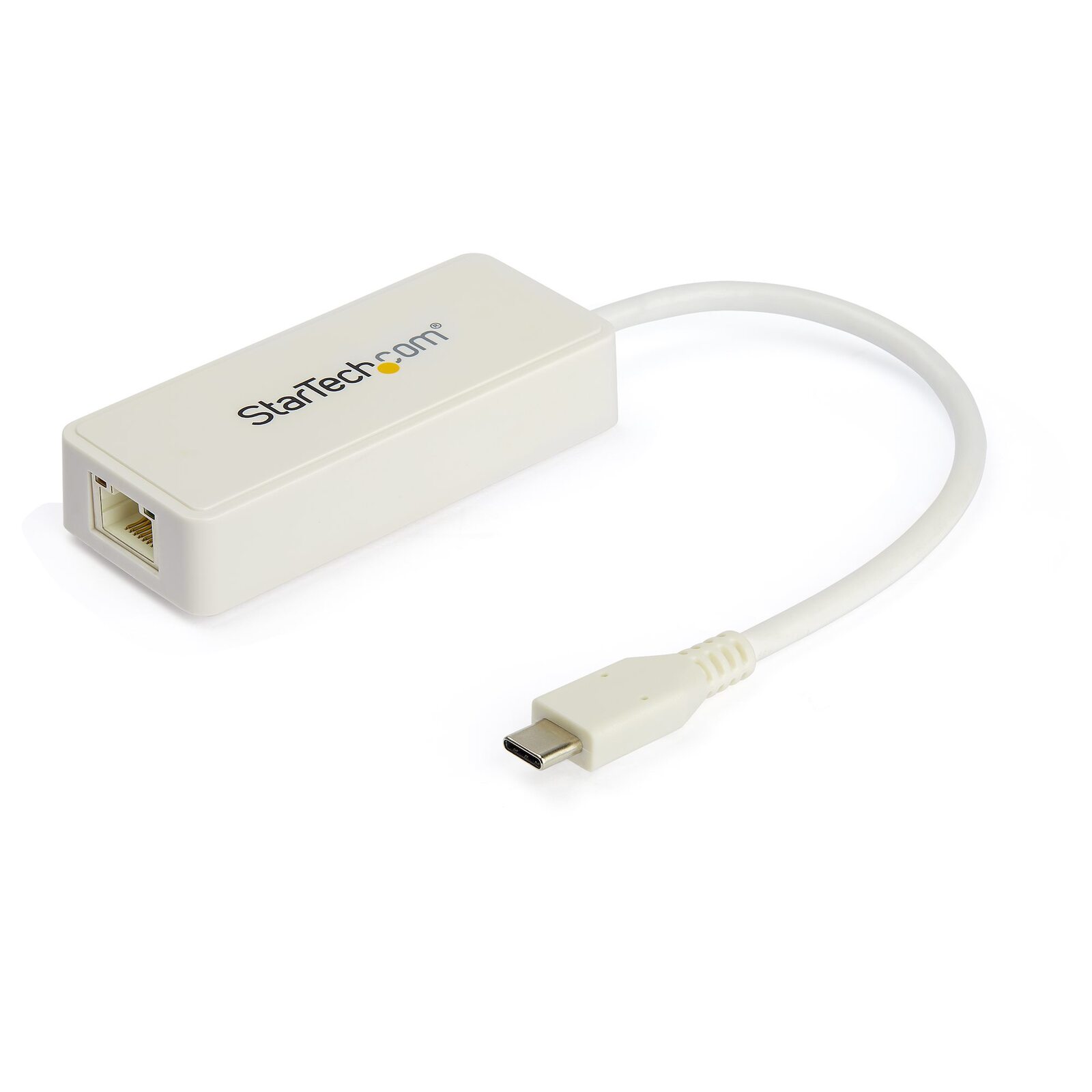

StarTech White USB-C Gigabit Ethernet Adapter with USB-A
Connect a compatible USB-C or Thunderbolt 3 computer to a 10/100/1000Mbps wired network while retaining one USB Type-A Gen 1 peripheral port.
Gigabit EthernetExtra USB-A portWhite finish
Key features at a glance
Direct, product-specific information to help confirm whether this model fits the intended setup.

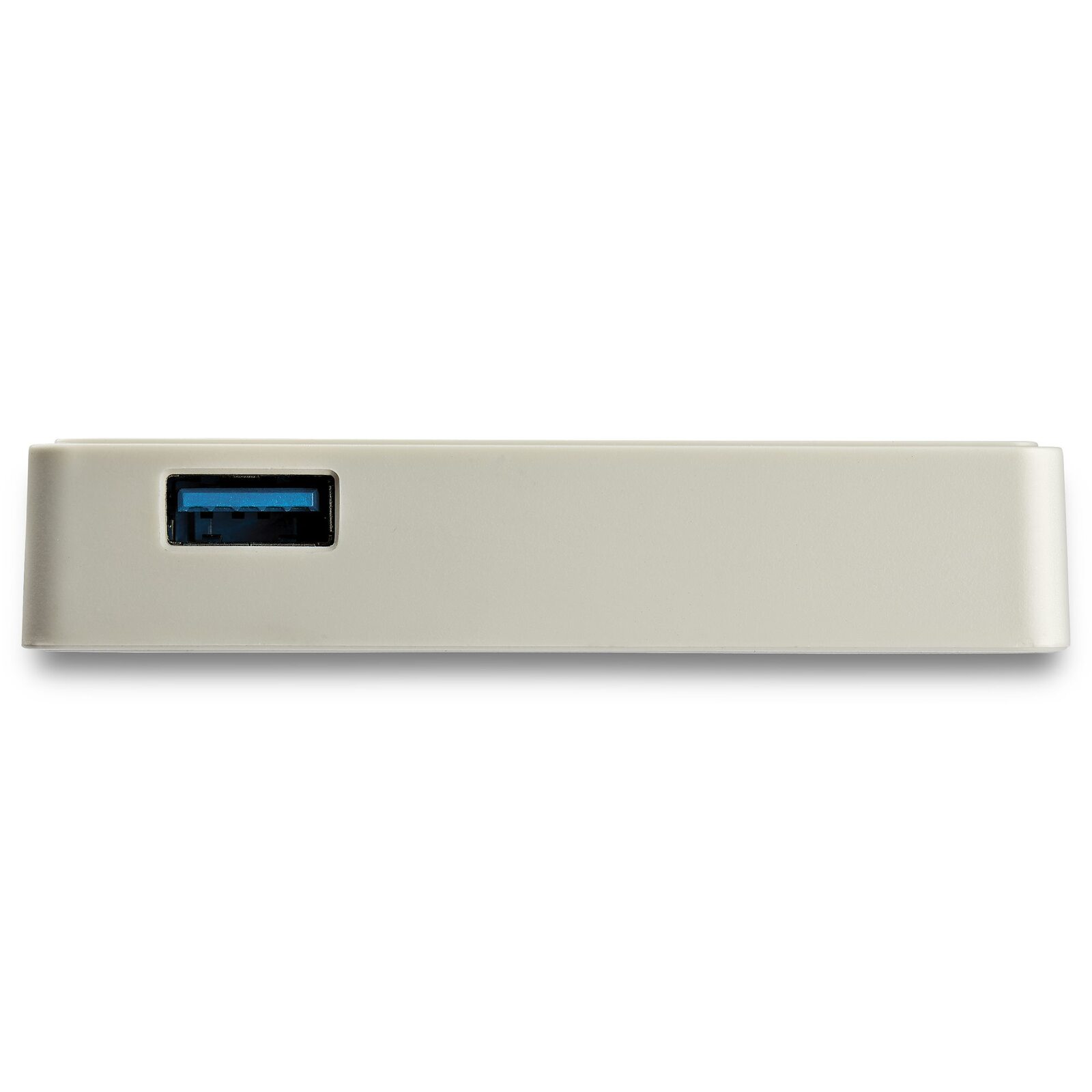

Extra USB-A port
The integrated USB Type-A Gen 1 port supports one additional compatible USB peripheral at up to 5Gbps.
Network feature set
The exact-SKU StarTech specification lists Wake-on-LAN, VLAN tagging, Auto MDIX, full duplex and 9K jumbo frames.
Bus-powered design
The attached-cable adapter is powered from USB and uses a reversible USB-C host connector.
Australian version with official 2 Years warranty
Supplied by DeviceDeal and covered by the official StarTech.com manufacturer warranty in Australia. Retain your DeviceDeal tax invoice; coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
Frequently asked questions
Quick answers based on the supplied product information and specifications.
What does the StarTech US1GC301AUW provide?
It provides one RJ45 Gigabit Ethernet port and one USB Type-A Gen 1 peripheral port through a compatible USB-C or Thunderbolt 3 connection.
What network speeds are supported?
The official exact-SKU specification lists 10/100/1000Mbps Ethernet networks.
How fast is the additional USB Type-A port?
The official specification lists one USB 3.2 Type-A Gen 1 port at up to 5Gbps.
Does it support Wake-on-LAN and jumbo frames?
Yes. Wake-on-LAN and jumbo frames up to 9K are listed in the exact-SKU StarTech specification.
How is the adapter powered?
It is USB-powered with a listed 5V DC input.
Is VLAN tagging supported in macOS?
No. The official specification states that VLAN tagging is currently not supported in macOS.
What is included in the package?
The package includes one USB-C to Gigabit Ethernet network adapter.
What warranty applies in Australia?
The Australian-version product supplied by DeviceDeal is covered by a two-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms, eligibility and product assessment.
(US1GC301AUW)
Features and highlights
StarTech US1GC301AUW
Gigabit wired networking
The RJ45 port supports 10/100/1000Mbps Ethernet with auto-negotiation.
Extra USB-A port
The integrated USB Type-A Gen 1 port supports one additional compatible USB peripheral at up to 5Gbps.
Network feature set
The exact-SKU StarTech specification lists Wake-on-LAN, VLAN tagging, Auto MDIX, full duplex and 9K jumbo frames.
Bus-powered design
The attached-cable adapter is powered from USB and uses a reversible USB-C host connector.
- USB 3.2 Gen 1 host connection
- Realtek RTL8153 and VLI VL817 chipsets
- Green 10/100 and amber Gigabit link/activity indicators
- Official two-year StarTech.com warranty
Warranty confidence: Australian-version product with a 2 years official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
Technical specifications
StarTech US1GC301AUW specifications organised from the supplied product data.
Warranty Information
| Warranty | 2 Years |
|---|
Hardware
| Ports | 1 |
|---|---|
| Interface | RJ45 (Gigabit Ethernet) |
| Bus Type | USB 3.2 Gen 1 |
| USB Pass-Through | Yes |
| Industry Standards | IEEE 802.3i (10BASE-T); IEEE 802.3u (100BASE-T); IEEE 802.3ab (1000BASE-T); IEEE 802.1q (VLAN Tagging) |
| Chipset ID | Realtek RTL8153; VLI VL817 |
Performance
| Wake On LAN | Yes |
|---|---|
| Maximum Data Transfer Rate | 5 Gbps (USB 3.1 Gen 1) |
| Compatible Networks | 10/100/1000 Mbps |
| Auto MDIX | Yes |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Promiscuous Mode | Yes |
Connector(s)
| Connector Type(s) | 1 × USB 3.2 Type-C (24 pin, Gen 1, 5Gbps) |
|---|---|
| External Ports | 1 × USB 3.2 Type-A (9 pin, Gen 1, 5Gbps); 1 × RJ-45 |
Software
| OS Compatibility | Windows XP, Vista, 7, 8, 8.1, 10, 11, 11 ARM; Windows Server 2003, 2008 R2, 2012; macOS 10.11 to 10.14, 11.0, 12.0, 13.0, 14.0, 15.0, 26.1 (VLAN tagging is currently not supported in macOS); Linux Kernel 2.6.25 and up, LTS versions only; Chrome OS |
|---|
Indicators
| LED Indicators | Green: 10/100 Link/Activity; Amber: Gigabit Link/Activity |
|---|
Power
| Power Source | USB-Powered |
|---|---|
| Input Voltage | 5V DC |
| Output Voltage | 5V DC |
Environmental
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Humidity | 5% to 80% RH |
Physical Characteristics
| Color | White |
|---|---|
| Form Factor | Attached Cable |
| Material | Plastic |
| Cable Length | 8.0 in [20.3 cm] |
| Product Length | 10.8 in [27.5 cm] |
| Product Width | 1.4 in [3.5 cm] |
| Product Height | 0.7 in [1.7 cm] |
| Weight of Product | 1.3 oz [38.0 g] |
Packaging Information
| Package Quantity | 1 |
|---|---|
| Package Length | 6.7 in [17.0 cm] |
| Package Width | 5.6 in [14.3 cm] |
| Package Height | 1.2 in [3.1 cm] |
| Shipping (Package) Weight | 3.1 oz [88.0 g] |

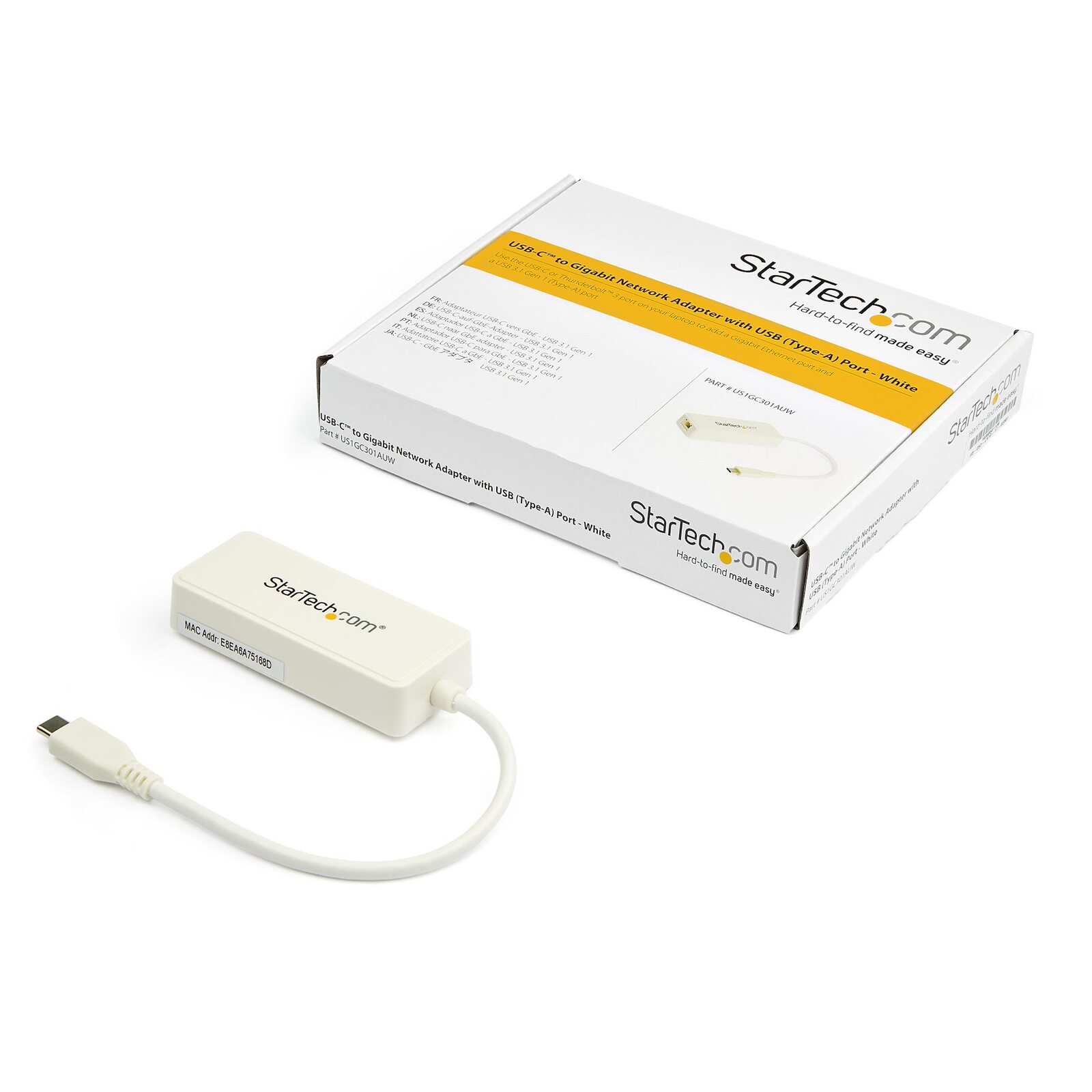

What's in the Box
| Included in Package | 1 × USB-C to GbE Network Adapter |
|---|
| SKU | US1GC301AUW |
| Barcode # | 65030861212 |
| Brand | STARTECH |
| Shipping Weight | 0.1000kg |
| Shipping Width | 0.003m |
| Shipping Height | 0.018m |
| Shipping Length | 0.015m |
Australian version and official StarTech.com warranty
This is the Australian-version product supplied by DeviceDeal and is covered by the official StarTech.com manufacturer warranty in Australia for 2 years.
Please retain the DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
