StarTech.com ST2000PEXPSE

Dual-port Gigabit PoE PCIe network card with 25.5W per port

Add two 10/100/1000Mbps RJ45 Power-over-Ethernet ports to a PCIe system, delivering network data and up to 25.5W of PoE power per port.

2 × Gigabit RJ45PoE PSE 25.5W/portPCIe x12-year warranty

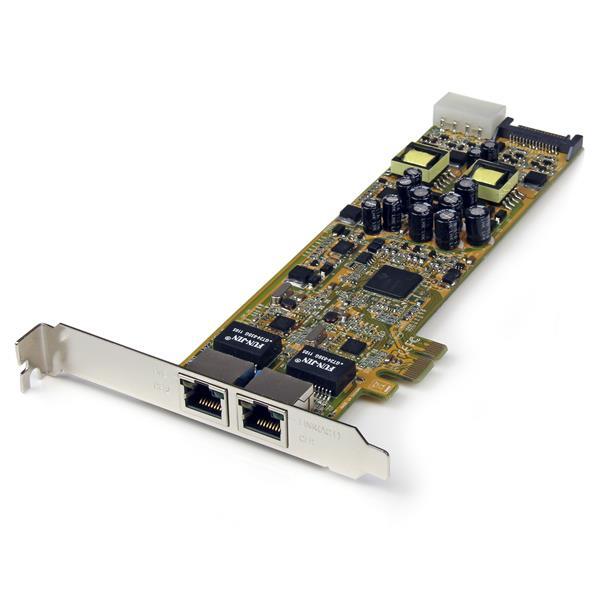

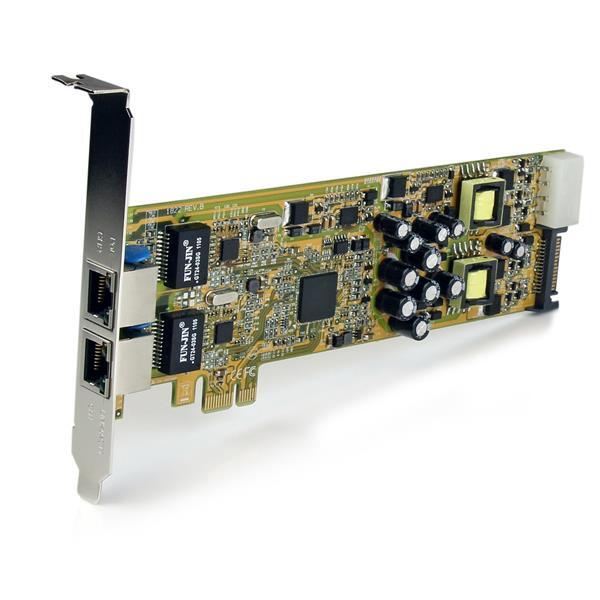

StarTech ST2000PEXPSE dual-port Gigabit PoE PCIe network card

Key capabilities

Two Gigabit PoE ports

Each RJ45 port supports 10/100/1000Mbps Ethernet and PoE power delivery.

25.5W per port

Designed as Power Sourcing Equipment for compatible PoE devices such as cameras, phones and access points.

PCIe with auxiliary power

Installs in a PCI Express slot and requires an available LP4 or SATA power connection for PoE output.

Network-management features

Supports Auto-MDIX, full duplex, VLAN-related deployment features and Wake-on-LAN.

What to know before buying

PoE output requires an available LP4 Molex or SATA power connector in the host system. Confirm the powered device is compatible with the supported PoE standard and power budget.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many Ethernet ports does ST2000PEXPSE provide?

Two RJ45 Gigabit Ethernet ports.

How much PoE power can each port provide?

Up to 25.5W per port.

What Ethernet speeds are supported?

10/100/1000Mbps.

What host interface is used?

PCI Express x1.

Does it need extra power from the PC?

Yes. An LP4 Molex or SATA power connector is required for PoE operation.

Does it include a low-profile bracket?

Yes.

What chipset is listed for this exact model?

Realtek RTL8111E.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST2000PEXPSE)

Features and highlights

Two Gigabit PoE ports

Each RJ45 port supports 10/100/1000Mbps Ethernet and PoE power delivery.

25.5W per port

Designed as Power Sourcing Equipment for compatible PoE devices such as cameras, phones and access points.

PCIe with auxiliary power

Installs in a PCI Express slot and requires an available LP4 or SATA power connection for PoE output.

Network-management features

Supports Auto-MDIX, full duplex, VLAN-related deployment features and Wake-on-LAN.

2 × Gigabit RJ45
PoE PSE 25.5W/port
PCIe x1
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST2000PEXPSE.

Warranty Information

Warranty	2 Years

Hardware

Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Chipset ID	Realtek - RTL8111E
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3at
Interface	RJ45 (Gigabit Ethernet)
Port Style	Integrated on Card
Ports	2

Performance

Auto MDIX	Yes
Buffer Size	48 KB
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	1000 Mbps (uni-directional), 2000 Mbps (bi-directional)
MTBF	140,981 hours

Connector(s)

Connector Type(s)	1 - PCI Express x1 Male
External Ports	2 - RJ-45 Female
Internal Ports	1 - LP4 (4 pin; Large Drive Power) Male
Internal Ports	1 - SATA Power (15 pin) Plug

Software

OS Compatibility	Windows¨ 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server¨ 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X¨ 10.6 to 10.9 Linux 2.4.x to 4.11.x LTS Versions Only

Special Notes / Requirements

Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive. ¥ United States Patent No. 5,406,260 (expired) ¥ United States Patent No. 6,650,622 ¥ United States Patent No. 7,457,250 ¥ United States Patent No. 8,155,012 ¥ United States Patent No. 8,902,760 ¥ United States Patent No. 8,942,107 ¥ United States Patent No. 9,019,838 ¥ United States Patent No. 9,049,019 ¥ United States Patent Application No. 14/695,456 ¥ United States Patent Application No. 14/726,940
System and Cable Requirements	Available full/low profile PCI Express expansion slot
System and Cable Requirements	Available LP4 Molex or SATA power connector

Indicators

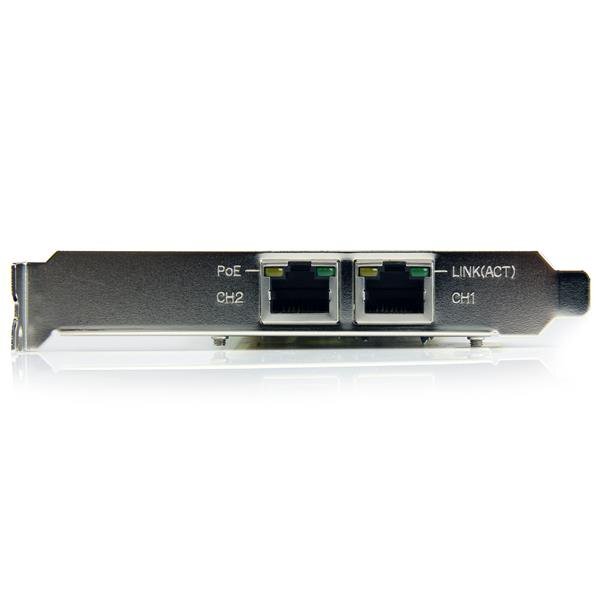

LED Indicators	2 - Link/ Activity (green)
LED Indicators	2 - PoE Active (yellow)

Power

Output Voltage	48 DC

Environmental

Humidity	5% ~ 95% RH
Operating Temperature	0°C to 55°C (32°F to 131°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)

Physical Characteristics

Product Height	2.7 in [6.8 cm]
Product Length	7.7 in [19.5 cm]
Product Width	0.7 in [19 mm]
Weight of Product	3.7 oz [104 g]

Packaging Information

Package Height	1.8 in [45 mm]
Package Length	6.5 in [16.5 cm]
Package Width	9.1 in [23.1 cm]
Shipping (Package) Weight	8.7 oz [246 g]

What's in the Box

Included in Package	1 - PCI Express Network Card
Included in Package	1 - Low Profile Bracket
Included in Package	1 - Driver CD
Included in Package	1 - Instruction Manual

SKU	ST2000PEXPSE
Barcode #	65030849128
Brand	Startech
Shipping Weight	0.2500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.220m
Shipping Cubic	0.001100000m3
