STARTECH POESLT1G48V Industrial Gigabit PoE Splitter 90W 48V

Industrial Gigabit 90W PoE splitter converting IEEE 802.3bt input into selectable 12V, 16V, 24V or 48V DC terminal-block power.

Quick answer: Separates Gigabit data and up to 90W PoE input, delivering Ethernet plus a selectable DC output for non-PoE industrial equipment.

Best forFactories, transport, security and remote installations powering non-PoE devices from an industrial high-power PoE network.

Check before orderingConfirm the PSE supports the required 802.3af/at/bt power level and set the DIP switches to the exact voltage required by the load.

Answers before you buy

Frequently asked questions

What does POESLT1G48V do?

Separates Gigabit data and up to 90W PoE input, delivering Ethernet plus a selectable DC output for non-PoE industrial equipment.

Who is this product best for?

Factories, transport, security and remote installations powering non-PoE devices from an industrial high-power PoE network.

What should I check before ordering?

Confirm the PSE supports the required 802.3af/at/bt power level and set the DIP switches to the exact voltage required by the load.

Does it require drivers or software?

No software is required; voltage selection is hardware-controlled by DIP switches.

What is included in the package?

Industrial PoE splitter, removable terminal block and mounting hardware kit.

What is the key installation requirement?

Set the required DC output before applying power, connect the PoE input and data output, then wire the terminal block with correct polarity.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

POESLT1G48V carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(POESLT1G48V)

Features & highlights

Why choose POESLT1G48V?

?Up to 90W inputSupports high-power IEEE 802.3bt Type 3 PoE sources.

?Selectable DC outputChoose 12V, 16V, 24V or 48V for compatible equipment.

?Gigabit EthernetSeparates 10/100/1000Mbps data from PoE power.

?Industrial temperature rangeRated for operation from -40°C to 75°C.

?DIN or wall mountingHardware supports professional industrial installation.

?IP30 steel enclosureBuilt for demanding environments with shock and vibration testing.

Compatibility reminder: Confirm the PSE supports the required 802.3af/at/bt power level and set the DIP switches to the exact voltage required by the load.

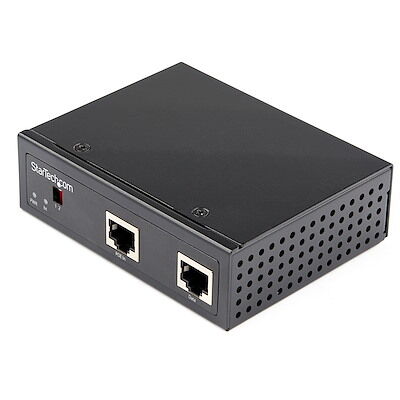

STARTECH POESLT1G48V Industrial Gigabit PoE Splitter 90W 48V product image

Technical specifications

POESLT1G48V specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years

PoE	Yes
Connector(s)
Connector Type(s)	1 - RJ-45 (PoE+)
Additional detail	1 - RJ-45
Additional detail	1 - Terminal Block (4 Wire)
Environmental
Operating Temperature	-40°C to 75°C
Storage Temperature	-40°C to 85°C
Humidity	5 to 95% (non-condensing)
Hardware
Ports	2
Industry Standards	IEEE 802.3 10BASE-T; IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3at PoE+; IEEE 802.3af PoE
Chipset ID	Texas Instruments TPS2372-4
Indicators
LED Indicators	1 - Power
Additional detail	1 - bt
Packaging Information
Package Height	2.6 in [6.6 cm]
Package Length	8.4 in [21.4 cm]
Shipping (Package) Weight	13.3 oz [378.0 g]
Package Width	6.6 in [16.8 cm]
Package Quantity	1
Performance
Maximum Cable Length	328.0 ft [100 m]
Compatible Networks	10/100/1000 Mbps
Auto MDIX	Yes
Full Duplex Support	Yes
Jumbo Frame Support	9K max.
General Specifications	ESD Standard: IEC 61000-4-2: Contact: 6KV; Air: 8KV; EFT Standard: IEC 61000-4-4: Power: 2KV; Signal: 2KV; Surge Standard: IEC 61000-4-5: Power: 2KV; Signal: 2KV; Vibration Standard: EN 60068-2-6; Shock Standard: EN 60068-2-27; Free-Fall Standard: EN 60068-2-32; Housing Standard: IP-30; Safety Standard: EN60950-1
MTBF	622,154 hours
Supported Protocols	IEEE 802.3bt PoE; CSMA/CD
Additional detail	IEEE 802.3at PoE+
Additional detail	IEEE 802.3af PoE
Physical Characteristics
Product Height	1.3 in [3.2 cm]
Product Length	4.1 in [10.4 cm]
Weight of Product	5.3 oz [150.0 g]
Product Width	3.2 in [8.2 cm]
Color	Black
Material	Steel
Special Notes / Requirements
Patents and Licenses	United States Patent No. 5,406,260 (expired) ; United States Patent No. 6,650,622; United States Patent No. 7,457,250; United States Patent No. 8,155,012; United States Patent No. 8,902,760; United States Patent No. 8,942,107; United States Patent No. 9,019,838; United States Patent No. 9,049,019; United States Patent Application No. 14/695,456; United States Patent Application No. 14/726,940;
What's in the Box
Included in Package	1 - Industrial-Grade Hardened PoE Splitter
Additional detail	1 - Terminal Block
Additional detail	1 - Hardware Mounting Kit

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	POESLT1G48V
Barcode #	65030889735
Brand	STARTECH
Shipping Weight	1.0000kg
Shipping Width	0.007m
Shipping Height	0.022m
Shipping Length	0.017m
