DC-to-DC PoE conversion
The TP-DC-1256GD-VHP converts the stated 10-60VDC DC input for delivery through its integrated PoE output.

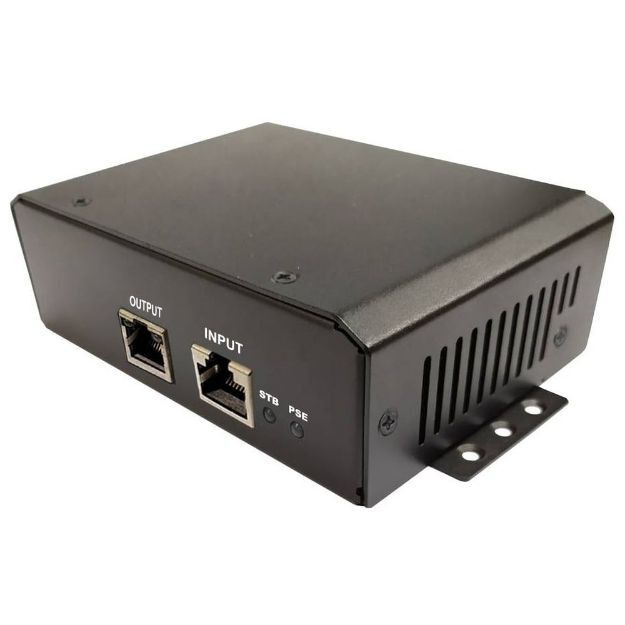

Tycon Power TP-DC-1256GD-VHP
The Tycon Power TP-DC-1256GD-VHP converts a 10-60VDC input to a 56V, 70W four-pair IEEE 802.3at PoE output with data throughput up to 5 Gigabit.
Product highlights
Verified product information is organised below to support faster comparison and more confident installation planning.
The TP-DC-1256GD-VHP converts the stated 10-60VDC DC input for delivery through its integrated PoE output.
The output is specified as 56VDC IEEE 802.3at PoE with dual detect.
The exact-model output rating is stated as 70W.
The supported data rate is identified as Up to 5 Gigabit.
The PoE output uses 4-pair (8-wire) according to the exact product information.
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
A low-voltage disconnect function is stated for battery-powered installations.
Short-circuit, over-current and reverse/over-voltage protection; low-voltage, surge and overload protection are also stated.
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
The Tycon Power TP-DC-1256GD-VHP converts a 10-60VDC input to a 56V, 70W four-pair IEEE 802.3at PoE output with data throughput up to 5 Gigabit.
The specified DC input is 10-60VDC.
The output is 56VDC IEEE 802.3at PoE with dual detect with a stated maximum of 70W.
The product information identifies Up to 5 Gigabit data support.
The product is specified for 4-pair (8-wire) power delivery.
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DC-1256GD-VHP)
Technical specifications
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DC-1256GD-VHP |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 10-60VDC |
| PoE output voltage | 56VDC |
| PoE output type | IEEE 802.3at PoE with dual detect |
| Maximum output power | 70W |
| Powered pairs | 4-pair (8-wire) |
| Networking | |
| Network data rate | Up to 5 Gigabit |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Low-voltage disconnect | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection; low-voltage, surge and overload protection are also stated. |
| Operating temperature | -40°C to 70°C |
| Housing material | Metal |
| DIN-rail mounting | DIN-rail mounting kit included |
| SKU | TP-DC-1256GD-VHP |
| Brand | TYCON POWER |
| Shipping Width | 0.600m |
