Tycon Power • POE-SPLT-48G-VUB

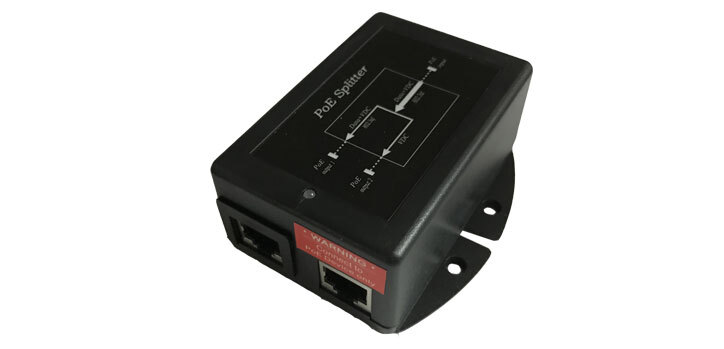

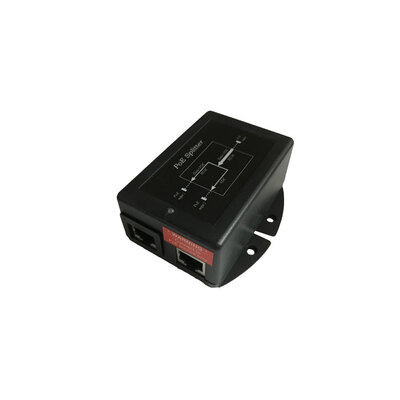

Tycon Power POE-SPLT-48G-VUB Dual-Output Gigabit PoE Splitter

A Gigabit active splitter that accepts 802.3af, 802.3at or compatible passive PoE and provides separate active and passive PoE outputs.

Dual PoE outputs32W-40°C to +70°C

Features and highlights

Accepts IEEE 802.3af, 802.3at or compatible passive PoE input.

Accepts Mode A or Mode B power input.

Provides an IEEE 802.3af PoE output with data.

Provides a separate 48V passive PoE power output.

Gigabit Ethernet compatible.

Maximum stated PoE power of 32W.

Short-circuit and over-current protection.

Industrial operating range from -40°C to +70°C.

Compatibility and installation note

The passive output must only be connected to equipment designed for the stated 48V passive PoE supply.

Frequently asked questions

How many outputs does the splitter provide?
It provides one active IEEE 802.3af PoE output with data and one 48V passive PoE power output.
Which PoE inputs are accepted?
It accepts IEEE 802.3af, 802.3at or compatible passive PoE input in Mode A or Mode B.
Does it support Gigabit Ethernet?
Yes. It is Gigabit Ethernet compatible.
What is the maximum stated power?
The listed maximum PoE power is 32W.

(POE-SPLT-48G-VUB)

Tycon Power • POE-SPLT-48G-VUB

Technical Specifications

BrandTycon Power
ModelPOE-SPLT-48G-VUB
Product typeDual-output PoE splitter
InputIEEE 802.3af/at or compatible passive PoE
Input modesMode A or Mode B
Output 1IEEE 802.3af PoE with data
Output 248V passive PoE power
Maximum power32W
Network speedGigabit Ethernet
Operating temperature-40°C to +70°C
ProtectionShort circuit and over-current
SKU POE-SPLT-48G-VUB
Brand TYCON POWER
Shipping Weight 0.2000kg
DeviceDeal authorised reseller support

Tycon Power Manufacturer Warranty

DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
