Tycon Power • TP-DCDC-4856GD-VHP

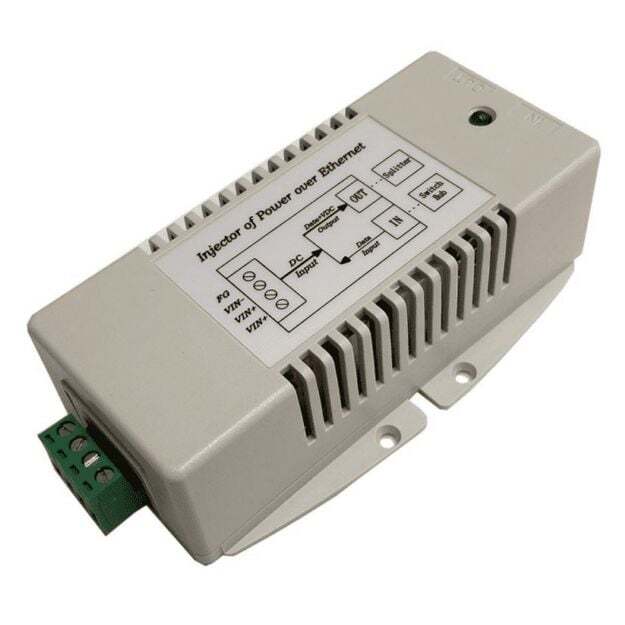

Tycon Power TP-DCDC-4856GD-VHP 36-72VDC to 56V 70W Dual-Channel Gigabit 802.3at PoE Injector

The Tycon Power TP-DCDC-4856GD-VHP converts 36-72VDC input power to 56V IEEE 802.3at PoE, supplying up to 70W across two detected PoE channels with Gigabit data throughput.

36-72VDC input 56V 802.3at output 70W total 35W per channel Gigabit

Product highlights

Key supplied and exact-model details for the TP-DCDC-4856GD-VHP.

Dual-channel PoE output

Two detected IEEE 802.3at channels provide up to 35W each for a stated 70W total.

48V-class DC conversion

The supplied exact-model information states a 36-72VDC input range.

Gigabit data path

The official family information identifies Gigabit data throughput.

Dual isolated inputs

Two inputs support primary and backup power-source arrangements.

Low self-consumption

The official family information states internal consumption below 2W.

Protected operation

Short-circuit, over-current, reverse/over-voltage, surge and overload protection are stated.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-DCDC-4856GD-VHP do?

It converts 36-72VDC input power to 56V dual-channel IEEE 802.3at PoE.

How is the 70W output delivered?

The unit can provide up to 35W on each of two detected PoE channels.

Does it support Gigabit Ethernet?

Yes. Gigabit data throughput is stated.

Can two DC sources be connected?

Yes. Two isolated inputs support primary and backup source arrangements.

Is it the same as a single-channel 70W injector?

No. The stated 70W total depends on the powered device supporting both 802.3at channels.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-DCDC-4856GD-VHP)

Technical specifications

Tycon Power TP-DCDC-4856GD-VHP

Product details
Brand Tycon Power
Model TP-DCDC-4856GD-VHP
Product type Very-high-power DC-to-DC IEEE PoE injector
Power and PoE
DC input 36-72VDC
PoE output voltage 56VDC
PoE standard IEEE 802.3at
PoE channels 2
Maximum output power 70W total
Maximum power per channel 35W
Networking
Network data rate Gigabit Ethernet
Power arrangement Two separate PoE channels across the Ethernet pair sets
Construction and protection
DC inputs Two isolated inputs
Self-consumption Less than 2W stated
Protection Short-circuit, over-current, reverse/over-voltage, surge and overload protection
SKU TP-DCDC-4856GD-VHP
Brand TYCON POWER
Shipping Weight 0.3000kg
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-4856GD-VHP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
