Dual-channel PoE output
Two IEEE 802.3at channels can provide up to 35W each for a stated total output of 70W when both channels are detected.

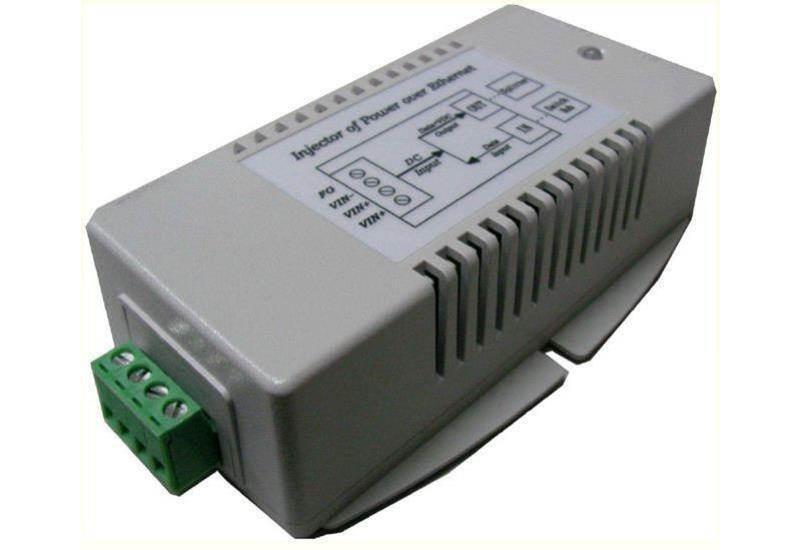

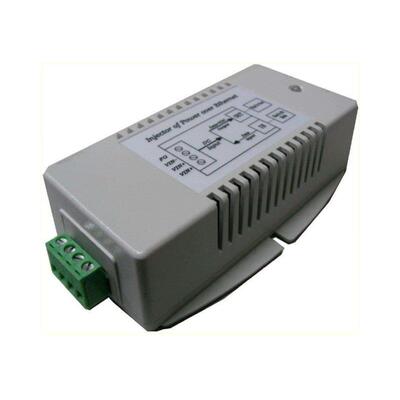

The Tycon Power TP-DCDC-2456GD-VHP converts an 18-36VDC source into 56V IEEE 802.3at PoE, delivering up to 70W across two detected PoE channels with Gigabit data passthrough.
Key supplied and exact-model details for the TP-DCDC-2456GD-VHP.
Two IEEE 802.3at channels can provide up to 35W each for a stated total output of 70W when both channels are detected.
The unit accepts an 18-36VDC source and converts it to regulated 56V PoE output.
Shielded Ethernet connections support Gigabit data passthrough.
Two isolated DC inputs support connection of primary and backup power sources.
The manufacturer states self-consumption below 2W.
Short-circuit, over-current, reverse-voltage, over-voltage, surge and overload protection are stated.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It converts 18-36VDC input power to 56V IEEE 802.3at PoE with Gigabit data passthrough.
It is rated for up to 70W total, delivered as up to 35W on each of two detected PoE channels.
Yes. The exact product information identifies Gigabit data throughput.
Yes. Two isolated DC inputs are provided for primary and backup source arrangements.
No. The output is identified as dual-channel IEEE 802.3at PoE.
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TP-DCDC-2456GD-VHP)
Tycon Power TP-DCDC-2456GD-VHP
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-2456GD-VHP |
| Product type | DC-to-DC PoE injector / converter |
| Power and PoE | |
| DC input | 18-36VDC |
| PoE output voltage | 56VDC |
| PoE standard | IEEE 802.3at |
| PoE channels | 2 |
| Maximum output power | 70W total |
| Maximum power per channel | 35W |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Power pair arrangement | Separate channels across the two Ethernet pair sets |
| Construction and protection | |
| DC inputs | Two isolated inputs |
| Self-consumption | Less than 2W |
| Protection | Short-circuit, over-current, reverse/over-voltage, surge and overload protection |
| Operating temperature | -30°C to 60°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| SKU | TP-DCDC-2456GD-VHP |
| Brand | TYCON POWER |
| Shipping Weight | 0.2000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-2456GD-VHP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
