Tycon Power • POE-CONV-2AT-60

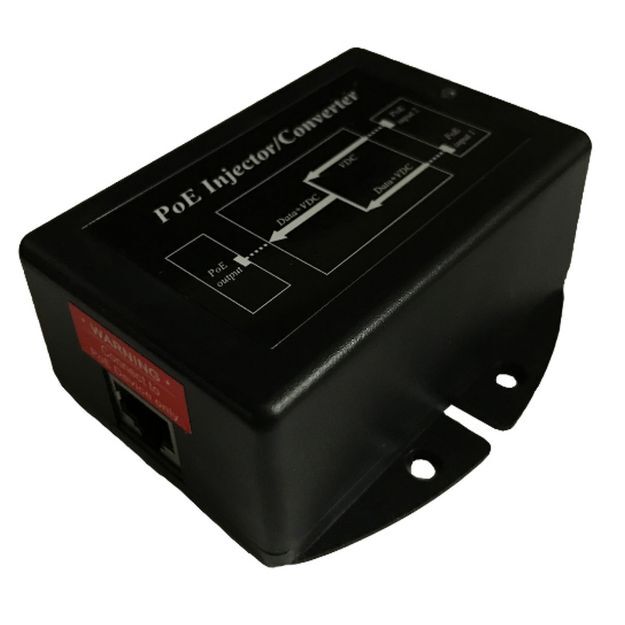

Tycon Power POE-CONV-2AT-60 Dual-Input 60W Gigabit Passive PoE Converter

A compact Gigabit PoE power combiner that accepts two suitable PoE inputs and provides one high-power 4-pair passive PoE output rated up to 60W.

60W outputGigabit Ethernet1500V isolation

Features and highlights

Combines two 802.3at or 48V passive PoE inputs into one 4-pair 60W passive PoE output.

One input carries data and power, while the second input supplies additional power.

Supports 10/100/1000Mbps Gigabit Ethernet data.

Input and output are electrically isolated to 1500VDC.

Includes short-circuit and overload protection.

Compact design with an operating range of -30°C to +60°C.

Compatibility and installation note

The powered device must accept the converter’s 4-pair passive PoE output. Confirm voltage, pinout and power requirements before connection.

Frequently asked questions

What does the POE-CONV-2AT-60 do?
It combines two suitable PoE inputs into one high-power 4-pair passive PoE output rated up to 60W.
Does it support Gigabit Ethernet?
Yes. It supports 10/100/1000Mbps data.
Do both input ports carry data?
No. One input carries data and power, while the second input is used for additional power.
Is the output standard active PoE?
No. The output is passive 4-pair PoE, so the connected device must match its power requirements.

(POE-CONV-2AT-60)

Tycon Power • POE-CONV-2AT-60

Technical Specifications

BrandTycon Power
ModelPOE-CONV-2AT-60
Product typeDual-input PoE converter / combiner
Input2 x 802.3at or 48V passive PoE
Input arrangement1 x data and power; 1 x power only
Output4-pair passive PoE
Maximum output power60W
Network speed10/100/1000Mbps
Electrical isolation1500VDC
ProtectionShort circuit and overload
Operating temperature-30°C to +60°C
SKU POE-CONV-2AT-60
Brand TYCON POWER
Shipping Weight 0.5000kg
DeviceDeal authorised reseller support

3-Year Tycon Power Manufacturer Warranty

DeviceDeal is an authorised reseller of Tycon Power. This product is covered by a 3-year Tycon Power manufacturer warranty.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to the manufacturer's warranty terms, eligibility requirements and product assessment.
