PoE voltage conversion
The converter raises 22-36V passive PoE input to 56V standards-based PoE output.

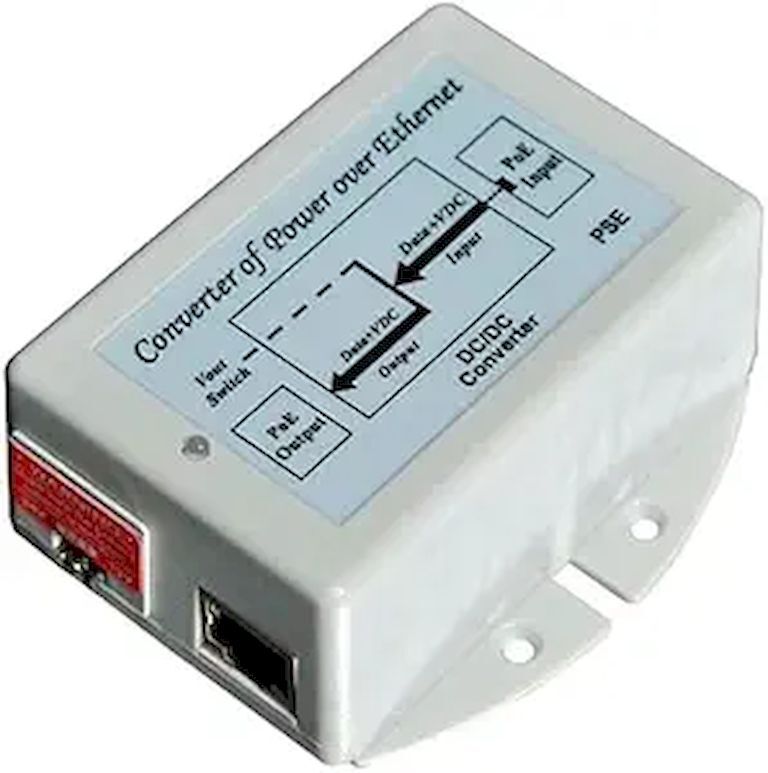

The Tycon Power TP-POE-2456GD accepts 22-36V passive PoE input and converts it to a 56V IEEE 802.3af/at PoE output rated up to 35W with Gigabit data passthrough.
Key supplied and exact-model details for the TP-POE-2456GD.
The converter raises 22-36V passive PoE input to 56V standards-based PoE output.
The output performs IEEE PoE delivery for compatible powered devices.
Maximum output power is specified as 35W.
The Ethernet data path supports Gigabit operation.
Power and data enter and leave through the Ethernet connections.
Surge, short-circuit, overload and over-voltage protection are stated.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It converts 22-36V passive PoE input to 56V IEEE 802.3af/at PoE output.
The exact model is rated up to 35W.
Yes. Gigabit data passthrough is supported.
It requires 22-36V passive PoE input on the stated pair assignment.
No. The output is identified as 56V IEEE 802.3af/at PoE.
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-POE-2456GD)
Tycon Power TP-POE-2456GD
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-POE-2456GD |
| Product type | Gigabit passive-PoE to IEEE-PoE converter |
| Power and PoE | |
| PoE input | 22-36VDC passive PoE |
| PoE output voltage | 56VDC |
| PoE output standard | IEEE 802.3af/at |
| Maximum output power | 35W |
| Power pairs | Pins 4,5 (+) and 7,8 (-) |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Maximum stated cable distance | Up to 100m through CAT5/6 |
| Environmental and construction | |
| Protection | Surge, short-circuit, overload and over-voltage protection |
| Operating temperature | -40°C to 70°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| SKU | TP-POE-2456GD |
| Brand | TYCON POWER |
| Shipping Weight | 0.2000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-POE-2456GD is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
