Tycon Power • TP-POE-56GD-BT

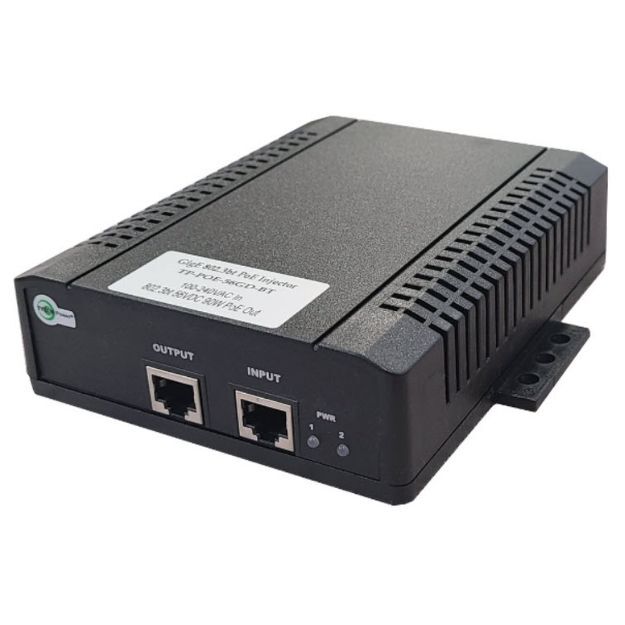

Tycon Power TP-POE-56GD-BT 56V 90W 5GbE IEEE 802.3bt PoE Injector

The Tycon Power TP-POE-56GD-BT accepts autoranging AC input and provides 56V IEEE 802.3bt PoE up to 90W across all four pairs, with data support stated up to 5Gbps.

100-240VAC input 56V 802.3bt 90W output Up to 5Gbps 4-pair power

Product highlights

Key supplied and exact-model details for the TP-POE-56GD-BT.

90W IEEE 802.3bt output

The unit provides standards-based four-pair PoE with a stated maximum of 90W.

Up to 5Gbps data

The feature list and long description identify 10/100/1000/5000Mb compatibility.

Autoranging AC input

The power supply accepts a broad 90-264VAC operating range.

Up to 100m cable runs

The manufacturer states support through CAT5+ cabling up to 100m.

Industrial operation

The exact page states -40°C to 70°C operation.

Flexible mounting

DIN-rail mounting clips are included, with wall mounting also supported.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What does the TP-POE-56GD-BT do?

It converts AC power to 56V IEEE 802.3bt PoE with up to 90W output.

What network speed is supported?

The exact feature list states support up to 5Gbps.

How is PoE power delivered?

IEEE 802.3bt power is supplied across all eight Ethernet wires.

Is it backward compatible with 802.3at devices?

Yes. The manufacturer states backward compatibility with IEEE 802.3at.

Are DIN-rail clips included?

Yes. DIN-rail mounting clips are included, and wall mounting is also supported.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Power’s terms and assessment.

(TP-POE-56GD-BT)

Technical specifications

Tycon Power TP-POE-56GD-BT

Product details
Brand Tycon Power
Model TP-POE-56GD-BT
Product type AC-powered high-power IEEE 802.3bt PoE injector
Power and PoE
AC input 100-240VAC nominal; 90-264VAC, 50/60Hz stated
PoE output voltage 56VDC
PoE standard IEEE 802.3bt
Maximum output power 90W
Power delivery All 8 Ethernet wires
Backward compatibility IEEE 802.3at stated
Networking
Network data rate 10/100/1000/5000Mb stated
Maximum stated cable distance Up to 100m with CAT5+ cable
Environmental and installation
Protection Ethernet and AC surge protection; short-circuit, overload and over-voltage protection
Operating temperature -40°C to 70°C
Mounting DIN rail clips included; wall mounting supported
Housing UV-resistant ABS 94V-0 plastic
SKU TP-POE-56GD-BT
Brand TYCON POWER
Shipping Width 0.800m
DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. The TP-POE-56GD-BT is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
