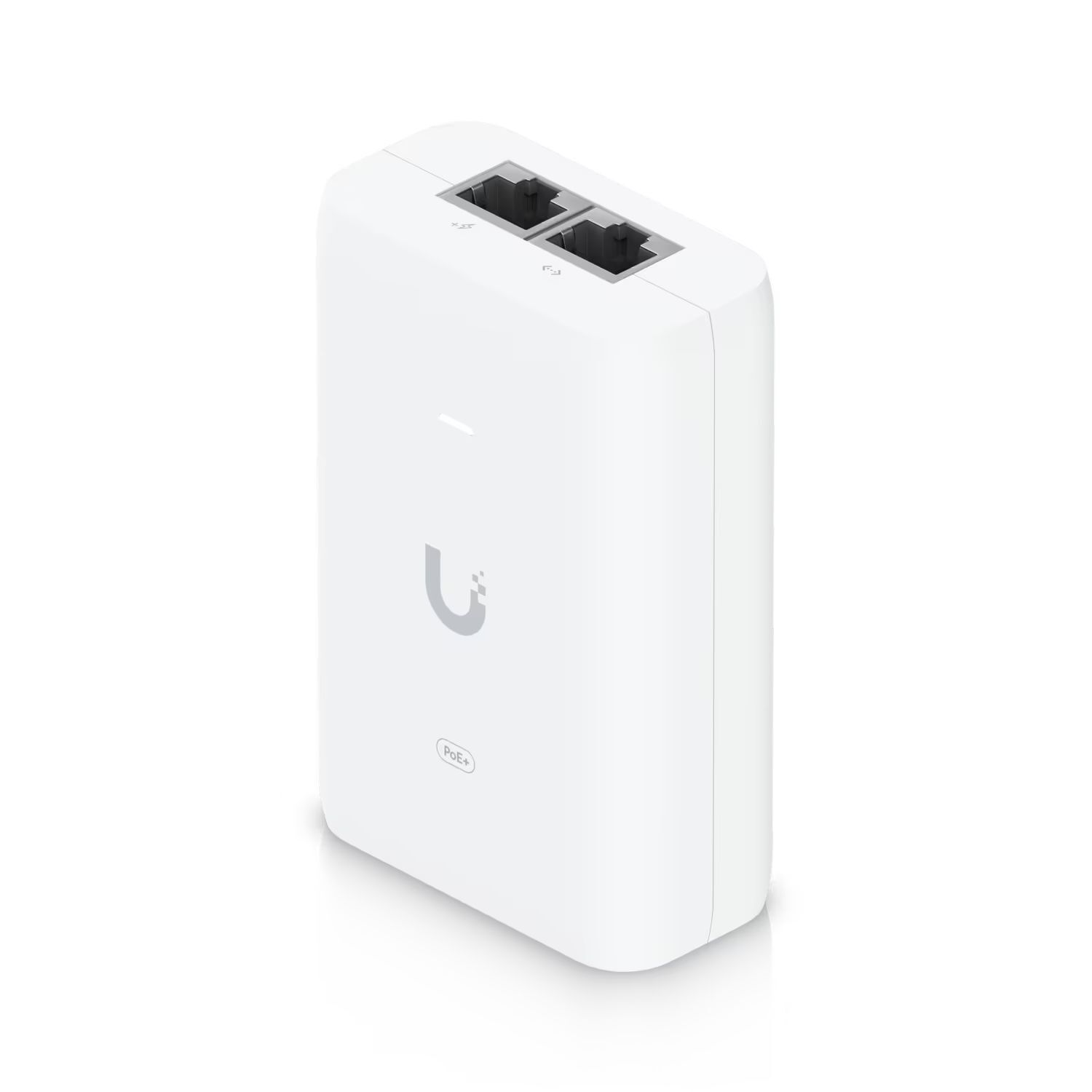

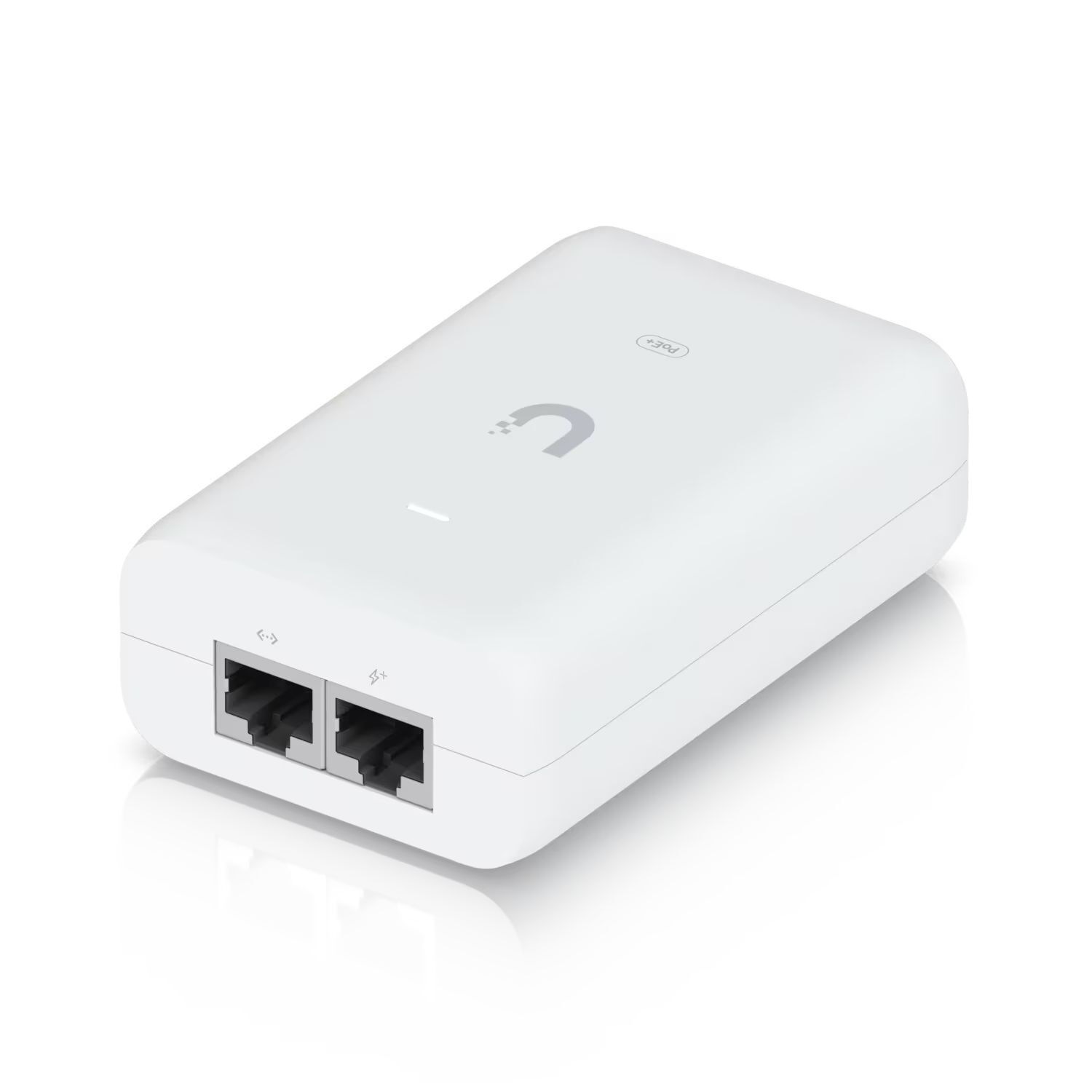

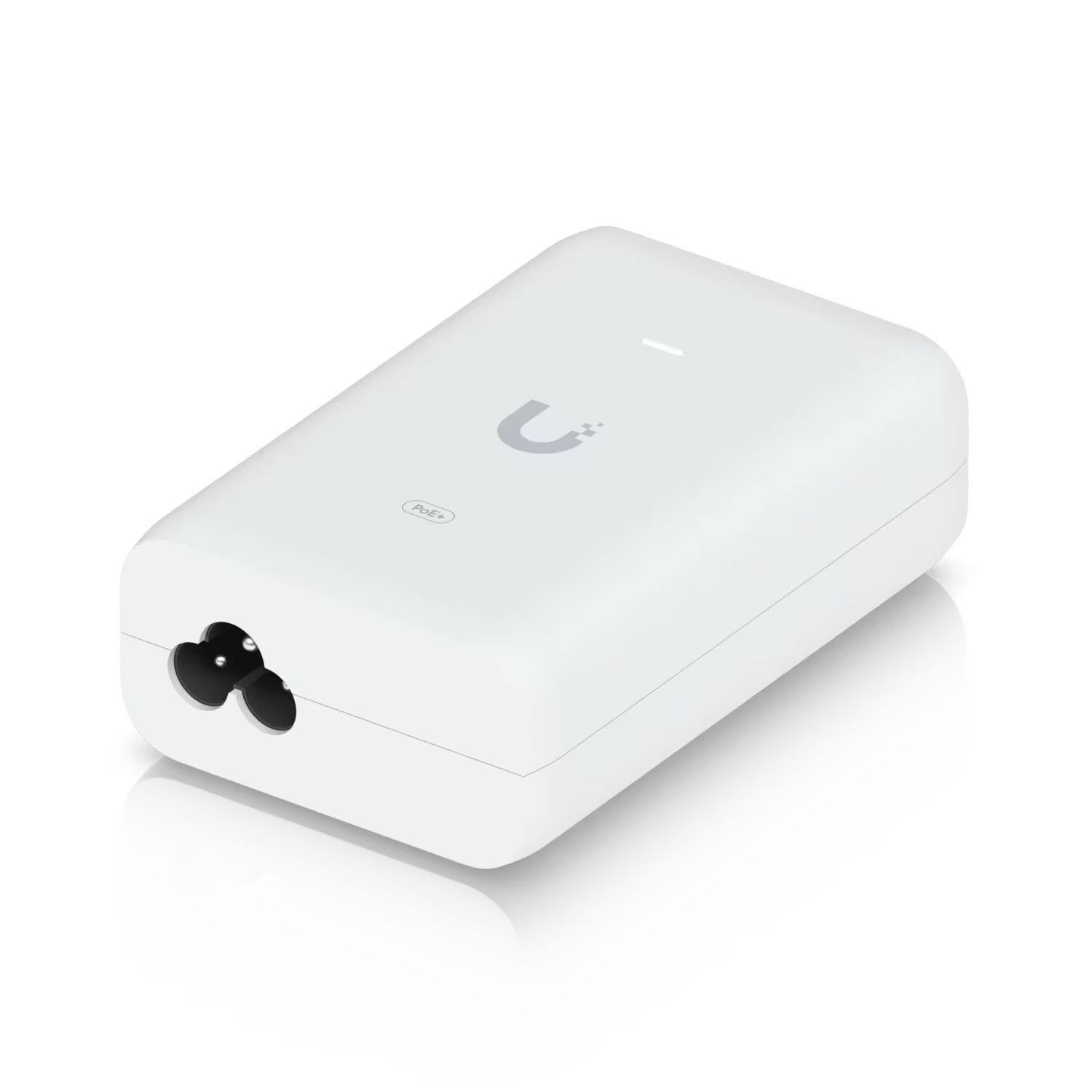

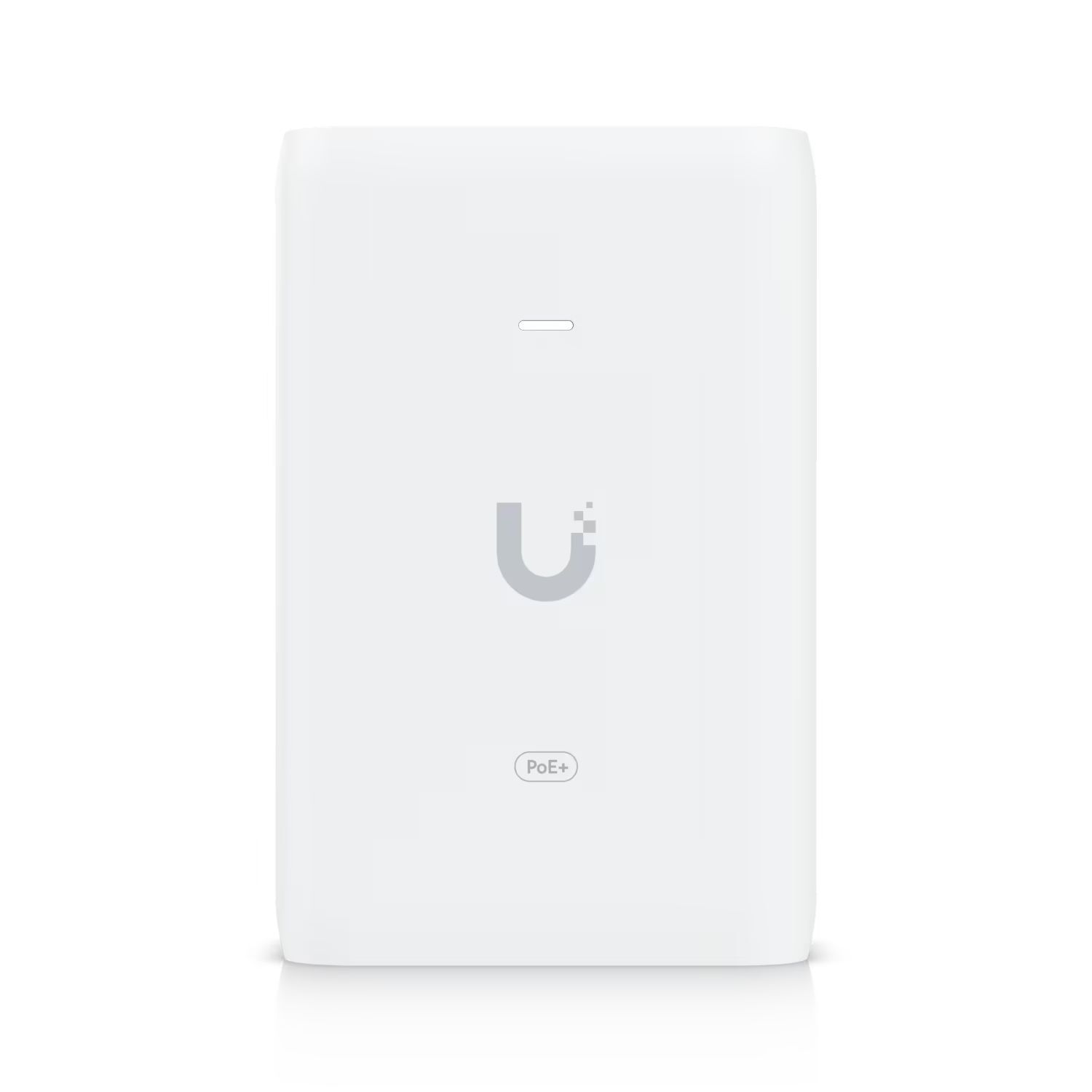

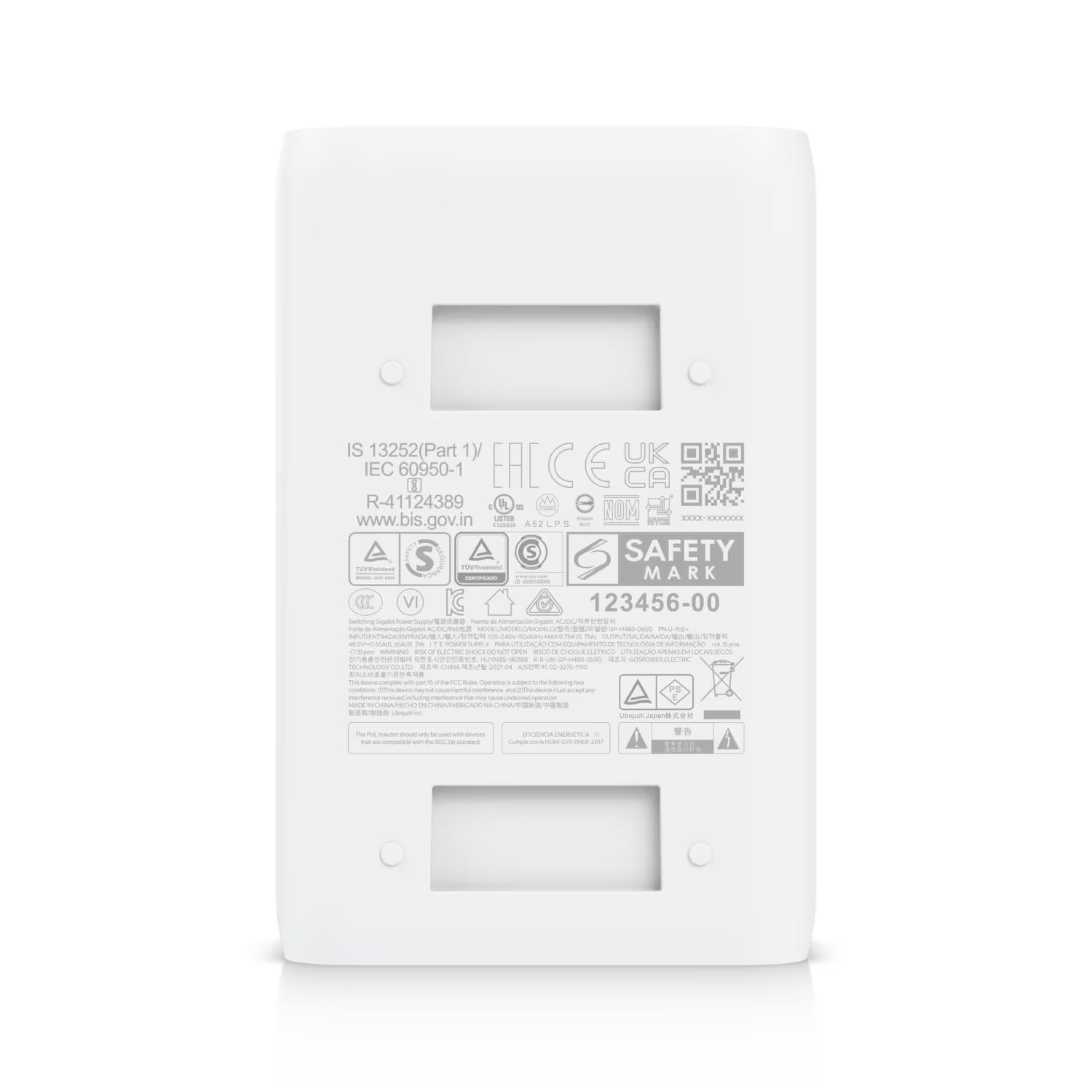

Ubiquiti PoE+ Adapter, 30W of PoE+, RJ45 Data Input, AC Cable, U6 AP Suitable (U6-LR, U6-LITE, U6-PRO&U7-PRO),Replacement for POE-48-24W-G
Model # PoE+ Adapter (30W)
-
SKU: U-POE-AT
$30.00
Stock Availability
🟢Live
ONLINE: ✓ In Stock
Vermont VIC: ✓ In Stock
(Click & Collect Available)
(Click & Collect Available)
IN STOCK
- Pick Up Available
- Australian Warranty
- Checkout Securely
An adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE+ output
LED indicator for status monitoring
Compatibility
U6-LR
UVC-G5-PTZ
U6-IW
UVC-AI-DSLR
UVC-AI-Pro
UDB-Pro
UTP-G3-Touch-Wall
UTP-TouchMax
UA-Ultra
(U-POE-AT)
Technical Specification
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output voltage | 48V DC @ 0.65A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 0.75A max. |
| Inrush current | <100A peak at 26°C |
| Efficiency | 87% |
| Output ripple | 1% max. |
| Switching frequency | 70 kHz max. |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
| SKU | U-POE-AT |
| Barcode # | 817882027236 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2636kg |
| Shipping Width | 0.043m |
| Shipping Height | 0.185m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000795500m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
