24V-class PoE protection
The model is designed for passive PoE systems up to 30V.

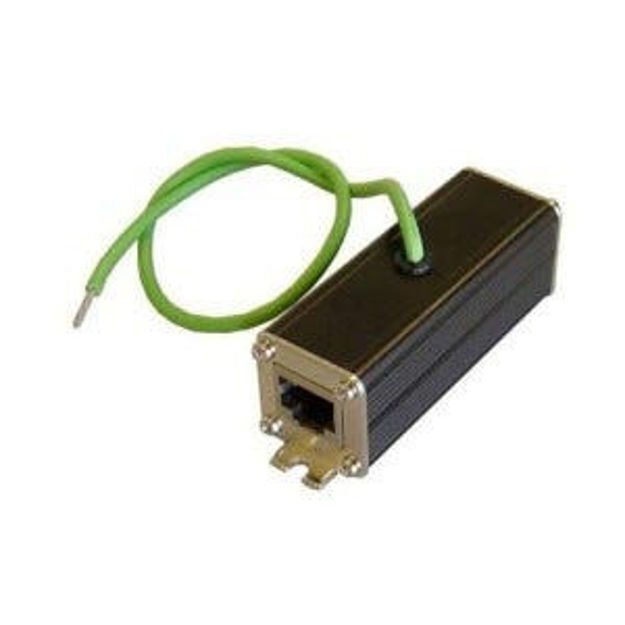

The Tycon Power TP-ESP-1000-POE24 provides inline surge protection for Gigabit Ethernet and passive PoE systems up to 30V, with all eight conductors protected and a current vendor-stated 46V clamp level.
Key supplied and exact-model details for the TP-ESP-1000-POE24.
The model is designed for passive PoE systems up to 30V.
The product title and feature list state 10/100/1000Mb support.
All eight CAT5/6 conductors are protected.
Shielded jacks and a full metal housing support grounding and EMI suppression.
The current product title identifies a 5kA surge rating.
Outdoor use requires installation inside a suitable weatherproof enclosure.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It is intended for passive PoE systems up to 30V.
The current exact-model vendor title states a 46V clamp level.
Yes. The title and feature list state 10/100/1000Mb support.
Yes. Protection is stated across all eight CAT5/6 wires.
Yes. The ground lead must be connected to a suitable earth point.
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-ESP-1000-POE24)
Tycon Power TP-ESP-1000-POE24
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-ESP-1000-POE24 |
| Product type | Inline Gigabit 24V-class PoE surge protector |
| Network and PoE | |
| Network data rate | 10/100/1000Mb |
| PoE voltage compatibility | Passive PoE systems up to 30V |
| Protected conductors | All 8 Ethernet wires |
| Cable compatibility | CAT5 and CAT6 |
| Surge protection | |
| Clamp voltage | 46V |
| Surge rating | 5kA |
| Standard | IEC 61643-21 |
| Physical and environmental | |
| Connectors | Shielded RJ45 |
| Housing | Metal |
| Grounding | Separate ground wire |
| Operating temperature | -40°C to 80°C |
| Outdoor use | Inside a suitable weatherproof enclosure |
| SKU | TP-ESP-1000-POE24 |
| Brand | TYCON POWER |
DeviceDeal is an authorised reseller of Tycon Power. The TP-ESP-1000-POE24 is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
