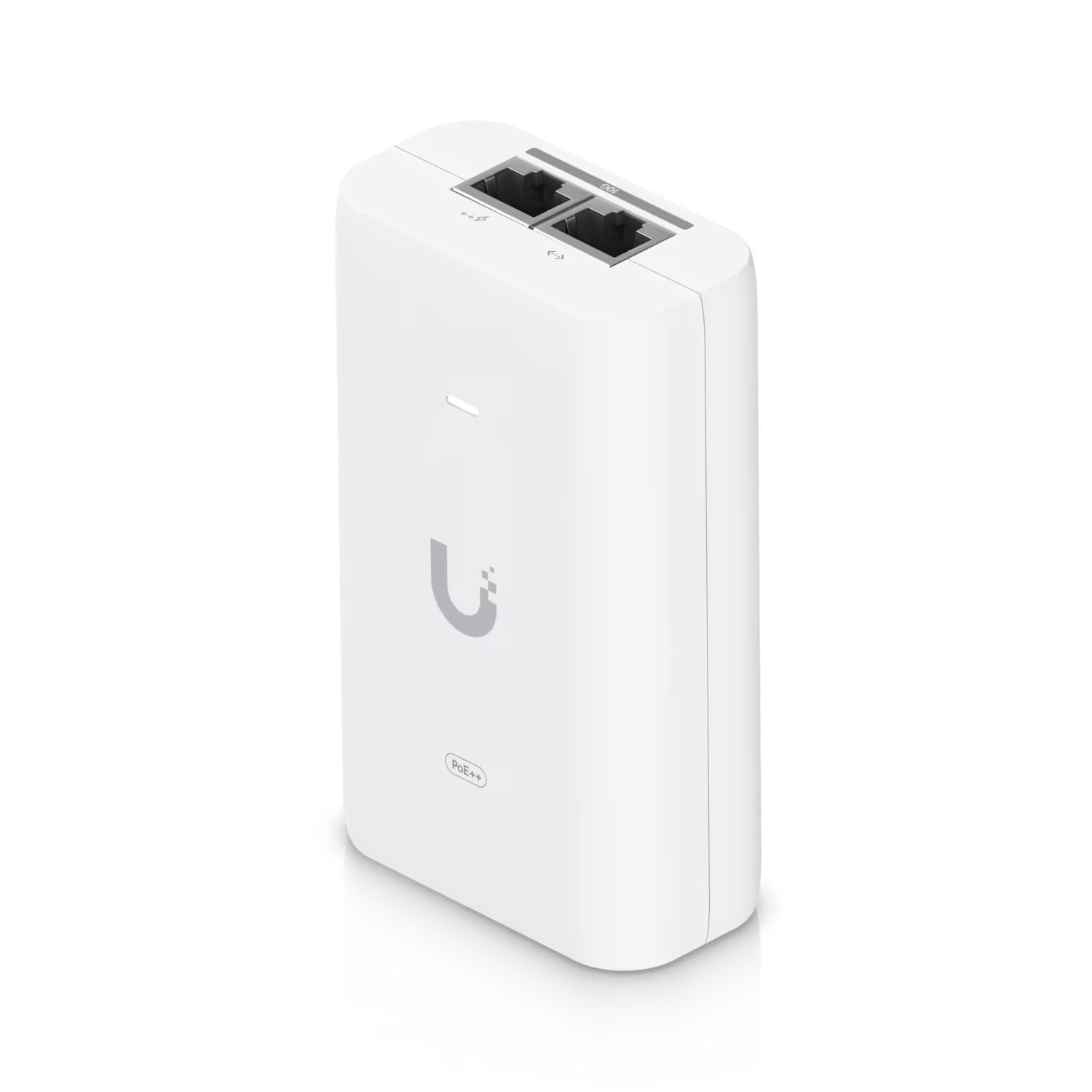

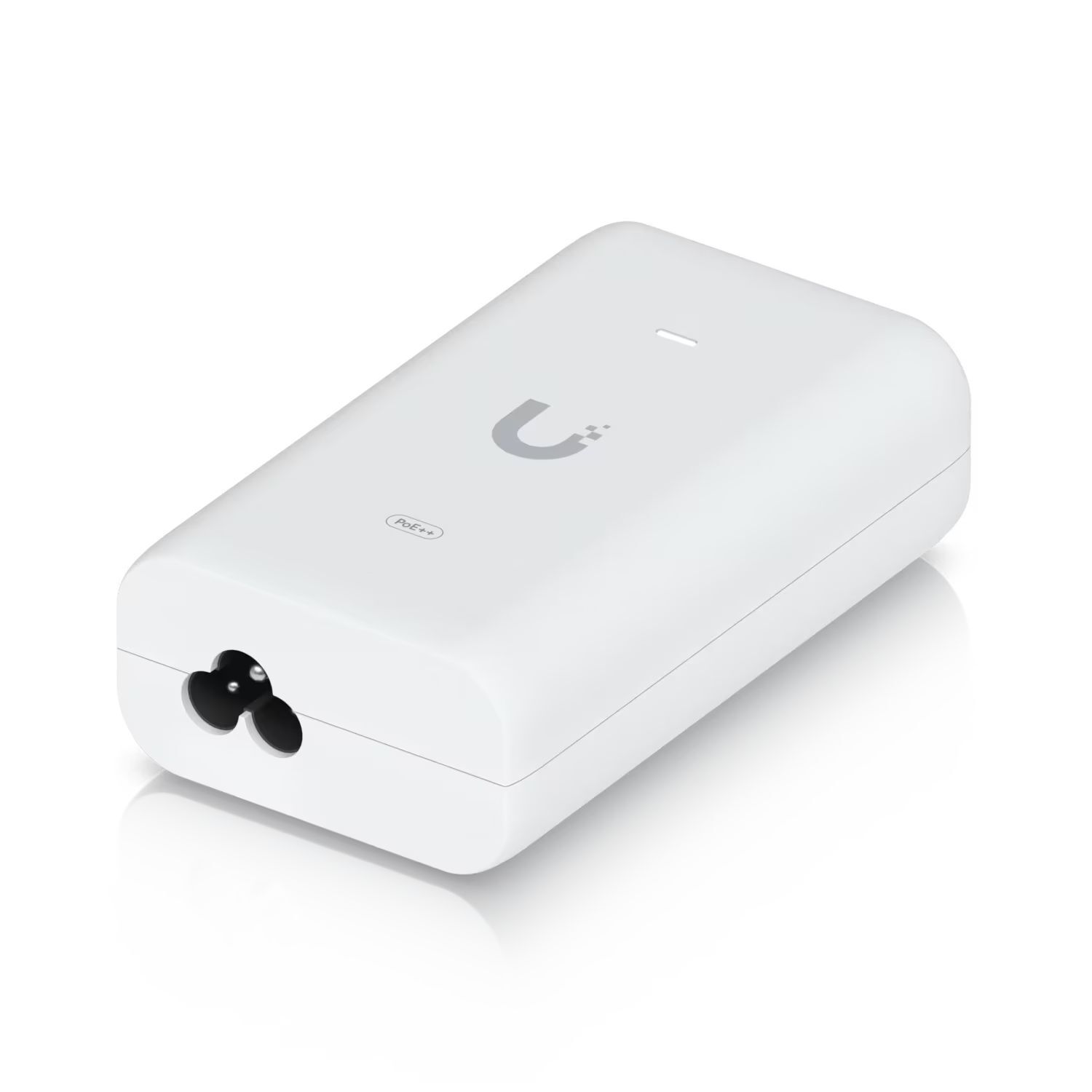

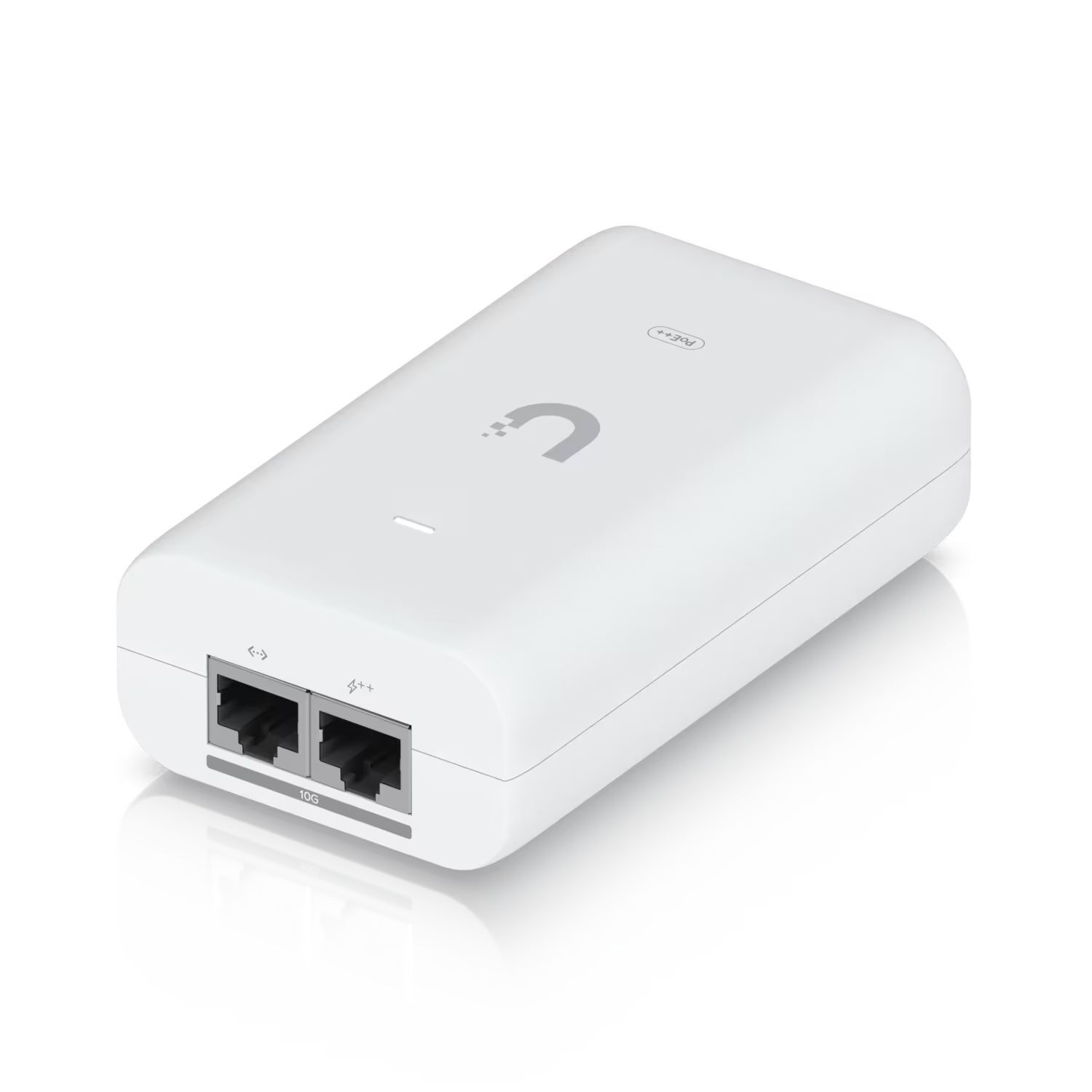

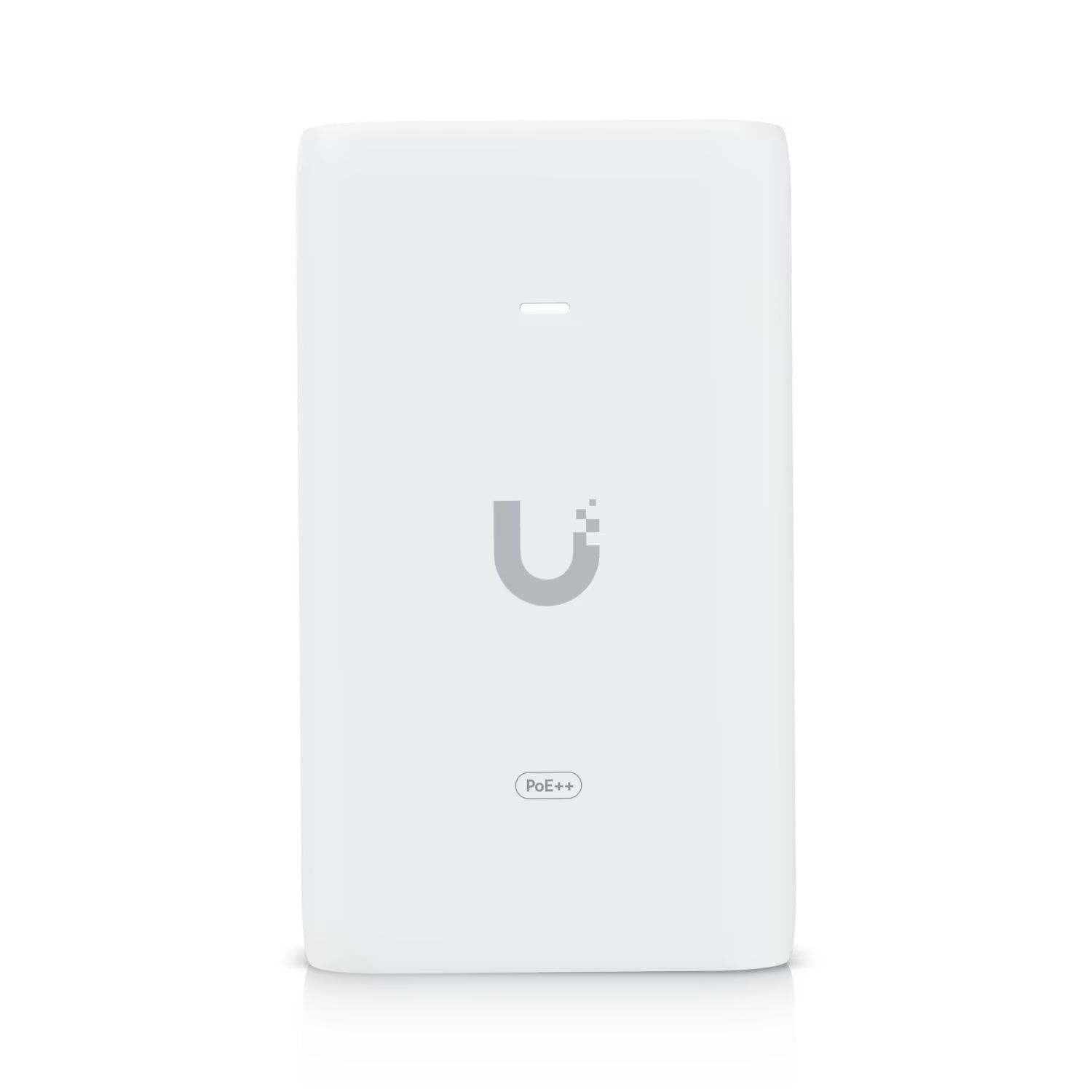

An adapter that can power UniFi PoE++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.

Delivers up to 60W of PoE++

Surge, peak pulse, and overcurrent protection

Contains RJ45 data input, AC cable with earth ground, and PoE++ output

LED indicator for status monitoring

Compatibility:

E7, E7-Campus, E7-Audience

Ubiquiti Rack Ear Kit 1U, Replacement Rack Ears For UniFi 1U Rack-mount Devices, Included Precision Rack Mount Inserts & Screws

(UACC-PoE-PLUS-PLUS-10G)

Dimensions	106 x 63 x 34 mm (4.2 x 2.5 x 1.3")
Weight	210 g (7.4 oz)
Output voltage	54V DC @ 1.12A
LAN activity indicator	No
Gigabit LAN port	Yes, up to 10 GbE
Remote reset capability	No
Reset button	No
Rated voltage	100—240V AC @ 50/60Hz
Input current	1.5A max.
Inrush current	<150A peak @ 230V AC
Efficiency	>88%
Output ripple	1% max.
Switching frequency	65 kHz
Line regulation	≤ 2%
Load regulation	≤ 5%
2-pair powering	No
4-pair powering	Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Data In / PoE	RJ45 shielded socket
Surge protection	Difference and common mode
Clamping protection	11V data, 60V power
Max. surge discharge	1500A (8/20 μs) power
Peak pulse current	36A (10/1000 μs) data
Shunt capacitance	<5 pF data
Response time	<1 ns
Max. PoE+ wattage per port by PSE	60W
Ambient operating temperature	0 to 40° C (32 to 104° F)
Storage temperature	-30 to 70°C (-22 to 158° F)
Ambient operating humidity	10 to 95% noncondensing
Certifications	CE, FCC, IC, UL, UKCA, KC, CCC, RoHS

SKU	UACC-PoE-PLUS-PLUS-10G
Barcode #	810084699805
Brand	UBIQUITI
Shipping Weight	0.2000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty
