StarTech.com · POEINJ1GW

StarTech 1-Port Gigabit Midspan, PoE+ Injector - POEINJ1GW

Single-port Gigabit PoE+ midspan injector delivering up to 30W of power and data to a compatible device over one network cable.

Quick answer: Adds IEEE 802.3af/at PoE to one Gigabit Ethernet link, carrying data and up to 30W over cable runs up to 100m.

Best forPowering one compatible access point, IP camera, VoIP phone or other PoE/PoE+ device where no PoE switch is available.

Check before orderingThe powered device must support IEEE 802.3af or 802.3at; the injector does not apply power to non-compliant devices.

Answers before you buy

Frequently asked questions

What does POEINJ1GW do?

Adds IEEE 802.3af/at PoE to one Gigabit Ethernet link, carrying data and up to 30W over cable runs up to 100m.

Who is this product best for?

Powering one compatible access point, IP camera, VoIP phone or other PoE/PoE+ device where no PoE switch is available.

What should I check before ordering?

The powered device must support IEEE 802.3af or 802.3at; the injector does not apply power to non-compliant devices.

Does it require drivers or software?

No software or configuration is required; power detection and delivery are automatic for compliant powered devices.

What is included in the package?

Gigabit PoE+ midspan injector, universal power adapter, regional power cords, mounting bracket and documentation.

What is the key installation requirement?

Connect the LAN port to the network, the PoE port to a compliant device with suitable Ethernet cabling, then attach AC power.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

POEINJ1GW carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(POEINJ1GW)

Features & highlights

Why choose POEINJ1GW?

?Up to 30W PoE+Powers one compatible IEEE 802.3at device.

?Gigabit dataMaintains 10/100/1000Mbps Ethernet connectivity.

?Up to 100mSupports standard Ethernet channel distance.

?Automatic detectionApplies power only after identifying a compliant device.

?Surface-mount optionBracket supports neat fixed installation.

?Plug-and-play operationAdds PoE without replacing the existing network switch.

Compatibility reminder: The powered device must support IEEE 802.3af or 802.3at; the injector does not apply power to non-compliant devices.

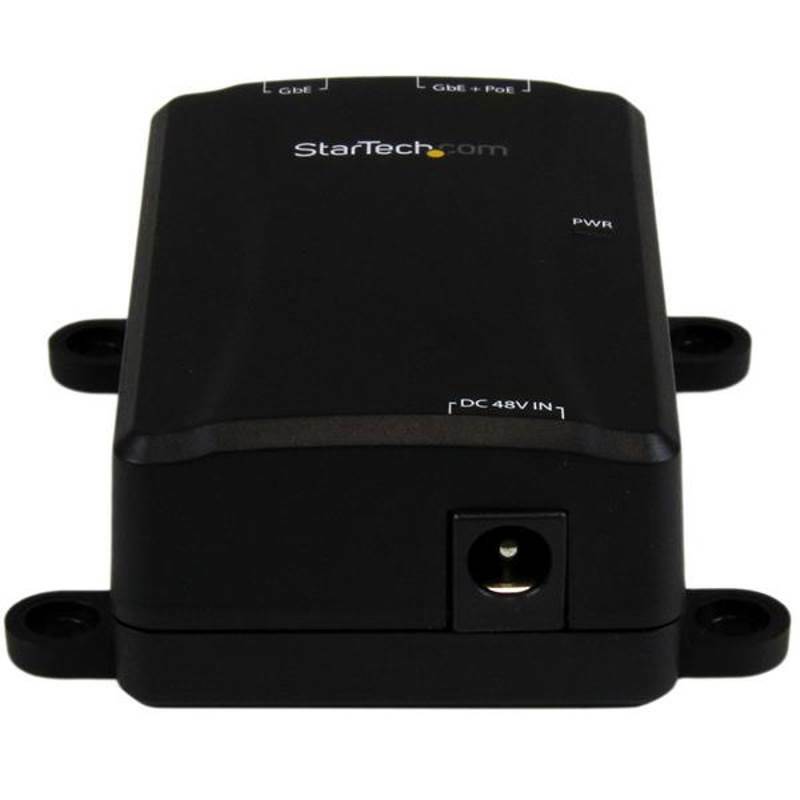

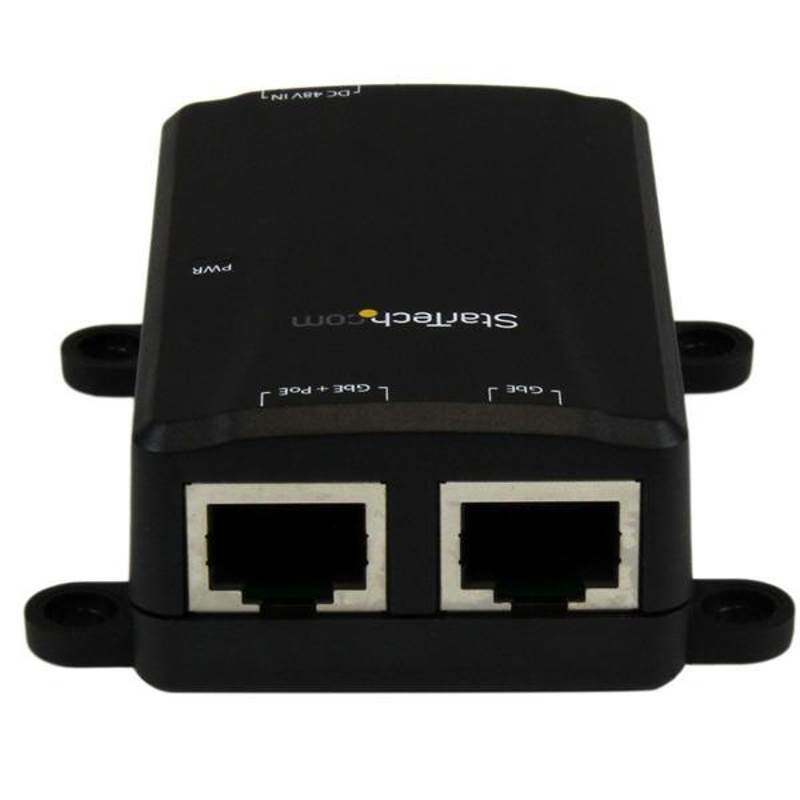

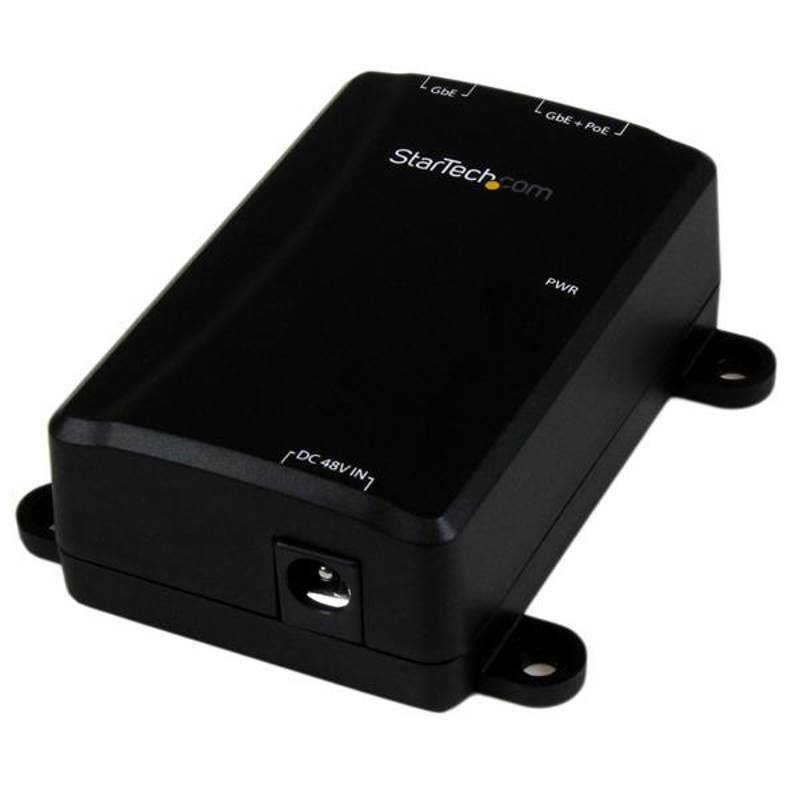

StarTech 1-Port Gigabit Midspan, PoE+ Injector - POEINJ1GW product image

Technical specifications

POEINJ1GW specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Industry Standards	IEEE 802.3af PoE, IEEE 802.3at PoE+
Ports	1
Performance
Maximum Cable Length	328 ft [100 m]
Maximum Data Transfer Rate	2 Gbps (Full-Duplex)
Power Output	48 V DC, 30 W
Connector(s)
Connector Type(s)	2 - RJ-45 Female
Special Notes / Requirements
Patents and Licenses	The following patents are licensed for this product. This list might not be all inclusive.; • United States Patent No. 5,406,260 (expired); • United States Patent No. 6,650,622; • United States Patent No. 7,457,250; • United States Patent No. 8,155,012; • United States Patent No. 8,902,760; • United States Patent No. 8,942,107; • United States Patent No. 9,019,838; • United States Patent No. 9,049,019; • United States Patent Application No. 14/695,456; • United States Patent Application No. 14/726,940
System and Cable Requirements	If your connected devices do not meet the IEEE 802.3af or IEEE 802.3at PoE standard, then the POEINJ1GW will not inject power to the connected device(s) / Ethernet cable(s)
Indicators
LED Indicators	1 - Power
Power
Center Tip Polarity	Positive
Input Current	0.75 A
Input Voltage	100 - 240 AC
Output Current	0. 64 A
Output Voltage	56 DC
Plug Type	M
Power Consumption (In Watts)	36
Power Source	AC Adapter Included
Environmental
Humidity	10~90% RH (Non-Condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 85°C (-4°F to 185°F)
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	1 in [2.5 cm]
Product Length	2.8 in [70 mm]
Product Width	2.5 in [63 mm]
Weight of Product	1.8 oz [50 g]
Packaging Information
Package Height	3 in [76 mm]
Package Length	7.5 in [19 cm]
Package Width	9.1 in [23 cm]
Shipping (Package) Weight	2.3 lb [1 kg]
What's in the Box
Included in Package	1 - Gigabit midspan
Additional Items	1 - universal power adapter; 4 - power cords (NA/EU/UK/AU); 1 - surface-mount bracket; 1 - instruction manual

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	POEINJ1GW
Barcode #	65030865500
Brand	STARTECH
Shipping Weight	1.0300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.230m
Shipping Cubic	0.001150000m3
