HARDWARE FEATURES

Interface

• 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port

• 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port

• 12V / 9V / 5V DC OUT Power Output Port

Network Media

• 10BASE-T:2-pair UTP/STP of Cat. 3,4,5 (maximum 100 m)

• 100BASE-TX:2-pair UTP/STP of Cat. 5 or above (maximum 100 m)

• 1000BASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)

• 2.5GBASE-T:4-pair UTP/STP of Cat. 5e or above (maximum 100 m)

Power Supply

12VDC/ 2A,9VDC/ 2A or 5VDC/ 2A

Basic Function

• Compatible With IEEE 802.3af/at Compliant PSEs

• Delivers Power Up To 100 Meters

• Optional 12VDC, 9VDC or 5VDC Power Output

LED

PWR

Dimensions ( W x D x H )

3.2 × 2.1 × 0.9 in. (80.8 × 54 × 24 mm)

SOFTWARE FEATURES

Basic Function

• Compatible With IEEE 802.3af/at Compliant PSEs

• Delivers Power Up To 100 Meters

• Optional 12VDC, 9VDC or 5VDC Power Supply

OTHERS

Certification

FCC, CE, RoHS

Package Content

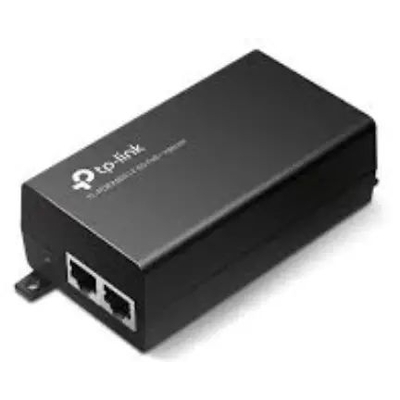

• POE260R

• Power Cord

• Installation Guide

Environment

• Operating Temperature:-5℃~45℃ (23℉~113℉)

• Storage Temperature: -40℃~70℃ (-40℉~158℉)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
