DC-to-DC PoE conversion
The TP-DCDC-2456GD-BT converts the stated 18-36VDC DC input for delivery through its integrated PoE output.

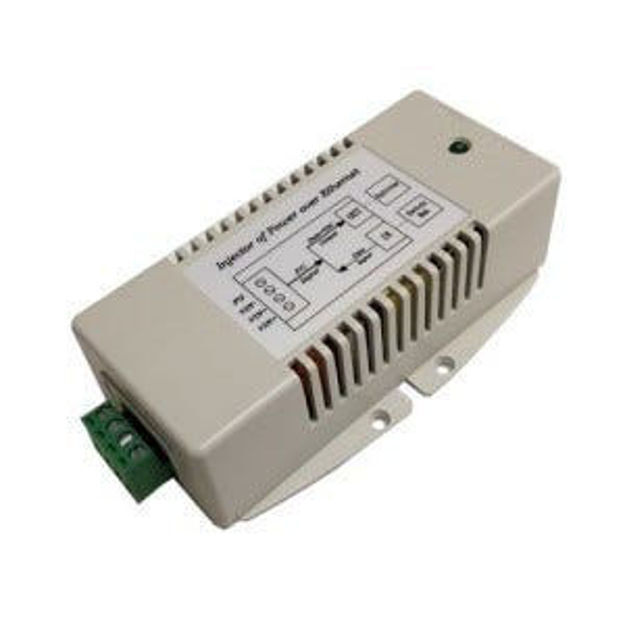

Tycon Power TP-DCDC-2456GD-BT
The Tycon Power TP-DCDC-2456GD-BT accepts 18-36VDC and delivers up to 70W of 56V IEEE 802.3bt PoE across all four pairs, with manufacturer-stated 10G throughput up to 80m.
Product highlights
Verified product information is organised below to support faster comparison and more confident installation planning.
The TP-DCDC-2456GD-BT converts the stated 18-36VDC DC input for delivery through its integrated PoE output.
The output is specified as 56VDC IEEE 802.3bt PoE.
The exact-model output rating is stated as 70W.
The supported data rate is identified as Up to 10 Gigabit at cable lengths up to 80m.
The PoE output uses 4-pair (8-wire) according to the exact product information.
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
A low-voltage disconnect function is stated for battery-powered installations.
Short-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also stated.
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
The Tycon Power TP-DCDC-2456GD-BT accepts 18-36VDC and delivers up to 70W of 56V IEEE 802.3bt PoE across all four pairs, with manufacturer-stated 10G throughput up to 80m.
The specified DC input is 18-36VDC.
The output is 56VDC IEEE 802.3bt PoE with a stated maximum of 70W.
The product information identifies Up to 10 Gigabit at cable lengths up to 80m data support.
The product is specified for 4-pair (8-wire) power delivery.
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
Yes. The manufacturer states backward compatibility with IEEE 802.3at and IEEE 802.3af powered devices.
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DCDC-2456GD-BT)
Technical specifications
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-2456GD-BT |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 18-36VDC |
| PoE output voltage | 56VDC |
| PoE output type | IEEE 802.3bt PoE |
| Maximum output power | 70W |
| Powered pairs | 4-pair (8-wire) |
| Networking | |
| Network data rate | Up to 10 Gigabit at cable lengths up to 80m |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Low-voltage disconnect | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection; surge and overload protection are also stated. |
| Operating temperature | -40°C to 70°C |
| Housing material | UV ABS 94V0 plastic |
| SKU | TP-DCDC-2456GD-BT |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
