DC-to-DC PoE conversion
The TP-DC-1256G-VHP converts the stated 10-60VDC DC input for delivery through its integrated PoE output.

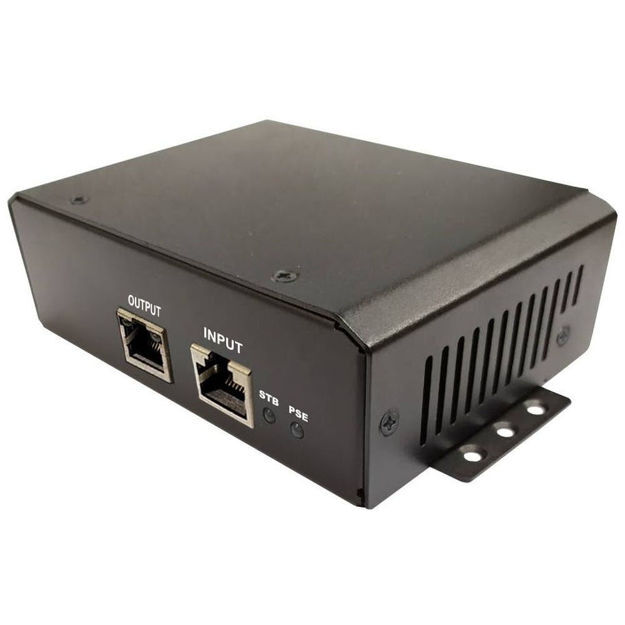

Tycon Power TP-DC-1256G-VHP
The Tycon Power TP-DC-1256G-VHP is a wide-input DC-to-DC converter that accepts 10-60VDC and provides 56V 70W four-pair passive PoE with an Ethernet data path.
Product highlights
Verified product information is organised below to support faster comparison and more confident installation planning.
The TP-DC-1256G-VHP converts the stated 10-60VDC DC input for delivery through its integrated PoE output.
The output is specified as 56VDC passive PoE.
The exact-model output rating is stated as 70W.
The supported data rate is identified as Gigabit Ethernet.
The PoE output uses 4-pair (8-wire) according to the exact product information.
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
A low-voltage disconnect function is stated for battery-powered installations.
Short-circuit, over-current and reverse/over-voltage protection; low-voltage and surge protection are also stated.
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
The Tycon Power TP-DC-1256G-VHP is a wide-input DC-to-DC converter that accepts 10-60VDC and provides 56V 70W four-pair passive PoE with an Ethernet data path.
The specified DC input is 10-60VDC.
The output is 56VDC passive PoE with a stated maximum of 70W.
The product information identifies Gigabit Ethernet data support.
The product is specified for 4-pair (8-wire) power delivery.
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DC-1256G-VHP)
Technical specifications
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DC-1256G-VHP |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 10-60VDC |
| PoE output voltage | 56VDC |
| PoE output type | passive PoE |
| Maximum output power | 70W |
| Powered pairs | 4-pair (8-wire) |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Low-voltage disconnect | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection; low-voltage and surge protection are also stated. |
| Operating temperature | -40°C to 70°C |
| Housing material | Metal |
| DIN-rail mounting | DIN-rail mounting kit included |
| Physical | |
| Wire terminal capacity | Up to 12AWG, as supplied |
| Dimensions | 125 x 95 x 38mm |
| Weight | 255g |
| SKU | TP-DC-1256G-VHP |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
DeviceDeal authorised reseller
DeviceDeal is an authorised reseller of Tycon Power. TP-DC-1256G-VHP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturers current terms, eligibility requirements and product assessment.
