IEEE 802.3at output
The exact model supplies standards-based high-power PoE.

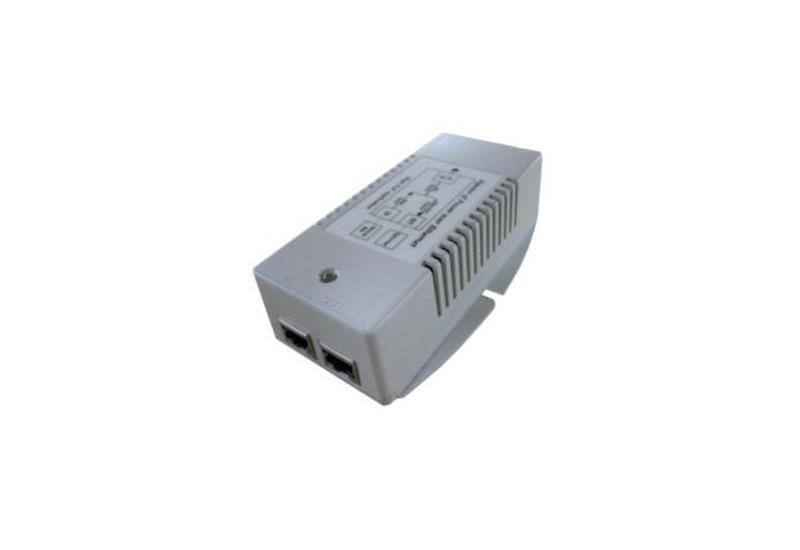

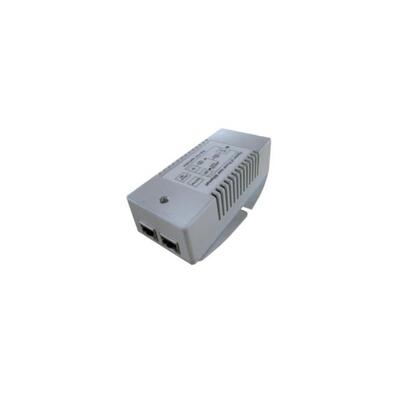

The Tycon Power TP-POE-HP-48GD accepts autoranging AC input and provides a 56V IEEE 802.3at PoE output rated up to 35W with Gigabit Ethernet.
Key supplied and exact-model details for the TP-POE-HP-48GD.
The exact model supplies standards-based high-power PoE.
The current exact-model page identifies a 35W maximum output.
The G model supports 10/100/1000Mb data.
The internal switching supply accepts a broad AC input range.
The manufacturer states remote powering through CAT5/6 cable up to 100m.
Ethernet and AC surge protection plus short-circuit, over-current and over-voltage protection are stated.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It converts AC power to 56V IEEE 802.3at PoE while passing Gigabit Ethernet data.
The current exact-model vendor page states 35W.
Yes. It supports 10/100/1000Mb data.
The autoranging supply accepts 100-240VAC nominal input, with a stated 90-264VAC operating range.
Yes. Ethernet and AC surge protection are stated.
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-POE-HP-48GD)
Tycon Power TP-POE-HP-48GD
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-POE-HP-48GD |
| Product type | AC-powered high-power Gigabit IEEE 802.3at PoE injector |
| Power and PoE | |
| AC input | 100-240VAC nominal; 90-264VAC, 50/60Hz stated |
| PoE output voltage | 56VDC |
| PoE standard | IEEE 802.3at |
| Maximum output power | 35W |
| Networking | |
| Network data rate | 10/100/1000Mb Gigabit Ethernet |
| Maximum stated cable distance | Up to 100m |
| Environmental and protection | |
| Protection | Ethernet and AC surge protection; short-circuit, over-current, overload and over-voltage protection |
| Operating temperature | -30°C to 60°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| Mounting | Floor, desktop or wall |
| SKU | TP-POE-HP-48GD |
| Brand | TYCON POWER |
| Shipping Weight | 0.3000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-POE-HP-48GD is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
