Tycon Power • TP-DCDC-2448G-HP

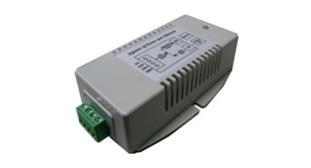

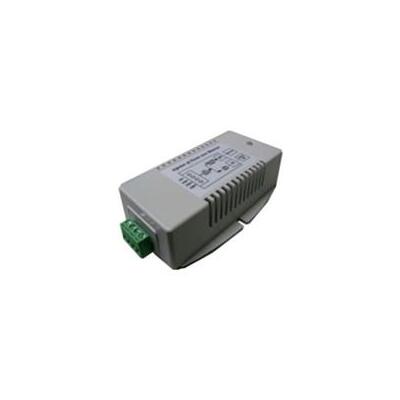

Tycon Power TP-DCDC-2448G-HP 18-36VDC to 56V 50W Gigabit Passive PoE Injector

The Tycon Power TP-DCDC-2448G-HP accepts 18-36VDC and supplies a 56V passive PoE output rated up to 50W with Gigabit Ethernet data support.

18-36VDC input 56V passive PoE 50W output Gigabit Ethernet Dual DC inputs

Product highlights

Features and capabilities

Verified product information is organised below to support faster comparison and more confident installation planning.

DC-to-DC PoE conversion

The TP-DCDC-2448G-HP converts the stated 18-36VDC DC input for delivery through its integrated PoE output.

PoE output

The output is specified as 56VDC passive PoE.

Power capacity

The exact-model output rating is stated as 50W.

Ethernet data path

The supported data rate is identified as Gigabit Ethernet.

Dual DC inputs

Two DC inputs are provided for connecting two power sources, such as primary and backup sources.

Electrical protection

Short-circuit, over-current and reverse/over-voltage protection.

?

Authorised reseller and manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.

Frequently asked questions

Before you buy

What does the TP-DCDC-2448G-HP do?

The Tycon Power TP-DCDC-2448G-HP accepts 18-36VDC and supplies a 56V passive PoE output rated up to 50W with Gigabit Ethernet data support.

What DC input range is required?

The specified DC input is 18-36VDC.

What PoE output is provided?

The output is 56VDC passive PoE with a stated maximum of 50W.

What network speed is supported?

The product information identifies Gigabit Ethernet data support.

Can two DC power sources be connected?

Yes. Two DC inputs are provided for primary and backup power-source arrangements.

What warranty applies?

DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.

(TP-DCDC-2448G-HP)

Technical specifications

Tycon Power TP-DCDC-2448G-HP 18-36VDC to 56V 50W Gigabit Passive PoE Injector

Product details
BrandTycon Power
ModelTP-DCDC-2448G-HP
Product typeDC-to-DC PoE injector / converter
PoE output ports1
Power and PoE
DC input18-36VDC
PoE output voltage56VDC
PoE output typepassive PoE
Maximum output power50W
Networking
Network data rateGigabit Ethernet
Protection and construction
Dual DC inputsYes
Input/output isolationYes
Protection featuresShort-circuit, over-current and reverse/over-voltage protection.
Operating temperature-40°C to 70°C
Housing materialUV ABS 94V0 plastic
SKU TP-DCDC-2448G-HP
Brand TYCON POWER
Shipping Weight 0.4000kg

DeviceDeal authorised reseller

Tycon Power manufacturer warranty

DeviceDeal is an authorised reseller of Tycon Power. TP-DCDC-2448G-HP is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Warranty coverageApplicable manufacturer warranty
Proof of purchaseRetain the DeviceDeal tax invoice or order record.
AssessmentClaims are reviewed under the manufacturer’s warranty process.
Warranty service does not guarantee automatic approval, replacement or on-site support. Please keep the product model and serial details available when requesting assistance.
