Features:

• Remotely Power Equipment thru CAT5 Cable up to 100m

• Autoranging Switching Power Supply

• Short Circuit, Over Current and Over Voltage Protection

• Built in surge protection

• High Temperature Operation to 60°C

• Compact size Floor / Desktop / Wall Mount

• CE/FCC/UL/CB Approved

Applications:

• Wireless Access Points and Client Devices

• IP Phone and Security Camera Systems

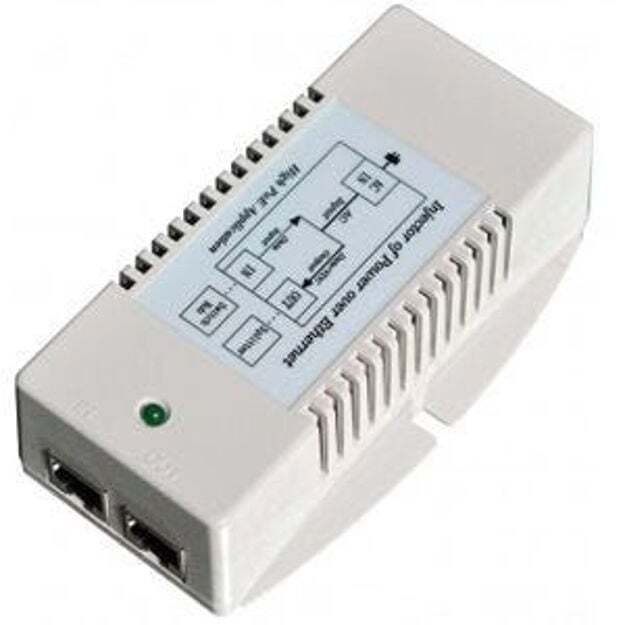

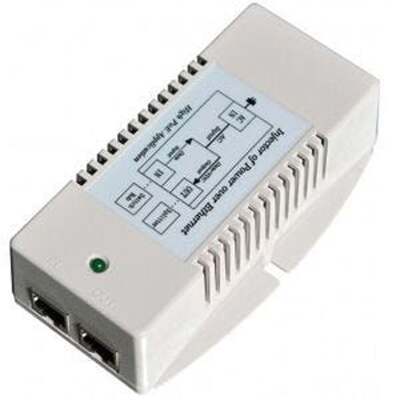

24V 36W Gigabit High Power Passive PoE Power Inserter, Surge Protected

The TP-POE-HP-24G High PoE Power Source offered by Tycon Power Systems is a quality power injector providing years of reliable operation even in the toughest conditions.

It accepts Gigabit data-in on a shielded RJ45 Jack and provides Gigabit data-out and power on a shielded RJ45 output jack. They work by supplying power to the remote device on the Ethernet pins 4,5(V+) and 7,8(V-). The Ethernet spec supports distances up to 100m (328 feet).

The TP-POE-HP are autoranging so that they accept AC inputs from 90VAC to 264VAC (50/60 Hz) and they supply 5% regulated 24V DC voltage at 36W on the output. They have various protections for surge, short circuit and overload.

Dimensions: 125 x 75 x 38mm (4.9 x 3 x 1.5in)

Weight: 300g (10.6oz)
