DC-to-DC PoE conversion
The TP-DCDC-1248G-HP converts the stated 10-15VDC DC input for delivery through its integrated PoE output.

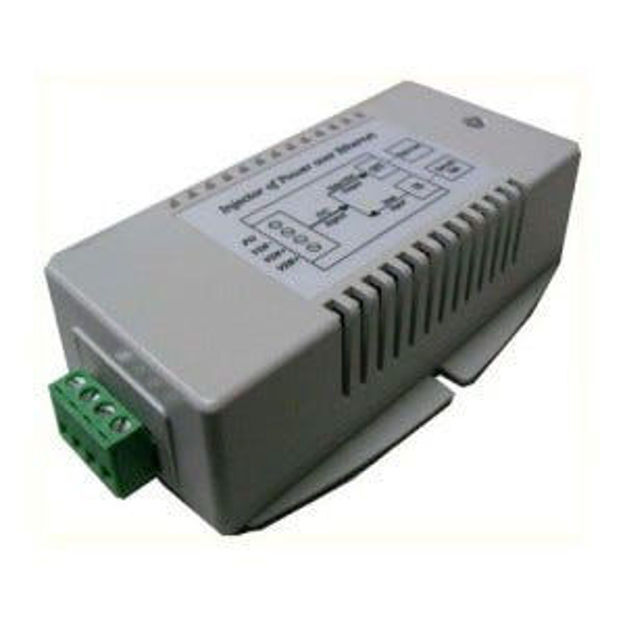

Tycon Power TP-DCDC-1248G-HP
The Tycon Power TP-DCDC-1248G-HP accepts 10-15VDC and supplies a 56V passive PoE output rated up to 50W with Gigabit Ethernet data support.
Product highlights
Verified product information is organised below to support faster comparison and more confident installation planning.
The TP-DCDC-1248G-HP converts the stated 10-15VDC DC input for delivery through its integrated PoE output.
The output is specified as 56VDC passive PoE.
The exact-model output rating is stated as 50W.
The supported data rate is identified as Gigabit Ethernet.
Two DC inputs are provided for connecting two power sources, such as primary and backup sources.
Short-circuit, over-current and reverse/over-voltage protection.
DeviceDeal is an authorised reseller of Tycon Power. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms, eligibility requirements and product assessment.
Frequently asked questions
The Tycon Power TP-DCDC-1248G-HP accepts 10-15VDC and supplies a 56V passive PoE output rated up to 50W with Gigabit Ethernet data support.
The specified DC input is 10-15VDC.
The output is 56VDC passive PoE with a stated maximum of 50W.
The product information identifies Gigabit Ethernet data support.
Yes. Two DC inputs are provided for primary and backup power-source arrangements.
DeviceDeal is an authorised reseller of Tycon Power. This product is covered by the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer's terms and product assessment. A specific warranty duration is not stated in the verified information.
(TP-DCDC-1248G-HP)
Technical specifications
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-1248G-HP |
| Product type | DC-to-DC PoE injector / converter |
| PoE output ports | 1 |
| Power and PoE | |
| DC input | 10-15VDC |
| PoE output voltage | 56VDC |
| PoE output type | passive PoE |
| Maximum output power | 50W |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Protection and construction | |
| Dual DC inputs | Yes |
| Input/output isolation | Yes |
| Protection features | Short-circuit, over-current and reverse/over-voltage protection. |
| Operating temperature | -40°C to 70°C |
| Housing material | UV ABS 94V0 plastic |
| SKU | TP-DCDC-1248G-HP |
| Brand | TYCON POWER |
