DC-to-DC conversion
The unit converts 36-72VDC input power to a regulated 24VDC output.

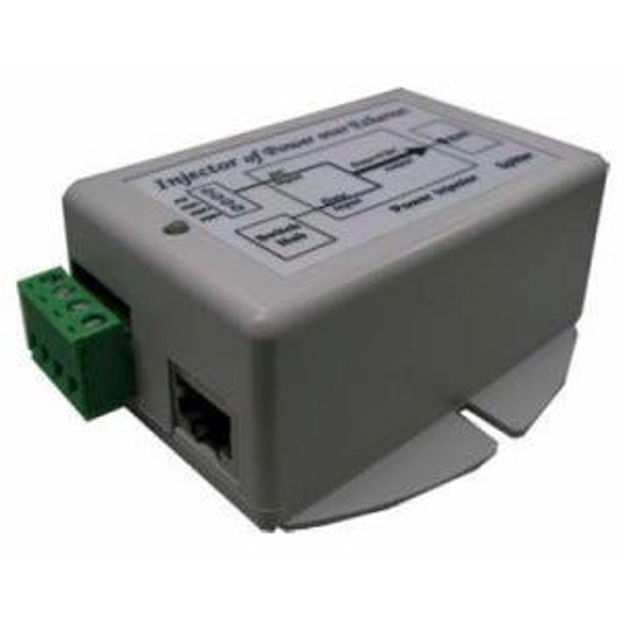

Tycon Power TP-DCDC-4824G 36-72VDC to 24V 24W Gigabit Passive PoE Injector
Model # TP-DCDC-4824G
-
SKU: TP-DCDC-4824G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TP-DCDC-4824G
Tycon Power TP-DCDC-4824G 36-72VDC to 24V 24W Gigabit Passive PoE Injector
The Tycon Power TP-DCDC-4824G converts a 36-72VDC source to a regulated 24V passive PoE output up to 24W while carrying Gigabit Ethernet data.
36-72VDC input 24V passive PoE 24W output Gigabit Ethernet Dual DC inputs
Product highlights
Key supplied and exact-model details for the TP-DCDC-4824G.
Gigabit PoE insertion
An integrated 10/100/1000Mb PoE inserter carries data and power on the output connection.
24W output capacity
Maximum exact-model PoE output is stated as 24W.
Dual isolated inputs
Two isolated DC inputs support primary and backup source arrangements.
Protected output
Short-circuit, over-current, reverse-voltage, over-voltage, surge and overload protection are stated.
Compact construction
The exact page identifies a compact UV-resistant ABS housing.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
What does the TP-DCDC-4824G do?
It converts 36-72VDC input power to 24V passive PoE while passing Gigabit Ethernet data.
How much output power is available?
The exact model is rated for up to 24W.
Does it support Gigabit Ethernet?
Yes. The integrated data path supports 10/100/1000Mb Ethernet.
Can two DC sources be connected?
Yes. The unit provides two isolated DC inputs.
Will it negotiate power with an IEEE PoE device?
The exact output is identified as 24V passive PoE, so compatibility must be verified before connection.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-DCDC-4824G)
Technical specifications
Tycon Power TP-DCDC-4824G
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-4824G |
| Product type | DC-to-DC Gigabit passive PoE injector |
| Power and PoE | |
| DC input | 36-72VDC |
| PoE output voltage | 24VDC |
| PoE output type | Passive PoE |
| Maximum output power | 24W |
| DC inputs | Two isolated inputs |
| Networking | |
| Network data rate | 10/100/1000Mb Gigabit Ethernet |
| Power pairs | Pins 4,5 (+) and 7,8 (-) |
| Environmental and construction | |
| Protection | Short-circuit, over-current, reverse/over-voltage, surge and overload protection |
| Operating temperature | -30°C to 60°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| SKU | TP-DCDC-4824G |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
DeviceDeal authorised reseller
Tycon Power manufacturer warranty
DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-4824G is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Manufacturer warranty The applicable Tycon Power manufacturer warranty applies. No unverified warranty duration has been stated.
Keep your proof of purchase Retain your DeviceDeal tax invoice or order record to support a warranty request.
Assessment process Eligibility and the available remedy are determined under Tycon Power’s warranty terms and product assessment process.
Warranty approval, replacement, repair or other remedy is not automatic and is not represented as on-site service.
