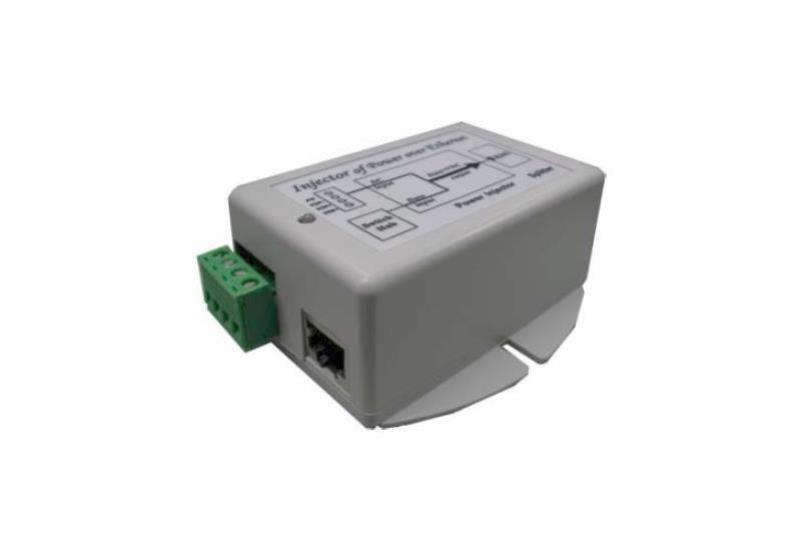

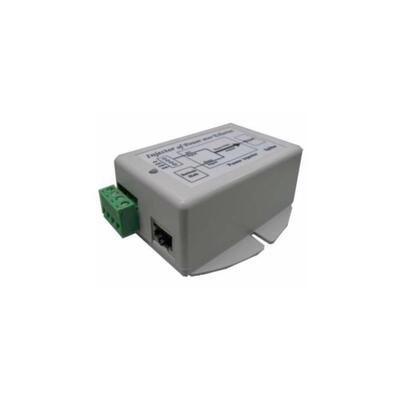

Tycon Power TP-DCDC-1224G 24V Passive POE Output Gigabit Injector



Features
• Input Voltage 9-36VDC; Output 24VDC (Passive)
• Integrated Gigabit PoE Inserter
• High Power 19W
• Short Circuit, Over Current and Over Voltage Protection
• High Temperature Operation
• Removable Wire Terminal Input for up to 12AWG wires
• I.T.E. Power Supply, UL Listed

The TP-DCDC-1224G is a low cost and high efficiency solution for those requiring Passive Power over Ethernet from a 12VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the power and data output to the CAT5/6 Ethernet cable. The output voltage is regulated and protected.

They have a common (-) and two (+) for connecting 2 power sources, such as a primary with a backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and PoE power on the shielded RJ45 output jack. It works by supplying power on Ethernet pins 4,5(V+) and 7,8(V-). This converter has various protections for surge, short circuit and overload. Other models have power outputs up to 24W.

Dimensions:
85 x 76 x 36mm (3.4 x 3 x 1.4in)
Weight: 134g (4.7oz)

(TP-DCDC-1224G)

SKU TP-DCDC-1224G
Barcode # 5706998932464
Brand Ubiquiti
Shipping Weight 0.5000kg
Shipping Width 0.040m
Shipping Height 0.220m
Shipping Length 0.110m
Shipping Cubic 0.001060000m3

Manufacturer Warranty: 12 Months Limited Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Tycon Power TP-DCDC-1224G 24V Passive POE Output Gigabit Injector.

Model # TP-DCDC-1224G

  • SKU: TP-DCDC-1224G

$88.00
$95.04
SAVE $7.04 (7%)
In Stock
