Dual-USB power input
Two USB connections combine available power for the converter.

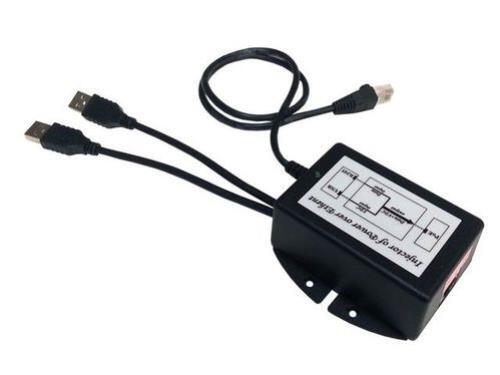

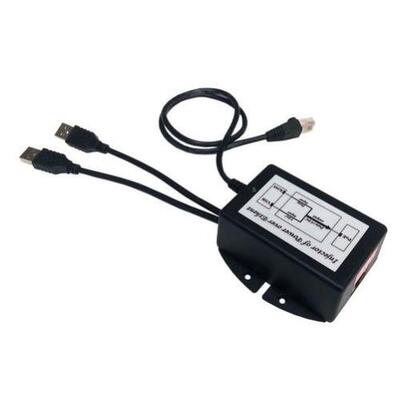

The Tycon Power TP-DCDC-2USB-24 combines power from two USB sources and provides up to 12W of 24V passive PoE for compatible 10/100 Ethernet equipment.
Key supplied and exact-model details for the TP-DCDC-2USB-24.
Two USB connections combine available power for the converter.
The unit delivers 24V passive PoE on the stated Ethernet power pairs.
Maximum passive PoE output power is specified as 12W.
The data path is compatible with 10/100Mb Ethernet.
The manufacturer states Ethernet operation over cable runs up to 100m.
Short-circuit, over-current, overload and over-voltage protection are stated.
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Helpful answers based on the supplied and exact-model product information.
It combines power from two USB sources and converts it to 24V passive PoE.
The maximum stated passive PoE output is 12W.
The product supports 10/100Mb Ethernet.
No. The output is 24V passive PoE, so the connected equipment must explicitly support that voltage and pair assignment.
The two USB inputs are used together to provide the available power for the 12W PoE output.
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-DCDC-2USB-24)
Tycon Power TP-DCDC-2USB-24
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-DCDC-2USB-24 |
| Product type | USB-powered passive PoE injector / DC converter |
| Power and PoE | |
| Power input | Two USB power inputs |
| PoE output voltage | 24VDC |
| PoE output type | Passive PoE |
| Maximum output power | 12W |
| Power pairs | Pins 4,5 (+) and 7,8 (-) |
| Networking | |
| Network data rate | 10/100Mb |
| Maximum stated cable distance | Up to 100m |
| Environmental and construction | |
| Protection | Short-circuit, over-current, overload and over-voltage protection |
| Operating temperature | -30°C to 50°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| SKU | TP-DCDC-2USB-24 |
| Brand | TYCON POWER |
| Shipping Weight | 0.2000kg |
DeviceDeal is an authorised reseller of Tycon Power. The TP-DCDC-2USB-24 is supplied with the applicable Tycon Power manufacturer warranty in Australia. Warranty coverage and claims remain subject to the manufacturer’s current terms, eligibility requirements and product assessment.
