Ubiquiti 802.3af Supported PoE Injector - U-PoE (15W)
Model # PoE Adapter (15W)
-
SKU: U-POE-AF-AU
- Pick Up Available
- Australian Warranty
- Checkout Securely

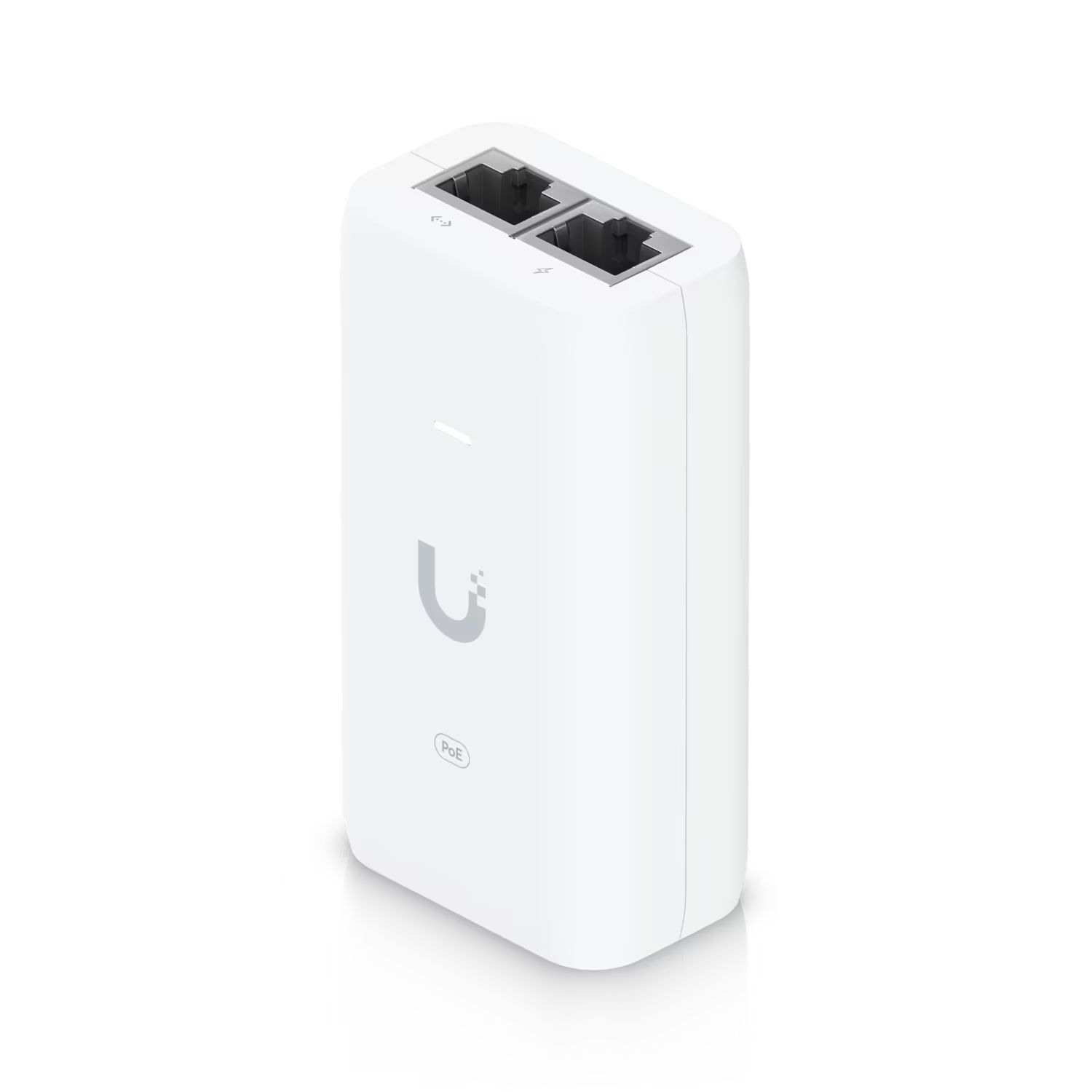

Ubiquiti 802.3af Supported PoE Injector
An adapter that can power UniFi PoE devices, reduce dependency on PoE switch power, and provide a Gigabit LAN connection.
Delivers up to 15W of PoE
Surge, peak pulse, and overcurrent protection

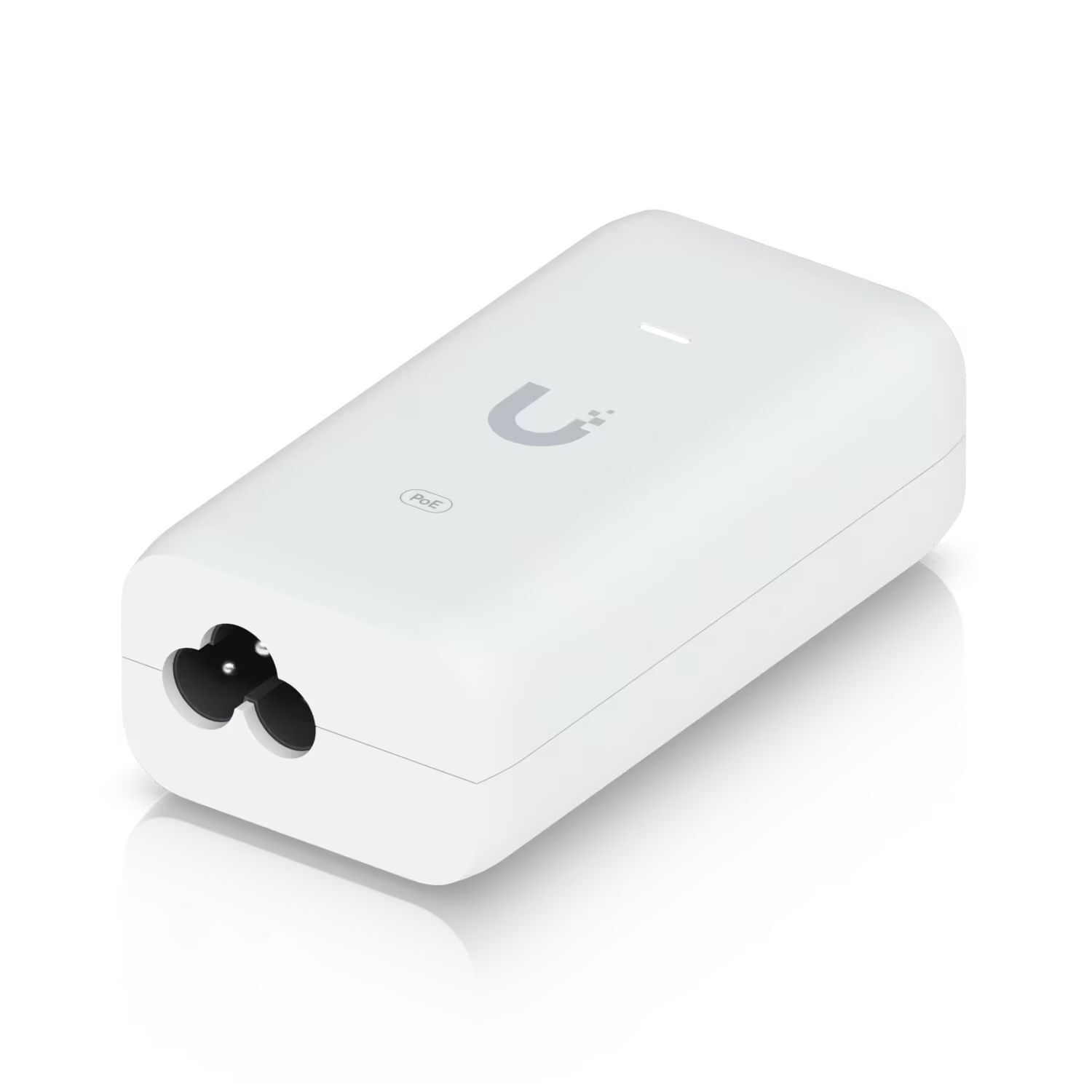

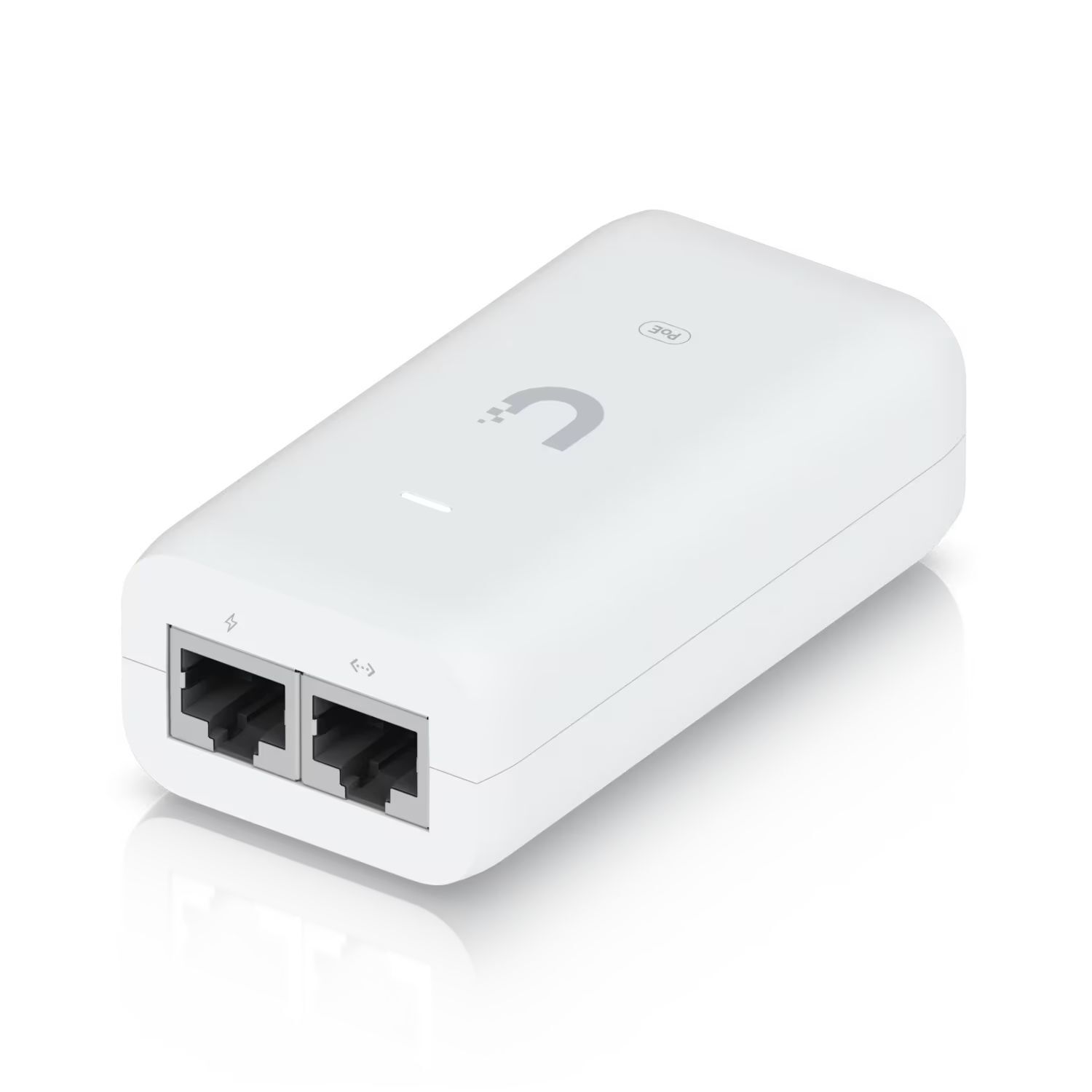

Contains RJ45 data input, AC cable with earth ground, and PoE output
LED indicator for status monitoring
Compatibility:
UK-Ultra
U6-PLUS
U6-IW
U6-Mesh
U6-Pro
U6-Lite
UAP-AC-IW
UTP-Touch
UVC-G5-Dome-Ultra
UVC-G5-Turret-Ultra
UVC-G5-Pro
UVC-G5-Flex
UVC-G5-Bullet
UVC-G5-Dome
UVC-AI-Pro
UVC-AI-DSLR
UVC-AI-Bullet
UVC-AI-360
UVC-AI-Theta-Pro
UVC-AI-Theta
UVC-AI-Theta-Hub
UVC-G4 Doorbell Pro PoE Kit
UVC-G4-DOME
UVC-G4-Bullet
UVC-G4-Pro
UVC-G3-FLEX
(U-POE-AF-AU)
Technical Specification
| Dimensions | 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") |
| Weight | 100 g (3.5 oz) |
| Output voltage | 48V DC @ 0.32A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 500mA max. |
| Inrush current | <100A peak at 25°C |
| Efficiency | 84.25+% |
| Output ripple | 200mV p-p |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| AC connector | IEC-320 C6 |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |
| Certifications | CE, FCC, IC, UL |
| NDAA Compliant | Yes |
| SKU | U-POE-AF-AU |
| Barcode # | 817882024990 |
| Brand | UBIQUITI |
| Shipping Weight | 0.3000kg |
| Shipping Width | 0.030m |
| Shipping Height | 0.120m |
| Shipping Length | 0.030m |
| Shipping Cubic | 0.000135000m3 |
Manufacturer Warranty : 1 Year Manufacturer Warranty
