Ubiquiti LTU-INSTANT-5 LTU Instant (5-pack) 5 GHz LTU client that functions in a point-to-multipoint
Model # LTU-INSTANT-5
-
SKU: LTU-INSTANT-5
- Pick Up Available
- Australian Warranty
- Checkout Securely

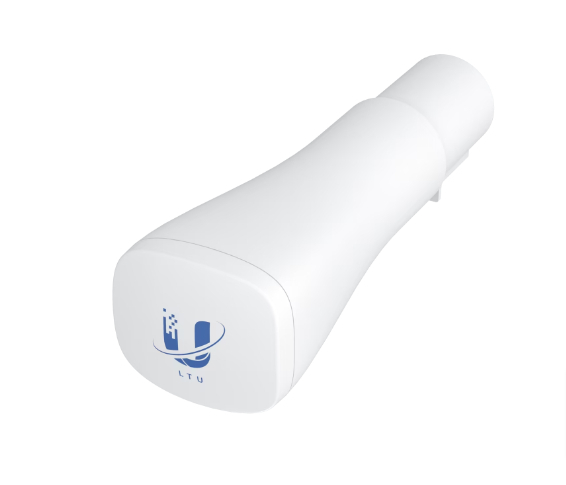

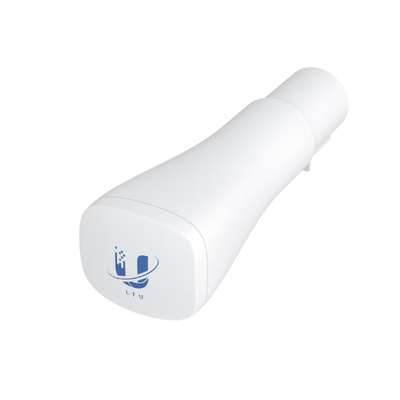

LTU Instant (5-pack)
5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.
900+ Mbps throughput*
22 dBi high-gain antenna with InnerFeed® technology
Easily integrates with LBE 5AC Gen 2 deployments
Includes (5) feeds and (5) PoE adapters
(LTU-INSTANT-5)
| Mechanical | |
|---|---|
| Dimensions | Feed: 201.5 x 64.2 x 56.2 mm (7.9 x 2.5 x 2.2") Antenna: 358 x 271.9 x 288.5 mm (14.1 x 10.7x 11.4") |
| Weight | Feed: 215 g (7.6 oz) Antenna: 890 g (2 lb) Antenna with mount: 1.1 kg (2.4 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind loading | 275 N at 200 km/h (61.8 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8-) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Supported voltage range | 22—27V DC |
| Max. power consumption | 9W |
| RF connections | Internal |
| LEDs | Power/Ethernet |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Modes | PtMP CPE, PtP* *1.5.1 and later 1.5.x series firmware. |
| Services | SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog |
| Utilities | airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation |
| Auto distance adjustment | Yes |
| Auto power adjustment | Yes |
| Network | Bridge/Router* mode *Router mode is available in PtMP CPE mode only. |
| Security | Yes |
| Statical reporting | Yes |
| Management interface | Bluetooth management for easy setup over UISP App WEB UI |
| Minimum software requirements | Any modern web browser iOS™ or Android™ based smartphone |
| System | |
| Maximum throughput | 900+ Mbps* *FW version 2.3.0 and later. |
| Encryption | WPA2-PSK (AES) |
| Uplink/downlink ratio | 25/75, 33/67, 50/50 |
| RF | |
| Operating frequency* | 5.15 to 5.95 GHz *Depends on regulatory region. |
| Max. conducted TX power | 22 dBm (per chain) |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz* *FW version 2.3.0 and later. |
| Antenna gain | 22 dBi |
| Isolation | 20 dB |
| SKU | LTU-INSTANT-5 |
| Barcode # | 810010077448 |
| Brand | Ubiquiti |
| Shipping Weight | 0.2000kg |
Manufacturer Warranty: 1 Year Manufacturer Warranty
