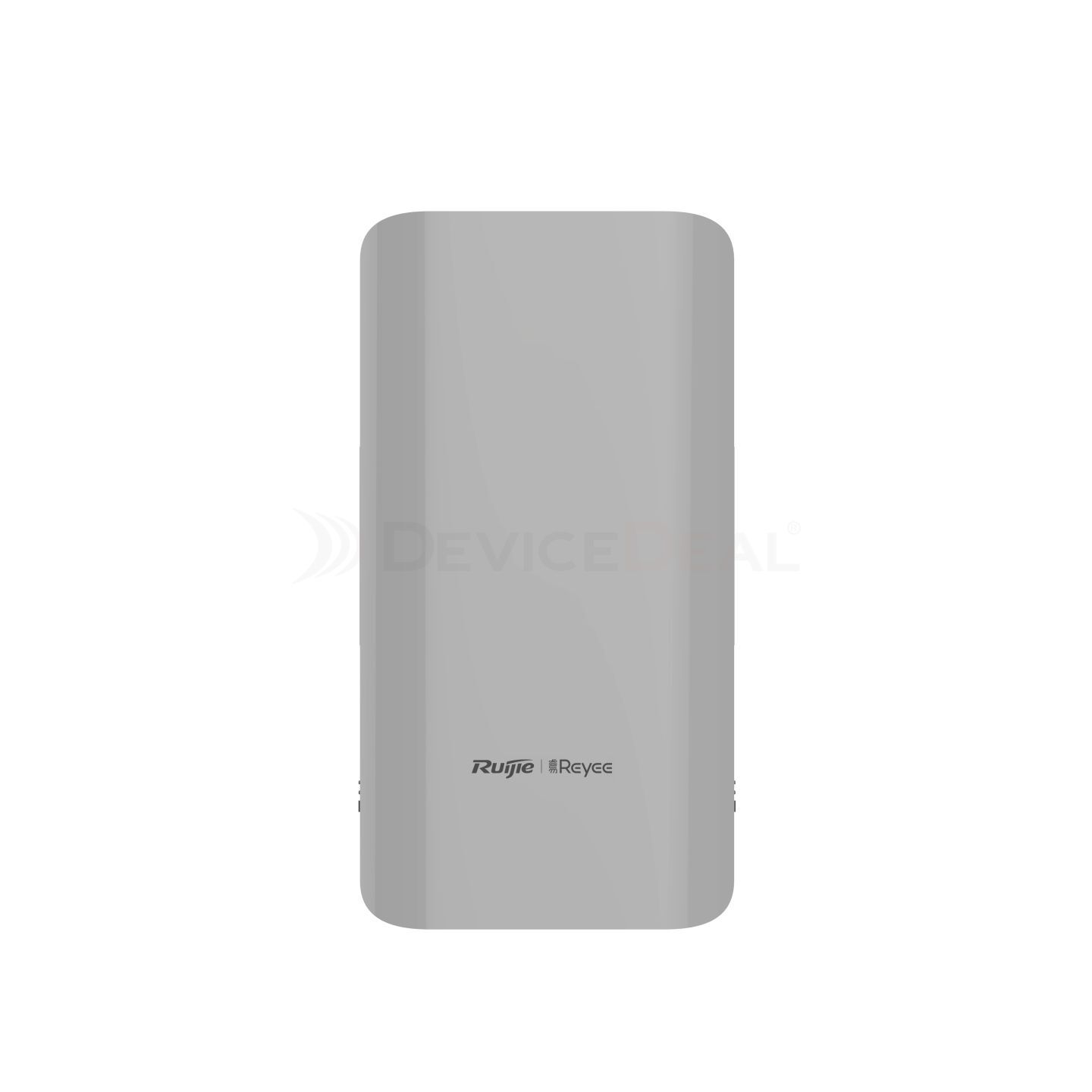

View PDF BrochureReyee RG-EST310 V2, 5GHz Dual-stream 802.11ac 1KM Wireless Bridge
Model # RG-EST310 V2
-
SKU: RG-EST310-V2
Stock Availability
🟢Live
(Click & Collect Available)
- Pick Up Available
- Australian Warranty
- Checkout Securely
5GHz 10dBi Outdoor wireless bridge, 2 devices paired in the package for the camera-end and NVR-end, up to 867 Mbps throughput, built-in internal directional antenna, 12V DC and 24V passive PoE, support eweb and Ruijie cloud management; 2 24V PoE adapters included; Wall-mounted/Pole-mounted installation; IP54 weatherproof.
Highlight Features
- RG-EST310 V2 provide stable traffic transmission from 1KM away.
-
Factory-paired, auto-rebridge upon power restoration
- IP54 Weatherproof, -30℃~55℃ ensures stable operating
- Cost-effective wireless solution for elevator CCTV to avoid cable loss
.jpg)
| Model | Mode | Bridging Performance | RSSI | Recommended Number of Cameras | |||
| 3 MP | 4 to 5 MP | 6 to 7 MP | 7 to 8 MP | ||||
| RG-EST310 V2 | PTP 1 x RG-EST310 V2 + 1 x RG-EST310 V2 |
90 Mbps/100 meters (HT40) 80 Mbps/500 meters (HT40) 80 Mbps/1 km (HT40) |
–52 dBm/100 m –65 dBm/500 m –68 dBm/1 km |
16/100 m 16/500 m 16/1 km |
10/100 m 10/500 m 10/1 km |
7/100 m 7/500 m 7/1 km |
5/100 m 5/500 m 5/1 km |
(RG-EST310-V2)
Key Specification
Wi-Fi Standards
Wi-Fi 5 (IEEE 802.11ac, Wave2)
MIMO
2X2, MU-MIMO
Max. Wireless Speed
5 GHz: 867Mbps
Antenna Gain
Directional, 10 dBi
Weatherproof
IP54
Polarization
Horizontal: 60°, Vertical: 30°
Operating Temperature
-30°C to 55°C (-22°F ~ 131°F)
Recommended Distance
1 KM
Fixed Ports
1 x 10/100Base-T
Transmit Power
≤400 mW(26 dBm) (adjustable)
Demensions
147 mm x 76 mm x 37 mm
Weight
0.35 kg
Certification
CE, RoHS
Warranty
3 Years
| SKU | RG-EST310-V2 |
| Barcode # | 6971693275775 |
| Brand | REYEE |
| Shipping Weight | 1.0000kg |
Manuffacturer Warranty: 3 Years Manuffacturer Warranty
