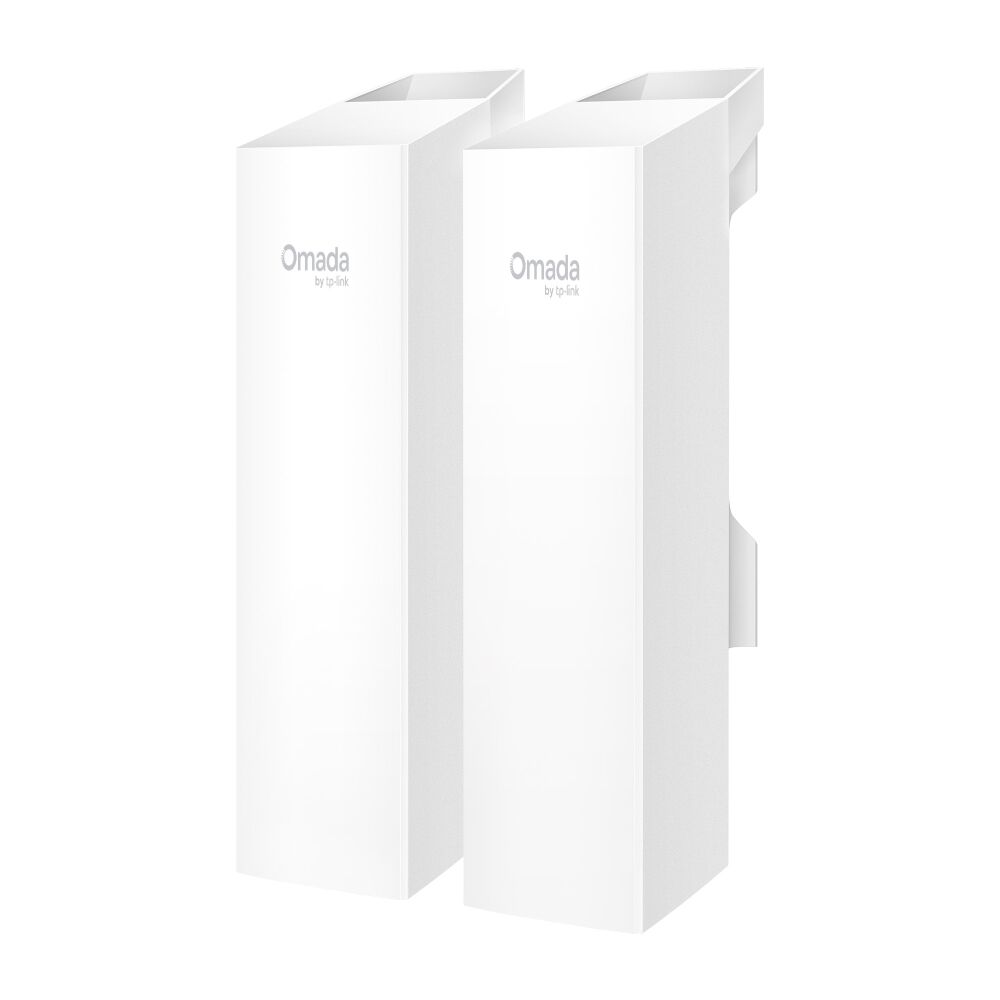

TP-LINK EAP100-BRIDGE-KIT Omada 2.4GHz N300 Indoor/Outdoor Wireless Bridge
Model # EAP100-BRIDGE-KIT
-
SKU: EAP100-BRIDGE-KIT
- Pick Up Available
- Australian Warranty
- Checkout Securely
Omada 2.4GHz 300Mbps Indoor/Outdoor Wireless Bridge
· Up to 1640 ft (500 m) Wi-Fi transmission*
· Equipped with Omada SmartBridging: Our unique design for the most effortless and easy bridge setup ever.
· Plug-and-Play Preconfigured Kit: Preconfigured for instant auto-pairing, the bridges deliver instant connectivity right out of the box. Simply power on and go. Ideal for quick deployments.
· App-Guided Alignment: Visualized App-Guided Alignment for long-distance setups and Instant Speed Testing for installation verification.
· Flexible Power Supply: 802.3af PoE, 24V Passive PoE, and 12V DC (compatible with TP-Link solar power supply systems).
· 3× Fast Ethernet Ports: Connects more cameras and devices without an extra switch.△
· Built for Tough Outdoor Conditions: Features an IP65 weatherproof enclosure and operating range of -40℉ to +158 ℉.**
· Remote Monitoring & Management: Choose Standalone mode or Omada SDN mode for remote centralized management via Web UI or app.§
(EAP100-BRIDGE-KIT)
| Category | Specification |
|---|---|
| Hardware Features | |
| Interface | 3× 10/100 Mbps Ethernet Ports |
| Button | Reset |
| Power Supply | 12V DC / 802.3af PoE / 24V Passive PoE / 48V Passive PoE |
| Max. Power Consumption | 4.8 W |
| Dimensions (W × D × H) | 3.1 × 2.4 × 8.8 in (79 × 60 × 224 mm) |
| Antenna | Internal 2×2 Dual-polarized directional MIMO antennas |
| Antenna Gain | 2.4 GHz: 8.0 dBi Horizontal: 70°, Vertical: 70° |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole and wall mounting (Pole accessories included) |
| Wireless Features | |
| Coverage | 500 m (0.31 mi)* |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency | 2.4 GHz |
| Signal Rate | 2.4 GHz: Up to 300 Mbps |
| Wireless Functions | - MIMO: 2.4G 2×2 MIMO <br> - Mesh <br> - Beamforming <br> - Channel: 1–11 (US), 1–13 (EU) <br> - Multiple SSIDs: 8 <br> - Wireless Statistics <br> - Wireless Schedule <br> - Reboot Schedule <br> - RADIUS Accounting <br> - Static IP / Dynamic IP <br> - Rate Limit <br> - Guest Network <br> - Enable/Disable Wireless Radio <br> - Enable/Disable SSID Broadcast |
| Wireless Security | - VLAN <br> - Rogue AP Detection <br> - MAC Filter (max 4,000 entries) <br> - Wireless Encryption |
| Transmission Power | - CE: < 20 dBm (2.4 GHz, EIRP) <br> - FCC: < 22 dBm (2.4 GHz) |
| Management Features | |
| Omada App | Yes |
| Restore & Backup | Yes |
| Firmware Update via Web | Yes |
| NTP | Yes |
| Centralized Management | Omada Hardware Controller <br> Omada Software Controller <br> Omada App |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| SNMP | Yes |
| System Logging | Local / Remote Syslog |
| SSH | Yes |
| Web-based Management | Yes |
| Others | |
| Certification | CE, FCC, RoHS |
| Package Content | - EAP100-Bridge KIT <br> - Installation Guide <br> - Pole Mounting Kit |
| Environment - Operating | Temp: -40 °C to 70 °C (-40 °F to 158 °F), Humidity: 10%–90% (non-condensing) |
| Environment - Storage | Temp: -40 °C to 70 °C (-40 °F to 158 °F), Humidity: 5%–90% (non-condensing) |
| SKU | EAP100-BRIDGE-KIT |
| Barcode # | 1210002603768 |
| Brand | TP-LINK |
| Shipping Weight | 1.4000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
