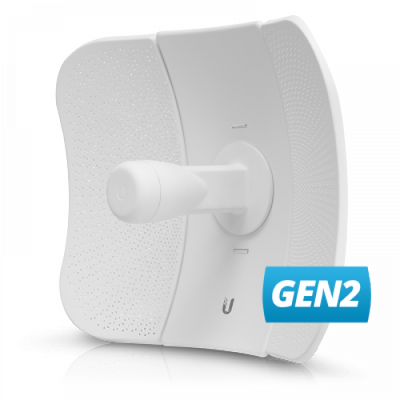

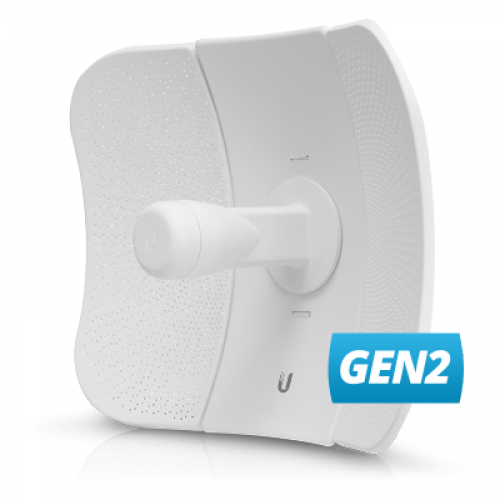

Ubiquiti LBE-5AC-LR 5GHz LiteBeam AC Gen2 Long Range Ubiquiti LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance applications. The LBE-5AC-LR features a larger reflector size and elevation adjustment (azimuth is adjusted by rotation around the pole). Features: Improved Radio Design Improved Mounting Improved Surge Protection Management WiFi Radio/UISP mobile app AirOS 8 Mechanical: Dimensions: 512 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17") Weight Without Mount: 1.360 kg (2.998 lb) With Mount: 1.735 kg (3.825 lb) Enclosure Materials: Aluminum, Plastic Mounting: Pole-Mounting Kit (Included) Wind Loading: 550 N at 200 km/h (123.6 lbf at 125 mph) Wind Survivability: 200 km/h (125 mph) Hardware: Networking Interface: (1) 10/100/1000 Ethernet Port Processor: MIPS 74Kc Memory: 64 MB DDR2 Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included) Max. Power Consumption: 7W Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return) Supported Voltage Range: 24V ± 10% Gain: 26 dBi LEDs: Power, Ethernet Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz ESD/EMP Protection: ± 24 kV Contact / Air Operating Temperature: -40 to 70° C (-40 to 158° F) Operating Humidity: 5 to 95% Noncondensing Certifications: CE, FCC, IC

(LBE-5AC-LR)

Mechanical
Dimensions512 x 385.8 x 258.3 mm (20.2 x 15.2 x 10.2")
WeightWithout mount: 1.4 kg (3 lb)
With mount: 1.7 kg (3.8 lb)
Enclosure materialsAluminum, plastic
MountingPole mount (Kit included)
Wind loading550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability200 km/h (125 mph)
Hardware
ProcessorMIPS 74Kc
Memory64 MB DDR2
Networking interface(1) 10/100/1000 MbE RJ45 port
Power methodPassive PoE (pairs 4, 5+; 7, 8 return)
Power supply24V, 0.3A Gigabit PoE adapter (Included)
Max. power consumption7W
Supported voltage range24V ± 10%
Gain26 dBi
LEDsPower, Ethernet
ESD/EMP protection Air/contact ± 24kV
Channel sizesPtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10/20/30/40 MHz
Operating temperature-40 to 70° C (-40 to 158° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
Management Radio (MHz)
Worldwide 2412 - 2472 MHz
US/CA 2412 - 2462 MHz
SKU LBE-5AC-LR
Brand Ubiquiti
Shipping Weight 3.2000kg
Manufacturer Warranty
