3km recommended distance
Supports outdoor point-to-point and point-to-multipoint links up to the specified distance.
Ruijie Reyee RG-EST330F-P
The Ruijie Reyee RG-EST330F-P is a single outdoor wireless bridge unit for point-to-point or point-to-multipoint links at recommended distances up to 3km. It combines a 5GHz 867Mbps 2x2 radio, 13dBi directional antenna, three Fast Ethernet ports and two PoE output ports with flexible power input options.
Product highlights
Key supplied and exact-model vendor information is organised below for faster product comparison.
Supports outdoor point-to-point and point-to-multipoint links up to the specified distance.
Uses Wi-Fi 5 with 2x2 MIMO for the bridge connection.
Integrated directional gain supports long-distance outdoor alignment.
Includes two PoE output ports for compatible downstream devices.
Supports 12V DC, passive PoE and IEEE 802.3af/at input.
Supports remote configuration, monitoring and management through Ruijie Cloud and app.
DeviceDeal is an authorised reseller of Ruijie Reyee. This product is supplied with the applicable 3-year Ruijie Reyee manufacturer warranty, subject to the manufacturer's terms and assessment.
Frequently asked questions
No. This SKU is a single bridge unit.
The supplied specification recommends links up to 3km.

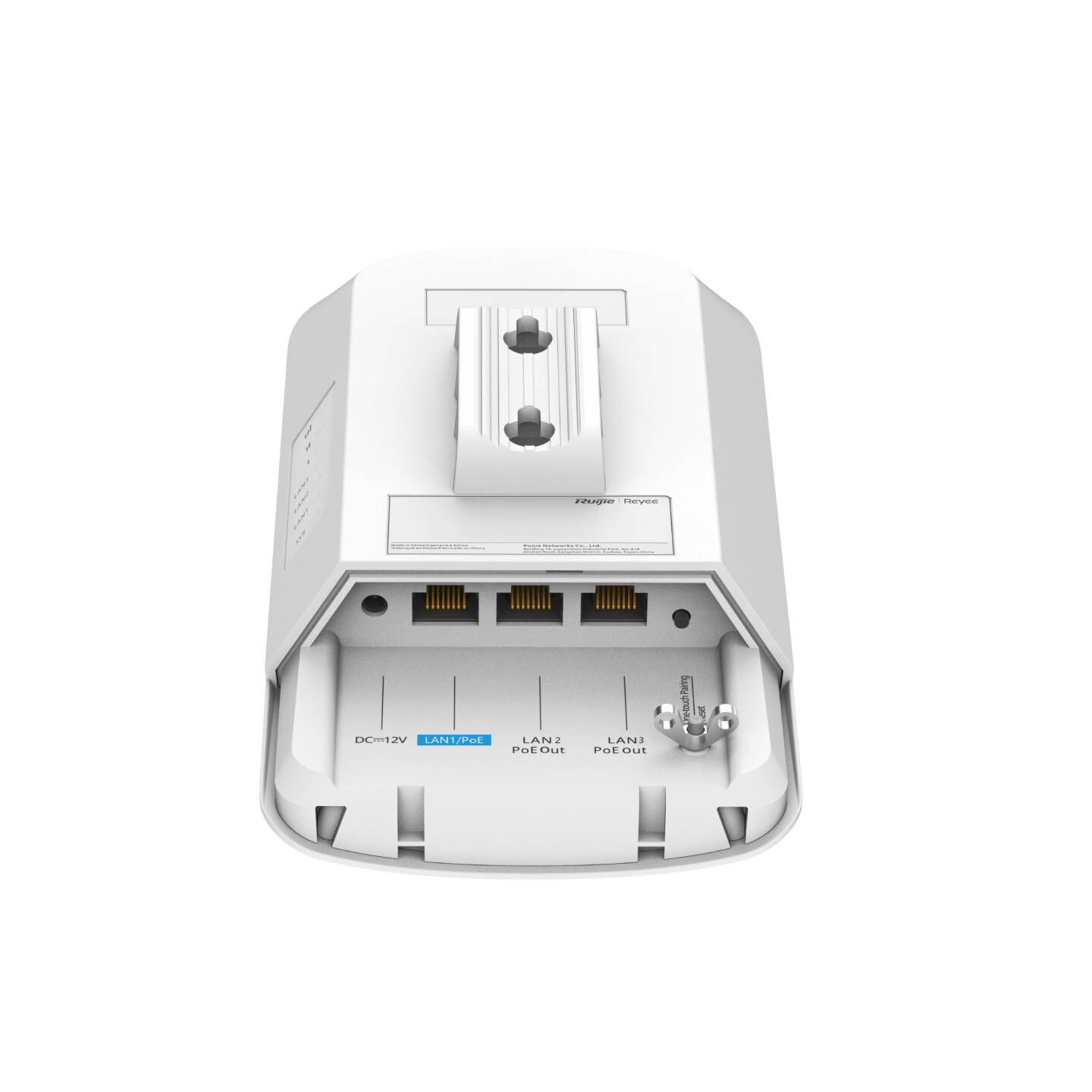

It has three 10/100Mbps Ethernet ports, including two PoE output ports.
It supports 12V DC, passive PoE and IEEE 802.3af/at power input.
The product is rated IP55 and specified for operation from -30°C to 55°C.
DeviceDeal is an authorised reseller of Ruijie Reyee. This product is covered by a 3-year Ruijie Reyee manufacturer warranty, subject to the manufacturer's terms, eligibility requirements and product assessment.
(RG-EST330F-P)
Technical specifications
| Brand | Ruijie Reyee |
|---|---|
| Model | RG-EST330F-P |
| Product Type | Outdoor wireless bridge, single unit |
| Primary Bridge Radio | 5GHz Wi-Fi 5, 2x2 MIMO |
| Management Radio | 2.4GHz 1x1 |
| Maximum Wireless Rate | 867Mbps |
| Antenna Gain | 13dBi directional |
| Horizontal Beamwidth | 30° |
| Vertical Beamwidth | 30° |
| Recommended Distance | 3km |
| Ethernet Ports | 3 x 10/100Mbps |
| PoE Output Ports | 2 |
| Power Input Options | 12V DC, passive PoE, IEEE 802.3af/at |
| PoE Input | 1 x PoE input and 1 x PoE/PoE+ input |
| Deployment Modes | Point-to-point and point-to-multipoint |
| TDMA | Supported |
| Self-Organising Network | Supported |
| Ingress Protection | IP55 |
| Operating Temperature | -30°C to 55°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 103 x 53.4 x 199mm, excluding bracket |
| Weight | 0.37kg |
| Certification | CE |
| Management | Ruijie Cloud and app |
| Manufacturer Warranty | 3 years |
| SKU | RG-EST330F-P |
| Brand | REYEE |
| Shipping Weight | 1.4200kg |
DeviceDeal authorised reseller support
DeviceDeal is an authorised reseller of Ruijie Reyee. The RG-EST330F-P is covered by a 3-year Ruijie Reyee manufacturer warranty.
