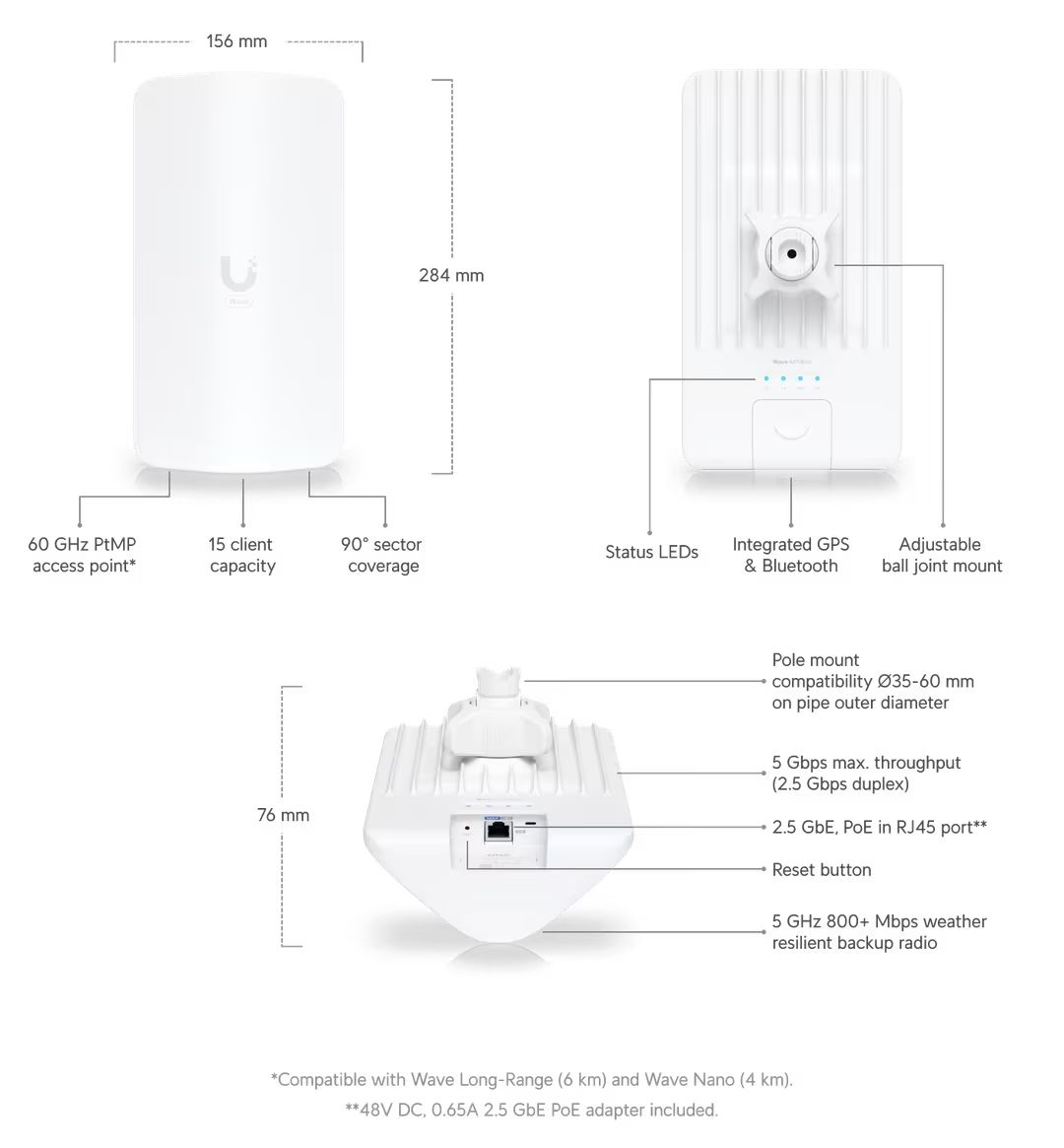

Ubiquiti Wave AP Micro. Wide-coverage 60 GHz PtMP access point powered by Wave Technology.





Wide-coverage 60 GHz PtMP access point powered by Wave Technology.

60 GHz 5 Gbps max. throughput (2.5 Gbps duplex) main radio

90° sector coverage

5 GHz 800+ Mbps weather-resilient backup radio

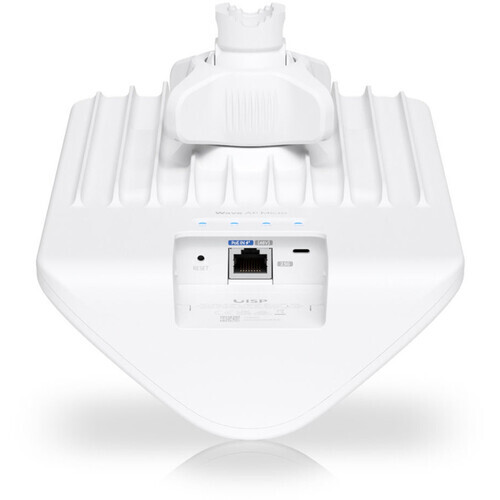

(1) 2.5 GbE WAN port

15 client capacity:
— Wave Pro (6 km link range)
— Wave Long-Range (6 km link range)
— Wave Nano (4 km link range)

Integrated GPS & Bluetooth

(WAVE-AP-MICRO)

Key Features

  • 802.11ax (WiFi 6)
  • Up to 5 GB/s Throughput
  • 60 GHz Band (Single-Band)
  • 5 GHz, 800 Mb/s Backup Radio
  • 1 x 2.5G Ethernet PoE Port
  • IPX6 Rated for Outdoor Use
  • Pole Mountable | Includes PoE Adapter
  • 90° Coverage | 3.7-Mile Max Range
  • Integrated GPS & Bluetooth
  • Works with UISP Application
Mechanical
Dimensions 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight 530 g (1.17 lb)
Enclosure material UV-stabilized plastic
Mounting Pole mount kit (Included)
Wall mount (Not included)
Wind Loading 45.4 N at 200 km/h (10.2 lbf at 125 mph)
Wind Survivability 200 km/h (125 mph)
Hardware
Networking interface (2) GbE RJ45 ports
Power method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power supply 24V, 0.5A Gigabit PoE adapter (Included)
Max. power consumption 8W
ESD/EMP protection Air/contact: ± 24kV

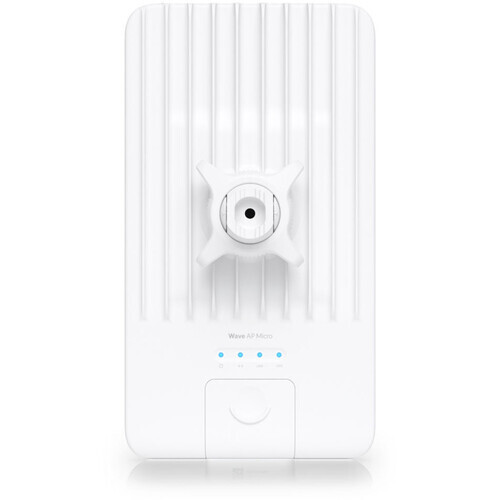

LEDs Power, Ethernet, (4) Signal strength
Salt fog test IEC 68-2-11 (ASTM B117)
Equivalent: MIL-STD-810 G method 509.5
Vibration test IEC 68-2-6
Temperature shock test IEC 68-2-14
UV test IEC 68-2-5 at 40° C (104° F)
Equivalent: ETS 300 019-1-4
Wind-driven rain test ETS 300 019-1-4
Equivalent: MIL-STD-810 G method 506.5
Operating temperature -40 to 80° C (-40 to 176 F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
System
Gain 19 dBi
Channel sizes
PtP Mode
PtPM Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Max. VSWR 1.5:1
Polarization Dual linear
Operating Frequency (MHz)
Worldwide 5150-5875 MHz
USA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3
5150-5250 MHz
5250-5350 MHz
5240-5725 MHz
5725-5850 MHz
SKU WAVE-AP-MICRO
Barcode # 810010079428
Brand UBIQUITI
Shipping Weight 2.2000kg
Shipping Width 0.224m
Shipping Height 0.096m
Shipping Length 0.240m
Shipping Cubic 0.005161000m3
Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti Wave AP Micro. Wide-coverage 60 GHz PtMP Access Point Powered by Wave Technology,

Model # WAVE-AP-MICRO

  • SKU: WAVE-AP-MICRO

$899.00
WAS $944.00
$1,009.00
SAVE $110.00 (11%)
Sale Ends on:
23:55 pm, 20 July 2025
Only 1 left!
