Ubiquiti SunMAX SolarPoint Managed Charge Controller
- Outdoor - PV Panel Input 10 – 60V - 4-port 24V PoE output 10/100 switch
- 24V DC-Out Terminal - Max output power 40W
- External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)
- SM-SP-40 - 12 Months Limited Warranty

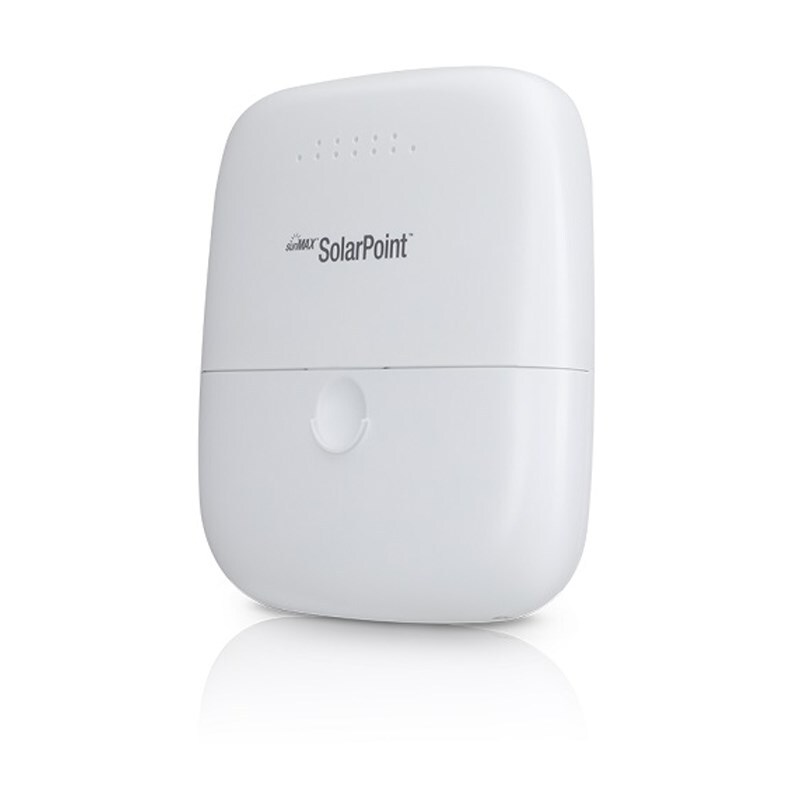

SunMAX SolarPoint

SM-SP-40

SunMAX™ SolarPoint™ is a remote managed MPPT 24V 7A charge controller with a built-in 4 port 24V PoE 10/100Mbps switch and one DC output delivering up to 40W. It comes with built-in weather prediction service, which together with AI algorithms will provide you with critical information about your solar site's existing and future performance.

Features:

Indoor and Outdoor use
PV Panel Input 10 – 60V
4-port 24V PoE output 10/100 switch
24V DC-Out Terminal
Max output power 40W
External 24V Battery Charging up to 7Amps (supports SLA, AGL, AGM)

* Batteries and solar panels are not included
* UNMS connectivity coming soon in UNMS version 0.14.0

(SM-SP-40)

Specifications

Dimensions: 202 x 186 x 50 mm (7.95 x 7.32 x 1.97")
Weight: 650 g (1.43 lb)
Enclosure characteristics: UV-resistant Polycarbonate, outdoor use
Max. power consumption: 2 W
Networking interface: (4) 10/100 Fast Ethernet ports
Management interface: Ethernet; Wi-Fi (2.4 GHz)
Button: Reset
LEDs: System, output
Power source: PV panel (H4 connectors)
PV input voltage range: 10 - 60 V (reverse protection, surge protection)
PV maximum current: 10 A
PV power control: MPPT
Output interfaces: 24 V DC passive PoE (pins 4, 5+; 7, 8-); 24 V DC terminal block
Output voltage: Battery voltage limited to 24 V (surge protection)
Maximum power output: PoE: 17 W; DC out: 24 W; Total: 40 W max.
Battery type: 24 V SLA, AGM, gel lead battery
Boost voltage steps: 27.4 V, 28.2 V, 29.1 V, 30 V
Float charge voltage: 95% of boost voltage
Max. charge current: 7 A
Under voltage protection: 22 – 23.6 V software configurable; 22 V hardware protection; Two priority levels for output disable
Operating temperature: -20°C to 50°C (-4°F to 122°F)
Operating Humidity: IPx4
Certifications: FCC, IC, CE

SKU	SM-SP-40
Barcode #	817882028301
Brand	UBIQUITI
Shipping Weight	0.6500kg
Shipping Width	0.180m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001800000m3
