StarTech.com · PEXM2SAT32N1

StarTech 3-Port M.2 SSD (NGFF) Adapter Card - PEXM2SAT32N1

Three-drive M.2 adapter supporting one PCIe M-key SSD and two SATA B-key SSDs in a PCIe x4 or larger slot.

Quick answer: Installs up to three M.2 drivesone PCIe/NVMe M-key and two SATA B-keywhile supporting 2230, 2242, 2260 and 2280 lengths.

Best forExpanding mixed M.2 storage, reusing laptop SSDs or recovering data from compatible SATA and PCIe M.2 drives.

Check before orderingThe PCIe slot must be x4 or larger. Match each drive to the correct M-key PCIe or B-key SATA connector; the card does not provide RAID.

Answers before you buy

Frequently asked questions

What does PEXM2SAT32N1 do?

Installs up to three M.2 drivesone PCIe/NVMe M-key and two SATA B-keywhile supporting 2230, 2242, 2260 and 2280 lengths.

Who is this product best for?

Expanding mixed M.2 storage, reusing laptop SSDs or recovering data from compatible SATA and PCIe M.2 drives.

What should I check before ordering?

The PCIe slot must be x4 or larger. Match each drive to the correct M-key PCIe or B-key SATA connector; the card does not provide RAID.

Does it require drivers or software?

The adapter is OS independent, but the host operating system and firmware must natively support the installed PCIe/NVMe drive.

What is included in the package?

Three-port M.2 adapter, low-profile bracket, M.2 mounting hardware and quick-start guide.

What is the key installation requirement?

Mount each M.2 SSD in its matching connector and length position, then install the card in a PCIe x4 or larger slot.

Is it suitable for an Australian setup?

Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.

What warranty applies?

PEXM2SAT32N1 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.

(PEXM2SAT32N1)

Features & highlights

Why choose PEXM2SAT32N1?

?Three M.2 positionsSupports one PCIe M-key drive and two SATA B-key drives.

?Mixed-drive supportCombines PCIe and SATA M.2 storage on one expansion card.

?PCIe 3.0 x4 hostProvides host bandwidth for the installed M.2 drives.

?Four common lengthsSupports 2230, 2242, 2260 and 2280 M.2 form factors.

?No software requiredAdapter operation is OS independent when drives are natively supported.

?Dual-profile bracketsSupports qualifying full-height and low-profile desktop chassis.

Compatibility reminder: The PCIe slot must be x4 or larger. Match each drive to the correct M-key PCIe or B-key SATA connector; the card does not provide RAID.

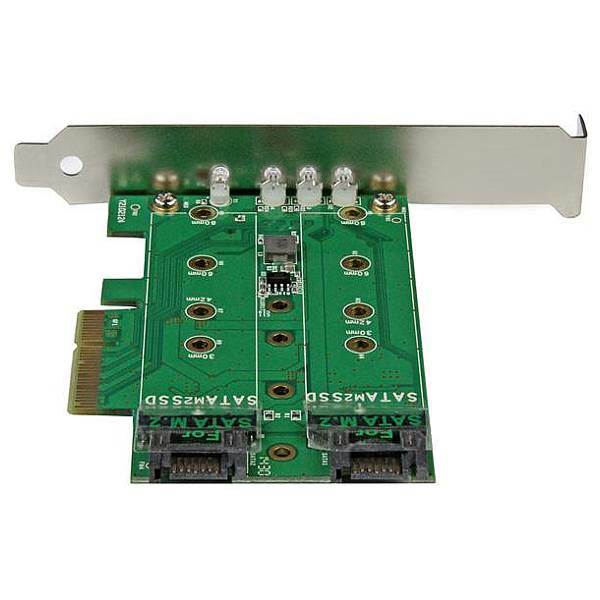

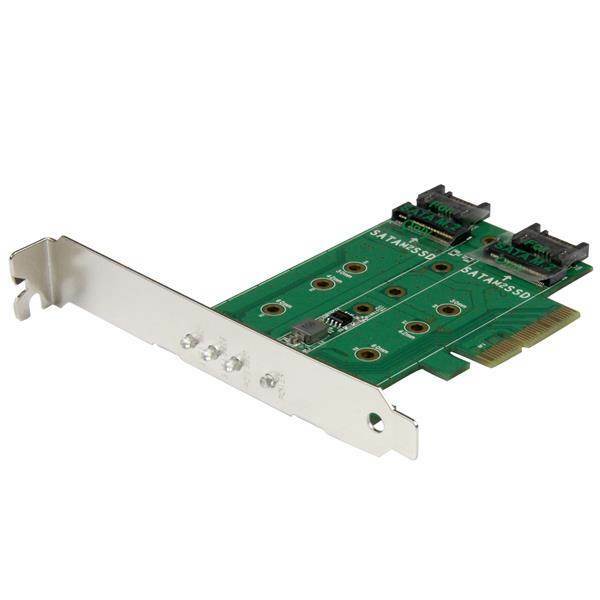

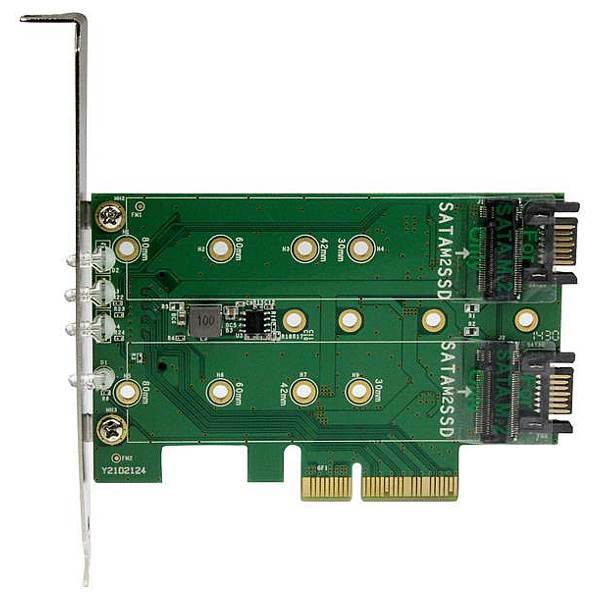

StarTech 3-Port M.2 SSD (NGFF) Adapter Card - PEXM2SAT32N1 product image

Technical specifications

PEXM2SAT32N1 specifications

Exact-model specifications for compatibility checking.

Warranty Information
Warranty	2 Years
Hardware
Bus Type	PCI Express
Card Type	Standard Profile (LP bracket incl.)
Industry Standards	Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
Interface	M.2 SATA
Port Style	Integrated on Card
Ports	3
Performance
ATAPI Support	Yes
Bootable	Yes
MTBF	50,000 Hours
Port Multiplier	No
RAID	No
Type and Rate	SATA III (6 Gbps)
Connector(s)
Connector Type(s)	1 - PCI Express x4 Male
Internal Ports	2 - M.2 (SATA, B-Key, NGFF) Receptacle
Additional Internal Port	1 - M.2 (PCIe, M-Key, NGFF) receptacle
Software
OS Compatibility	OS Independent; No additional drivers or software required; ; Note: When installed in a compatible operating system, the card is natively supported and doesnt require any additional drivers or software. However, your operating system must natively support PCIe SSDs (NVMe - Non-Volatile Memory Express).
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5Gbps per lane. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5Gbps per lane.
System and Cable Requirements	A computer enabled with PCI Express (PCIe), and an available PCI Express x4, x8, or x16 slot
Indicators
LED Indicators	3 - M.2 drive status/activity
Environmental
Humidity	20%~80% RH (Non-condensing)
Operating Temperature	5°C to 50°C (41°F to 122°F)
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Physical Characteristics
Product Height	4.7 in [12 cm]
Product Length	4.7 in [12 cm]
Product Width	0.8 in [20 mm]
Weight of Product	2.3 oz [65 g]
Packaging Information
Package Height	1.3 in [32 mm]
Package Length	5.1 in [13 cm]
Package Width	6.4 in [16.2 cm]
Shipping (Package) Weight	4.5 oz [127 g]
What's in the Box
Included in Package	1 - 3-port M.2 NGFF SSD adapter card
Additional Items	1 - low-profile bracket; M.2 mounting hardware; 1 - quick-start guide

Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.

SKU	PEXM2SAT32N1
Barcode #	65030865708
Brand	Startech
Shipping Weight	0.1200kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.160m
Shipping Cubic	0.000800000m3
