StarTech.com · JD119BST

StarTech JD119BST HPE JD119B-Compatible 1000BASE-LX SFP Transceiver

HPE JD119B-Compatible 1000BASE-LX SFP Transceiver for professional networking or ergonomic workstation applications.

Quick answer: JD119BST provides a 1GbE 1000BASE-LX link over single-mode fibre through LC duplex.

Best forLong-distance 1GbE HPE network links requiring up to 10km reach over single-mode fibre.

Check before orderingConfirm HPE JD119B coding, a compatible SFP slot, LC duplex single-mode fibre, 1310nm optics and link distance.

Answers before you buy

Frequently asked questions

What is StarTech JD119BST?

It is a HPE-compatible single-mode SFP transceiver that provides a 1GbE 1000BASE-LX link over single-mode fibre through LC duplex.

Which connections or mounting method are provided?

SFP slot to LC duplex fibre

What performance is specified?

1000BASE-LX; up to 1.25Gbps; 1310nm; single-mode fibre; up to 10km

Does it require power?

Less than 1W

Is this a 1GbE or 10GbE transceiver?

JD119BST is a 1GbE 1000BASE-LX SFP with a maximum data transfer rate of 1.25Gbps.

Does it support DDM?

Yes. Digital Diagnostic Monitoring is supported with compatible host equipment.

What should be checked before ordering?

Confirm HPE JD119B coding, a compatible SFP slot, LC duplex single-mode fibre, 1310nm optics and link distance.

What warranty applies?

JD119BST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(JD119BST)

Features & highlights

Why choose JD119BST?

?Purpose-built designSFP slot to LC duplex fibre

?Specified performance1000BASE-LX; up to 1.25Gbps; 1310nm; single-mode fibre; up to 10km

?Power arrangementLess than 1W

?Construction and deploymentHot-swappable aluminium SFP module with DDM

?Key capabilityProvides 1GbE 1000BASE-LX connectivity over single-mode fibre up to 10km.

?Installation advantageDesigned, programmed and tested for HPE JD119B host compatibility.

Compatibility reminder: Confirm HPE JD119B coding, a compatible SFP slot, LC duplex single-mode fibre, 1310nm optics and link distance.

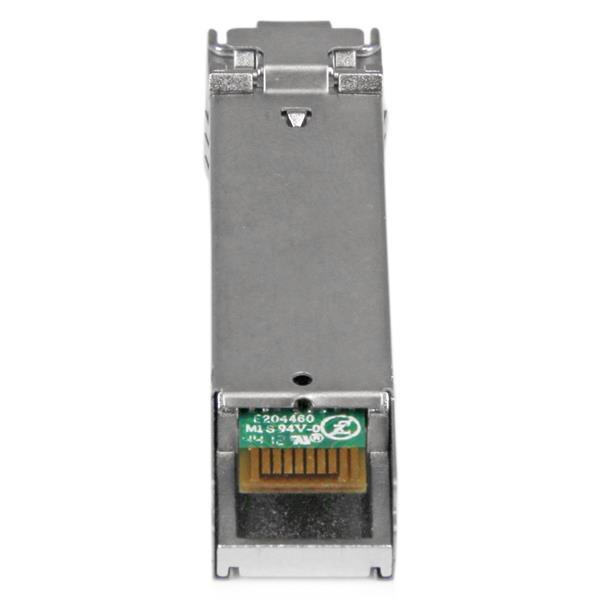

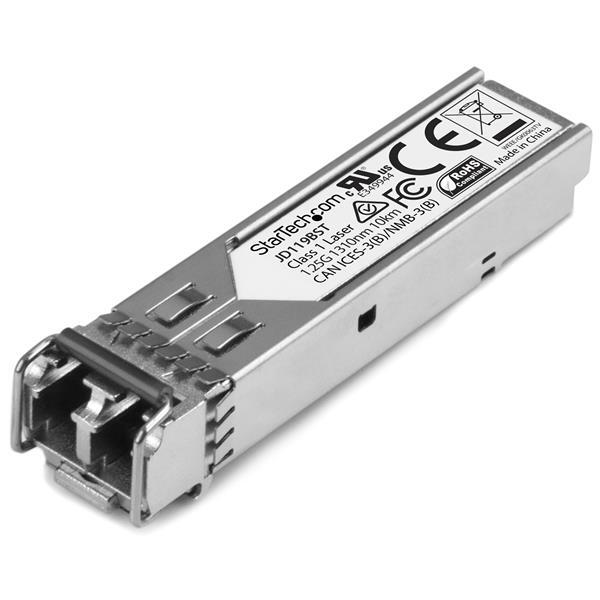

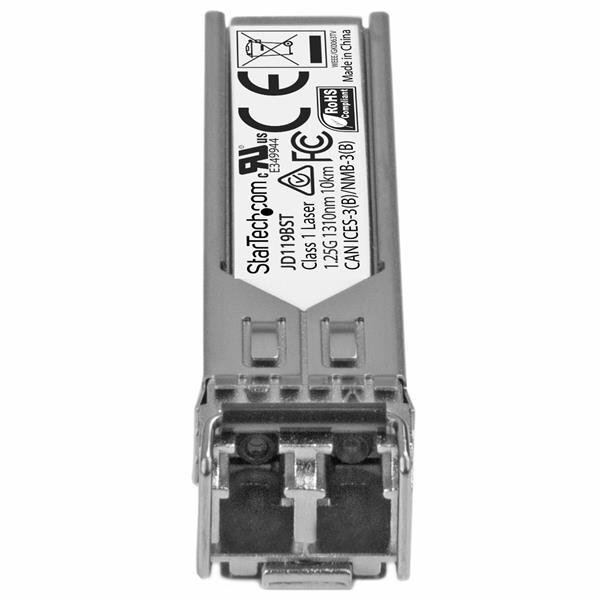

StarTech JD119BST HPE JD119B-Compatible 1000BASE-LX SFP Transceiver product image

Technical specifications

JD119BST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3z 1000BASE-LX
Material	Aluminium
Performance
Maximum Data Transfer Rate	1.25Gbps
Fibre Type	Single-mode
Wavelength	1310nm
Maximum Distance	10km
DDM	Yes
Power Consumption	<1W
MTBF	3,092,408 hours
Connectors
Connector A	SFP slot
Connector B	LC duplex fibre
Environmental
Operating Temperature	0°C to 70°C
Physical Characteristics
Dimensions	56.6 × 13.7 × 13mm
Weight	16g
What's in the Box
Included	1 × SFP transceiver module
