STARTECH.COM | ET91000LC2

Gigabit Ethernet to Multimode Fibre LC Media Converter

Convert and extend a 1000Base-T copper Ethernet connection over 850nm multimode LC fibre for distances up to 550m.

Up to 550m over fibre

Extends Gigabit Ethernet over multimode LC fibre for links up to 550m with suitable cabling.

RJ45 to duplex LC

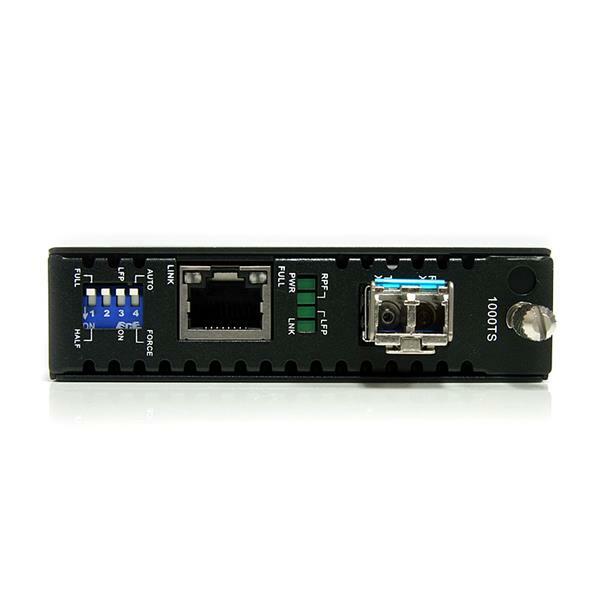

Provides one Gigabit RJ45 copper port and one duplex LC multimode fibre connection via the included SFP.

Standalone or chassis use

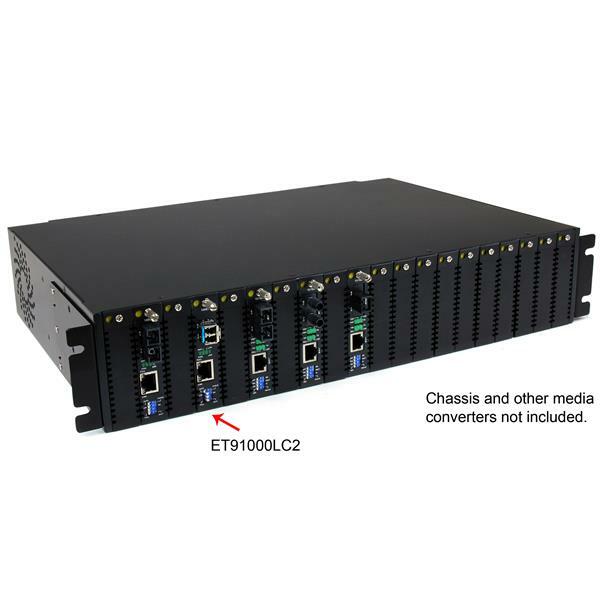

Operates as a durable standalone steel unit and is compatible with the StarTech ETCHS2U rackmount chassis.

What to know

Use 850nm multimode fibre with duplex LC connectors. A complete link normally requires a compatible converter or switch at the far end. Maximum distance depends on the fibre type, quality and network equipment.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official 2-year StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the ET91000LC2 convert?

It converts a 1000Base-T copper Ethernet connection to an 850nm multimode fibre link.

Which ports are on the ET91000LC2?

It has one RJ45 copper port and one duplex LC fibre connection through the included SFP.

How far can the ET91000LC2 extend Ethernet?

It supports fibre links up to 550m with suitable multimode cabling and compatible equipment.

Which fibre type does the ET91000LC2 require?

It requires 850nm multimode fibre with duplex LC connectors.

Does the ET91000LC2 include a power adapter?

Yes. It includes an AC power adapter with 12V DC output.

Can the ET91000LC2 be rack mounted?

It can be installed in the compatible StarTech ETCHS2U chassis or used standalone or wall mounted.

Does the ET91000LC2 provide PoE?

No. This media converter does not provide Power over Ethernet.

What warranty applies to the ET91000LC2?

It is supplied by DeviceDeal as an Australian-market product and is backed by a 2-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(ET91000LC2)

Features and highlights

Converts 1000Base-T copper Ethernet to multimode fibre
Extends Gigabit Ethernet up to 550m
Included 850nm multimode SFP with duplex LC connection
One RJ45 port with automatic MDI/MDIX
Supports half- and full-duplex fibre operation
Supports IEEE 802.1Q VLAN tag pass-through and 9K jumbo frames
Plug-and-play installation
Durable black steel enclosure
Standalone, wall-mount or ETCHS2U chassis deployment
2-year StarTech.com manufacturer warranty

Compatibility check: Use 850nm multimode fibre terminated with duplex LC connectors and a compatible Gigabit fibre device at the far end. This model is not a single-mode converter and does not provide PoE.

Specifications

Product type	Gigabit copper-to-multimode-fibre media converter
Copper interface	1 × RJ45; 1000Base-T
Fibre interface	1 × duplex LC through included SFP
Fibre type	Multimode
Wavelength	850nm
Maximum transfer distance	550m
Maximum full-duplex data rate	2000Mbps aggregate
Network standards	1000Base-T and 1000Base-SX/LX; IEEE 802.3/802.3u/802.3ab
Network features	Auto MDI/MDIX; IEEE 802.1Q tag pass-through; 9K jumbo frames
Fibre operating mode	Half- or full-duplex
PoE and WDM	No
Power	Included AC adapter; 12V DC, 1.6A output; 4W consumption
Enclosure and dimensions	Black steel; 160 × 95 × 20mm
Product weight	405g
Deployment	Standalone, wall-mount or ETCHS2U rackmount chassis
Compliance	TAA compliant
Warranty	2-year StarTech.com manufacturer warranty

SKU	ET91000LC2
Barcode #	65030846226
Brand	Startech
Shipping Weight	0.7700kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3

Warranty and Australian supply

ET91000LC2 is supplied by DeviceDeal as an Australian-market product and carries the official 2-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
