StarTech.com · JD092B-ST

StarTech JD092B-ST HPE JD092B-Compatible 10GBASE-SR SFP+ Transceiver

HPE JD092B-Compatible 10GBASE-SR SFP+ Transceiver for professional networking or ergonomic workstation applications.

Quick answer: JD092B-ST provides a 10GbE 10GBASE-SR link over multimode fibre through LC duplex.

Best forShort-range 10GbE uplinks in compatible HPE equipment, with reach up to 300m over suitable multimode fibre.

Check before orderingConfirm HPE JD092B coding, SFP+ host support, 850nm multimode fibre, LC duplex connectors and required distance.

Answers before you buy

Frequently asked questions

What is StarTech JD092B-ST?

It is a HPE-compatible multimode SFP+ transceiver that provides a 10GbE 10GBASE-SR link over multimode fibre through LC duplex.

Which connections or mounting method are provided?

SFP+ slot to LC duplex fibre

What performance is specified?

10GBASE-SR; up to 10.31Gbps; 850nm; multimode fibre; up to 300m

Does it require power?

Less than 1.3W

Is JD092B-ST an SR or LRM transceiver?

It is a 10GBASE-SR multimode transceiver operating at 850nm with a stated maximum distance of 300m.

What MTBF is specified?

The official model information lists an MTBF of 145,858,878 hours.

What should be checked before ordering?

Confirm HPE JD092B coding, SFP+ host support, 850nm multimode fibre, LC duplex connectors and required distance.

What warranty applies?

JD092B-ST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturer's terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(JD092B-ST)

Features & highlights

Why choose JD092B-ST?

?Purpose-built designSFP+ slot to LC duplex fibre

?Specified performance10GBASE-SR; up to 10.31Gbps; 850nm; multimode fibre; up to 300m

?Power arrangementLess than 1.3W

?Construction and deploymentHot-swappable steel SFP+ module with DDM

?Key capabilityCorrectly specified as 10GBASE-SR at 850nm for multimode links up to 300m.

?Installation advantageDesigned, programmed and tested for HPE JD092B host compatibility.

Compatibility reminder: Confirm HPE JD092B coding, SFP+ host support, 850nm multimode fibre, LC duplex connectors and required distance.

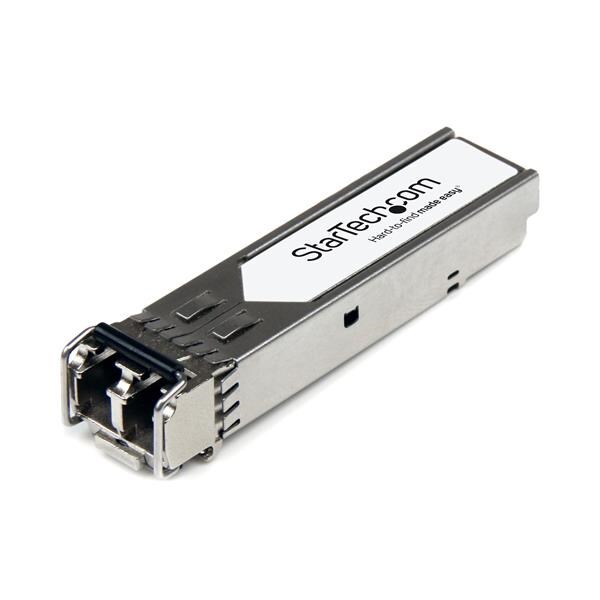

StarTech JD092B-ST HPE JD092B-Compatible 10GBASE-SR SFP+ Transceiver product image

Technical specifications

JD092B-ST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Hardware
Compatible Brand	HPE
Industry Standard	IEEE 802.3ae 10GBASE-SR
Material	Steel
Performance
Maximum Data Transfer Rate	10.31Gbps
Fibre Type	Multimode
Wavelength	850nm
Maximum Distance	300m
DDM	Yes
Power Consumption	<1.3W
MTBF	145,858,878 hours
Connectors
Connector A	SFP+ slot
Connector B	LC duplex fibre
Environmental
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
Physical Characteristics
Dimensions	58.4 × 13.9 × 14mm
Weight	20g
What's in the Box
Included	1 × SFP+ transceiver module
