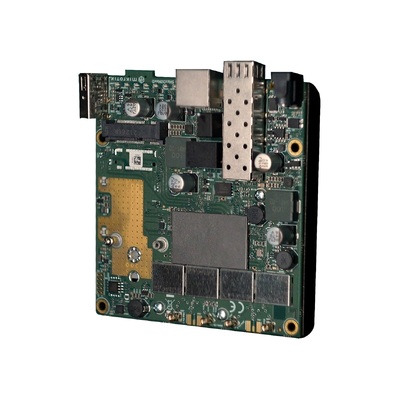

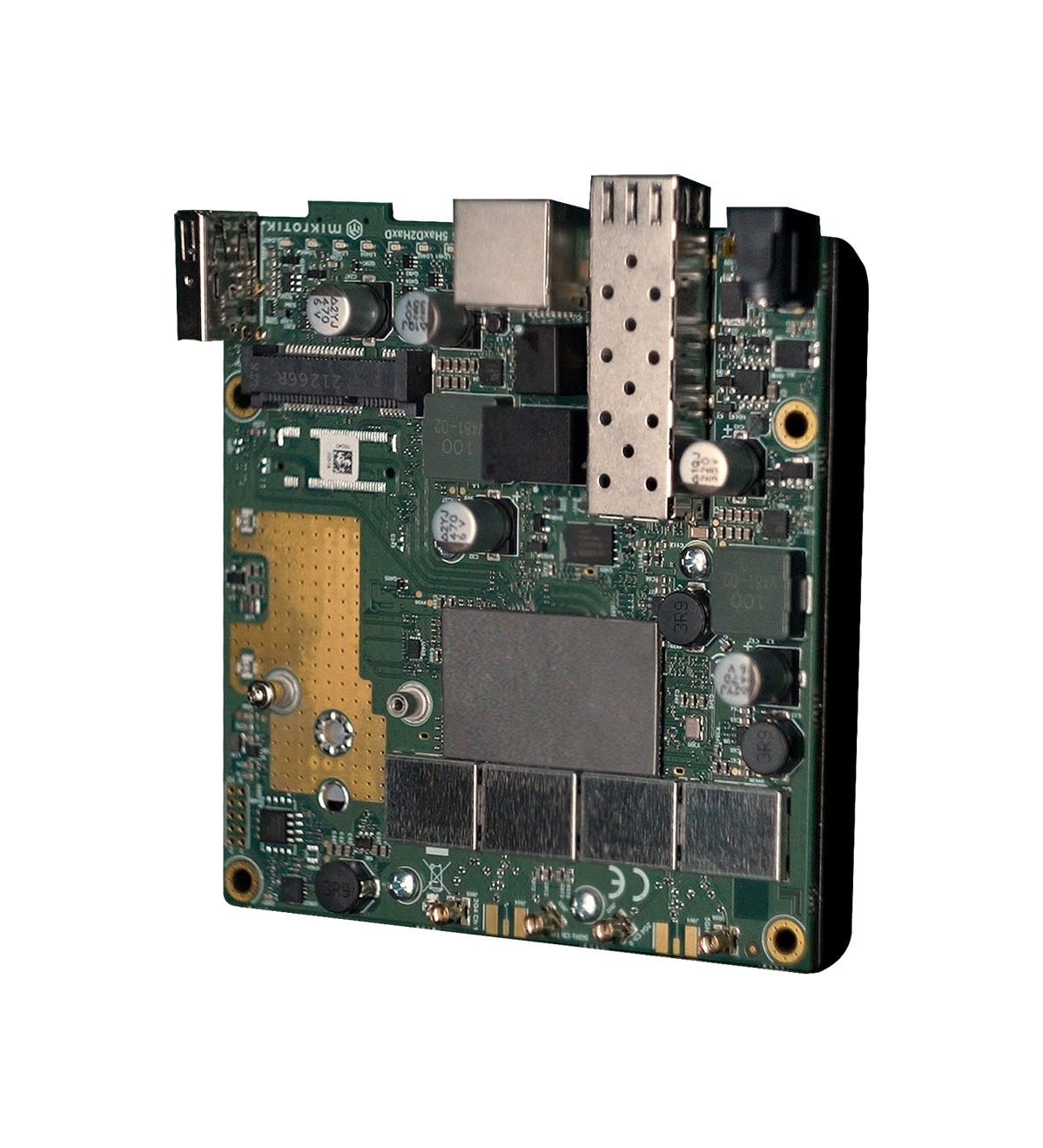

MIKROTIK  L23UGSR-5HaxD2HaxD outdoor Wi-Fi 6 access point with handy MMCX connectors

L23UGSR-5HaxD2HaxDBuild your own custom outdoor Wi-Fi 6 access point or CPE! This modular wireless router comes with handy MMCX connectors, allowing you to create versatile omnidirectional access points and powerful point-to-point links.

Remember the thrill of crafting your custom solutions with our RouterBoard series? Get ready for even more DIY achievements: we’re refreshing the RB product line with Wi-Fi 6!

The new L23UGSR is a dual-band Wi- Fi 6 upgrade of the popular RB922 DIY router. You can use it to build custom low-cost outdoor access points or CPEs – for your home, office, homelab needs or even to launch your own products, such as smart vending machines or ticket stations! Thousands of people across the globe choose the RouterBOARD series to build their products because MikroTik offers no subscriptions, no paywalls, no weird licensing or royalty deals... You buy it – you own it!

This modular board features a modern Qualcomm Maple CPU based on the ARM architecture, a USB port for extra storage or other needs, Gigabit Ethernet with PoE-in, 2.5 Gigabit SFP for fiber connectivity, and a free miniPCIe slot that allows further customization. You could, for example, add an LTE modem for a mobile internet backup – we’ve added a NanoSIM slot on the bottom! But there are other options, like adding a gateway for LoRa IoT setups, such as our R11e-LR8!

A powerful dual-band, dual-chain Wi-Fi 6 radio offers increased speed, stability, security, roaming, power management, and other features, compared to the previous wireless protocols for distances up to 30 kilometers.*

The four MMCX connectors enable further customization with an endless variety of antennas you could use. Add a HGO-antenna-OUT and you’ve got yourself an excellent omnidirectional AP… or try the mANT30 PA antenna to create a powerful long-range point-to-point link!

If you’ve read this far, here’s a little bonus feature: we’ve kept the good old beeper for various alarms or creative outputs.

*It’s important to note that while longer links are feasible, their reliability may vary. Additionally, the distance achievable greatly depends on the antenna selected for use.

(L23UGSR-5HaxD2HaxD)

Specifications

Details
Product code L23UGSR-5HaxD2HaxD
Architecture ARM
CPU IPQ-5010
CPU core count 2
CPU nominal frequency 800 MHz
RouterOS license 4
Operating System RouterOS v7
Size of RAM 256 MB
Storage size 128 MB
Storage type NAND
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C
Suggested price $99.00

Powering

Details
Number of DC inputs 2 (PoE-IN, DC jack)
DC jack input Voltage 12-28 V
Max power consumption 25 W
Max power consumption without attachments 12 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 18-28 V

Wireless specifications

Details
Wireless 2.4 GHz Max data rate 574 Mbit/s
Wireless 2.4 GHz number of chains 2
Wireless 2.4 GHz standards 802.11b/g/n/ax
Wireless 2.4 GHz chip model IPQ-5010
Wireless 2.4 GHz generation Wi-Fi 6
Wireless 5 GHz Max data rate 2400 Mbit/s
Wireless 5 GHz number of chains 2
Wireless 5 GHz standards 802.11a/n/ac/ax
Wireless 5 GHz chip model QCN-6102
Wireless 5 GHz generation Wi-Fi 6

Ethernet

Details
10/100/1000 Ethernet ports 1

Fiber

Details
SFP ports 1 (2.5G supported)

Peripherals

Details
Number of SIM slots 1 Modem (Nano SIM)
MiniPCI-e slots 1
Number of USB ports 1
USB Power Reset Yes
USB slot type USB type A
Max USB current (A) 1.5

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, ROHS
SKU L23UGSR-5HaxD2HaxD
Brand MIKROTIK

Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

MIKROTIK L23UGSR-5HaxD2HaxD outdoor Wi-Fi 6 access point with handy MMCX connectors

Model # L23UGSR-5HaxD2HaxD

  • SKU: L23UGSR-5HaxD2HaxD

$178.20
Sold Out

Pre-ordering not available for this item.
