StarTech 2Port PCIe SATA III eSATA Controller - PEXESAT322I

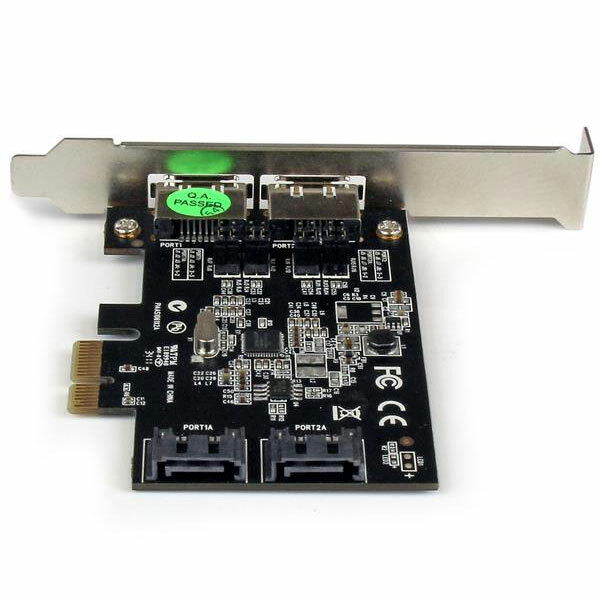

Two-port PCIe SATA III controller that can be jumper-configured for internal SATA, external eSATA or one of each.
Frequently asked questions
What does PEXESAT322I do?
Adds two selectable 6Gbps SATA III connections through a PCIe x1 slot, with port-multiplier support and no hardware RAID.
Who is this product best for?
Desktop storage expansion, external eSATA enclosures, optical drives and systems needing flexible internal or external SATA ports.
What should I check before ordering?
Only two ports can be active at once. Set the onboard jumpers for internal or external use and confirm port-multiplier and OS compatibility.
Does it require drivers or software?
Drivers support the Windows and Windows Server versions listed in the specifications; confirm boot and port-multiplier support.
What is included in the package?
PCIe SATA controller, low-profile bracket, driver CD and instruction manual.
What is the key installation requirement?
Select the two active ports with the onboard jumpers before installation, then fit the correct bracket and connect compatible SATA or eSATA devices.
Is it suitable for an Australian setup?
Yes. DeviceDeal supplies the Australian-market version; always confirm the available ports, power and system compatibility for your installation.
What warranty applies?
PEXESAT322I carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.
Planning a broader setup? Browse the DeviceDeal buying guides. View the DeviceDeal product page.
(PEXESAT322I)
Why choose PEXESAT322I?
PEXESAT322I specifications
Exact-model specifications for compatibility checking.
| Warranty Information | |
|---|---|
| Warranty | 2 Years |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | ASMedia - ASM1061 |
| Interface | eSATA & SATA |
| Port Style | Integrated on Card |
| Ports | 2 |
| Performance | |
| ATAPI Support | Yes |
| Bootable | Yes |
| LBA support | 48-bit |
| Number of Drives Supported Through Port Multiplier | 1 to 8 |
| Number of Ports That Support Port Multiplier | 2 (can use 2 PM at a time) |
| Port Multiplier | Yes |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 2 - eSATA (7 pin, Data) Plug |
| Internal Ports | 2 - SATA (7 pin, Data) Plug |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10; Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 |
| Environmental | |
| Humidity | 5% ~ 85% RH |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Physical Characteristics | |
| Product Height | 0.8 in [2 cm] |
| Product Length | 4.8 in [12.1 cm] |
| Product Width | 3.6 in [92 mm] |
| Weight of Product | 1.7 oz [48 g] |
| Packaging Information | |
| Package Height | 1.2 in [30 mm] |
| Package Length | 5.7 in [14.4 cm] |
| Package Width | 6.8 in [17.3 cm] |
| Shipping (Package) Weight | 5.4 oz [152 g] |
| What's in the Box | |
| Included in Package | 1 - PCIe SATA Controller |
| Additional Items | 1 - low-profile bracket; 1 - driver CD; 1 - instruction manual |
Sources: supplied product file, DeviceDeal product page and official StarTech.com specifications. Product appearance and specifications may change; confirm critical deployment requirements before ordering.
| SKU | PEXESAT322I |
| Barcode # | 65030848428 |
| Brand | Startech |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000350000m3 |
This Australian-version product is supplied by DeviceDeal and is covered by the official StarTech.com 2 years manufacturer warranty in Australia.
- Keep your DeviceDeal tax invoice as proof of purchase.
- Coverage is subject to StarTech.com warranty terms, eligibility and product assessment.
- Warranty service does not replace rights that may apply under Australian Consumer Law.
