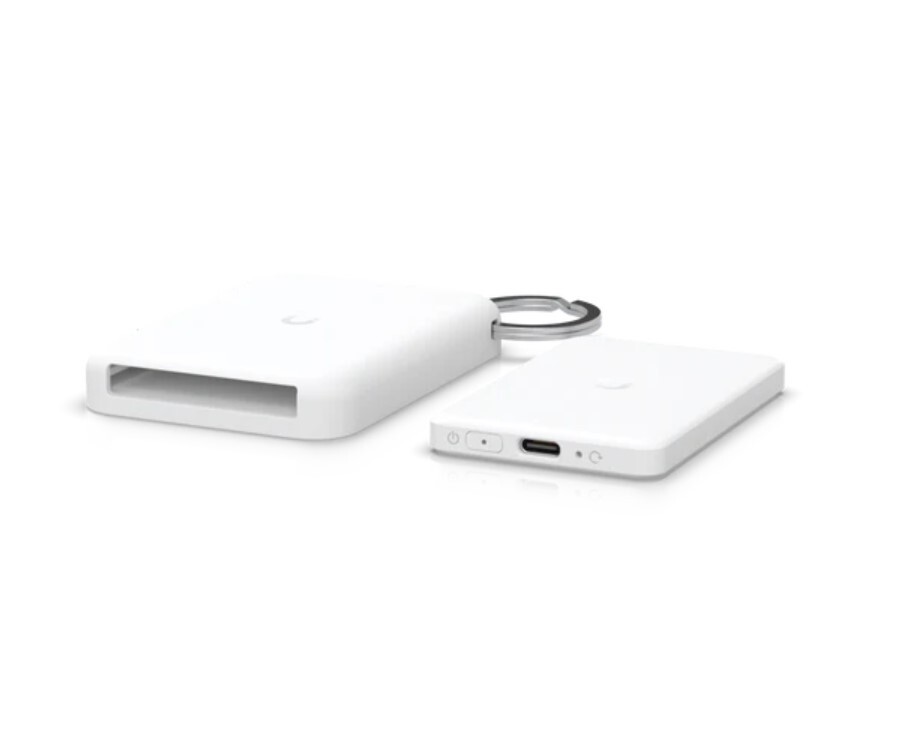

A portable spectrum analyzer designed for the WiFiMan iOS and Android mobile app.

2.4 GHz and 5 GHz unlicensed band scanning

240 minutes continuous scanning battery life

BLE smartphone pairing with USB-C charging port

iPhone Magsafe attachable support*

_{*A mag-safe case is required to attach this device to an iPhone.}

Ubiquiti WM-W UniFi WiFiMan Wizard Portable Spectrum Analyzer A portable spectrum analyzer designed for the Ubiquiti Unifi WiFiMan iOS and Android mobile app. Unifi WiFiMan Features: 2.4 GHz and 5 GHz unlicensed band scanning 240 minutes continuous scanning battery life BLE smartphone pairing with USB-C charging port iPhone Magsafe attachable support* Works with the Ubiquiti Unifi WiFiman mobile app: Version 0.18.0 for iOS and 1.15.0 for Android and later *A mag-safe case is required to attach this device to an iPhone Mechanical Dimensions 78.5 x 50.5 x 7.9 mm Weight 32 g (1.1 oz) Enclosure material Plastic Weatherproong IP55 Hardware Managementinterface Bluetooth Power method Li-ion battery Power supply Rechargeable Li-ion battery, 3.7V DC, 300mAh Max. power consumption 32.4mW Charger voltage USB-C, 5V DC/1A LED White/blue/red Buttons (1) Power (1) Factory-reset Operating temperature 0 to 40° C Operating humidity 10 to 90% noncondensing Certications CE, FCC, IC SSID Scan Frequency range 2.4 to 2.5 GHz 5.15 to 5.85 GHz Amplitude range -96 dBm to 0 dBm Amplitude resolution 1 dBm
